Saw-Spindle Moulder
B3 / B3 e-classic
Adjusting the moulding height:
Adjust the moulding height with the handwheel.
• Clockwise: higher
• Anti-clockwise: lower
Adjust the moulding height only as high as required.
Adjusting the moulding angle:(* not available with e-
classic)
1. Release the clamping lever.
2. Adjust the moulding angle with the handwheel:
• Clockwise: towards 90°
• Anti-clockwise: towards 45°
3. Read the moulding angle from the scale.
4. Lock the clamping lever..

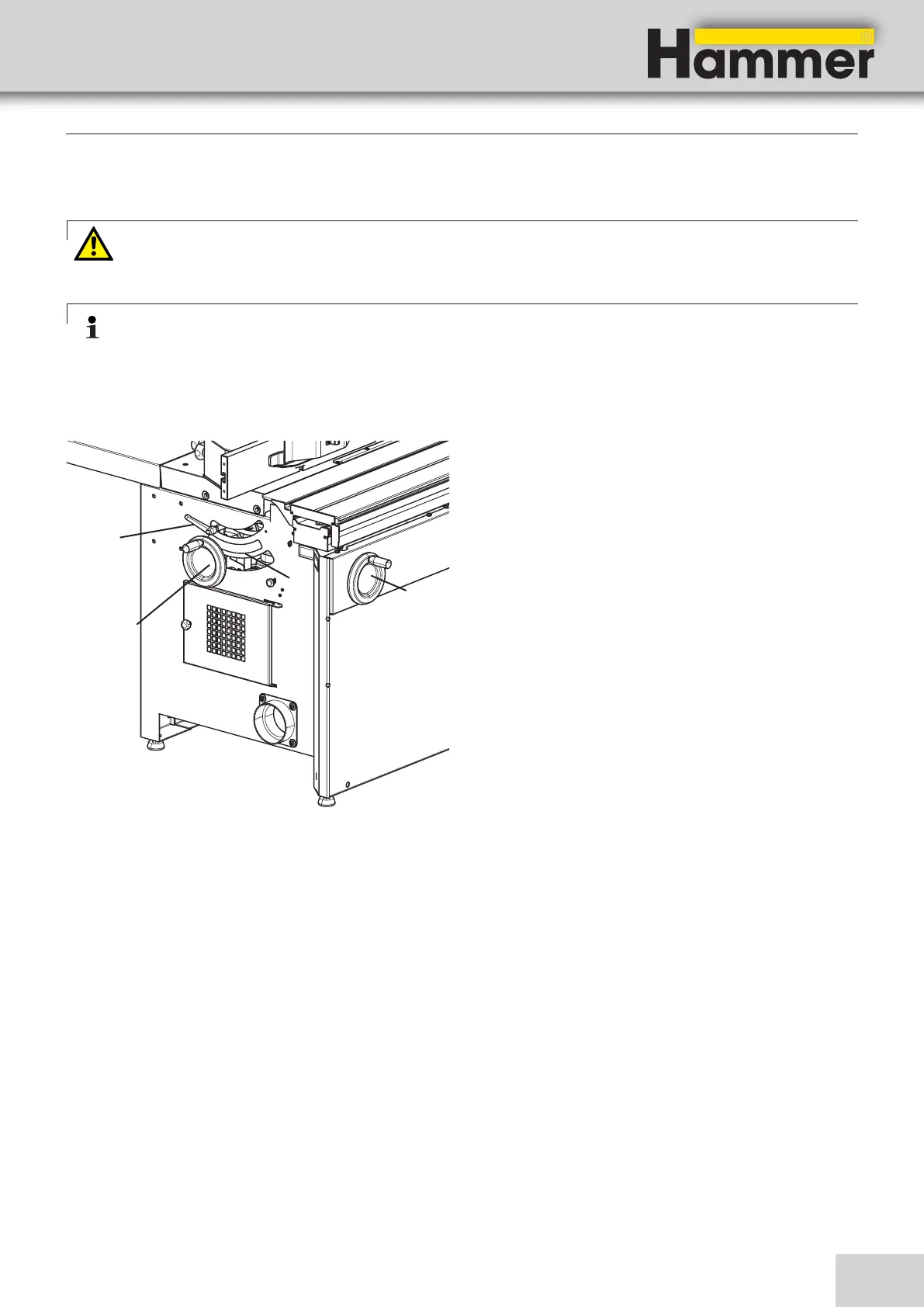

!Handwheel - Spindle moulder height adjustment
"Clamping lever
#Scale - moulding angle specification
$Handwheel - Spindle moulder angle adjustment
Making adjustments and preparations
9.3 Adjusting the moulding height/moulding angle
Fig. 9-2: Adjusting the moulding angle
Warning! Risk of injury!
Adjustments to the machine or tool replacement may only be conducted once the machine has stopped.
Note: Important accessories - Digital clock
The digital clock is built into the height adjustment system handwheel
The digital clock allows precise settings to a tenth of a millimeter
See the Hammer catalogue
