Saw-Spindle Moulder
B3 / B3 e-classic
Setting up the machine
Digital clock
Order No. 01.1.200 (Display in „mm“)
01.2.200 (Display in „inch“)
System handwheel
Order No. 12.1.311

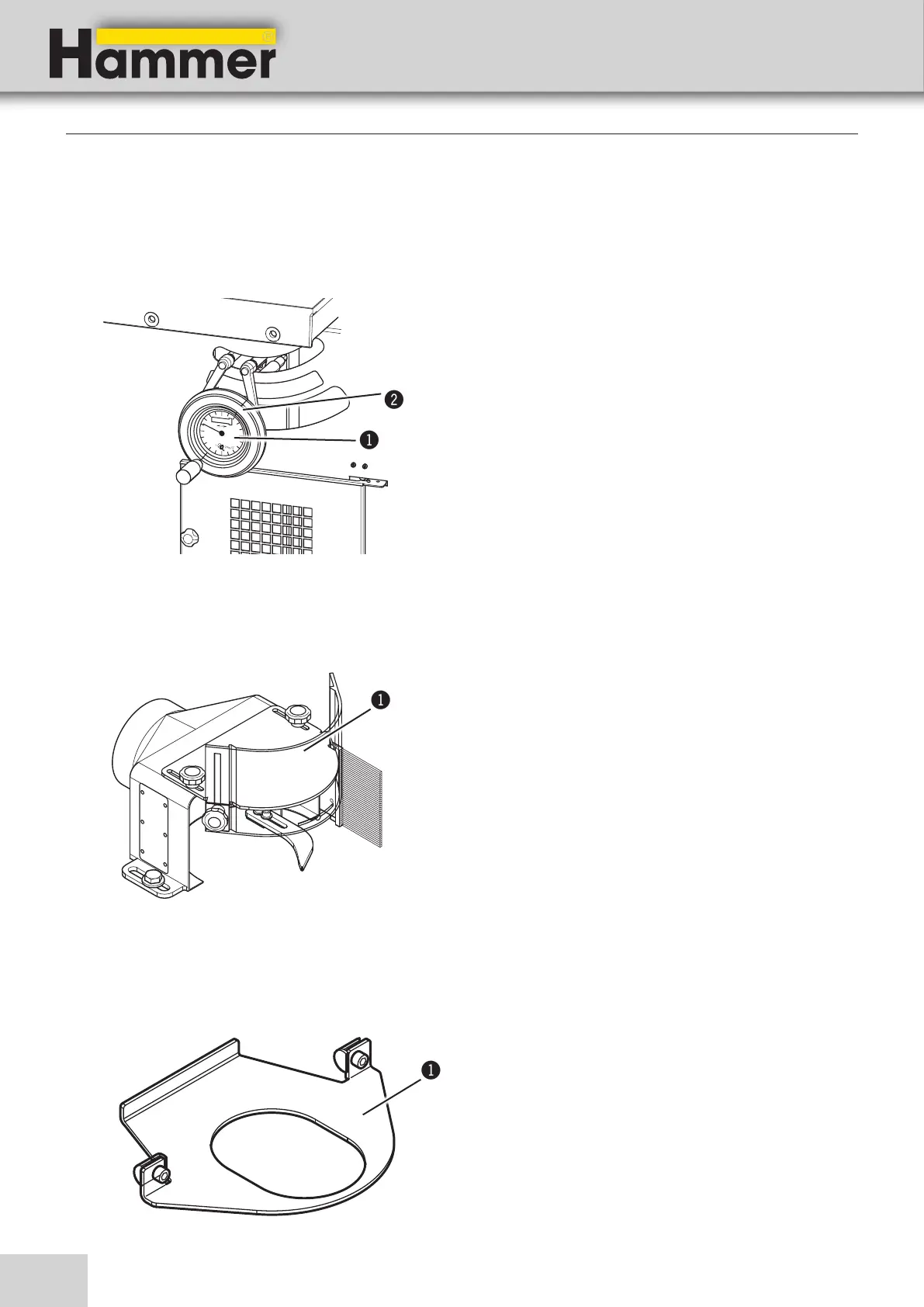

Fig. 5-12: Digital clock
The digital clock is built into the height adjustment system
handwheel.
Adjustments to 1/10th mm are possible with the digi-
tal clock indicator (assembly instructions „Digital clock
indicator“).
!Digital clock
"System handwheel
EURO Curve moulding guard (ring guard)
Order No. 400-610
Fig. 5-13: EURO Curve moulding guard (ring guard)
For curved moulding tasks with the dust extraction hood
for tools with a diameter of up to 180 mm.
!EURO Curve moulding guard (ring guard)
Workpiece feed guide for the EURO Curve moulding guard
Order No. 400-611
Fig. 5-14: Workpiece feed guide
Appropriate for tooling Ø 100 – 160 mm.
Smallest possible workpiece inner radius r = 160 mm.
!Workpiece feed guide
