52
!
"
#
$
%
&
Saw-Spindle Moulder
B3 / B3 e-classic
Required tools:
• Hex key 5 mm
• Special spanner
Disassembling the scoring blade
1. Prepare to change tooling.
2. Hold the scoring flange with the special spanner.
3. Loosen the flat-head screw anti-clockwise with an
allen key.
4. Place the scoring blade onto the scoring arbor.
5. Pull the scoring blade from the arbor.
6. Turn the lock washer to the right until it stops.
! Lock washer
@ Scoring arbor
# Scoring blade
$ Scoring flange
% Flat-head screw
& Special spanner
Making adjustments and preparations
Assembling the scoring blade
1. Prepare to change tooling.
2. Turn the lock washer to the left as far as it goes.
3. Clean the scoring arbor thoroughly.
4. Place the scoring blade onto the scoring arbor.
5. Fit the scoring flange on and hold in place with the
special spanner.
6. Tighten the flat-head screw clockwise with an allen
key;
8.12 Scoring blade
8.12.1 Assembling the scoring blade

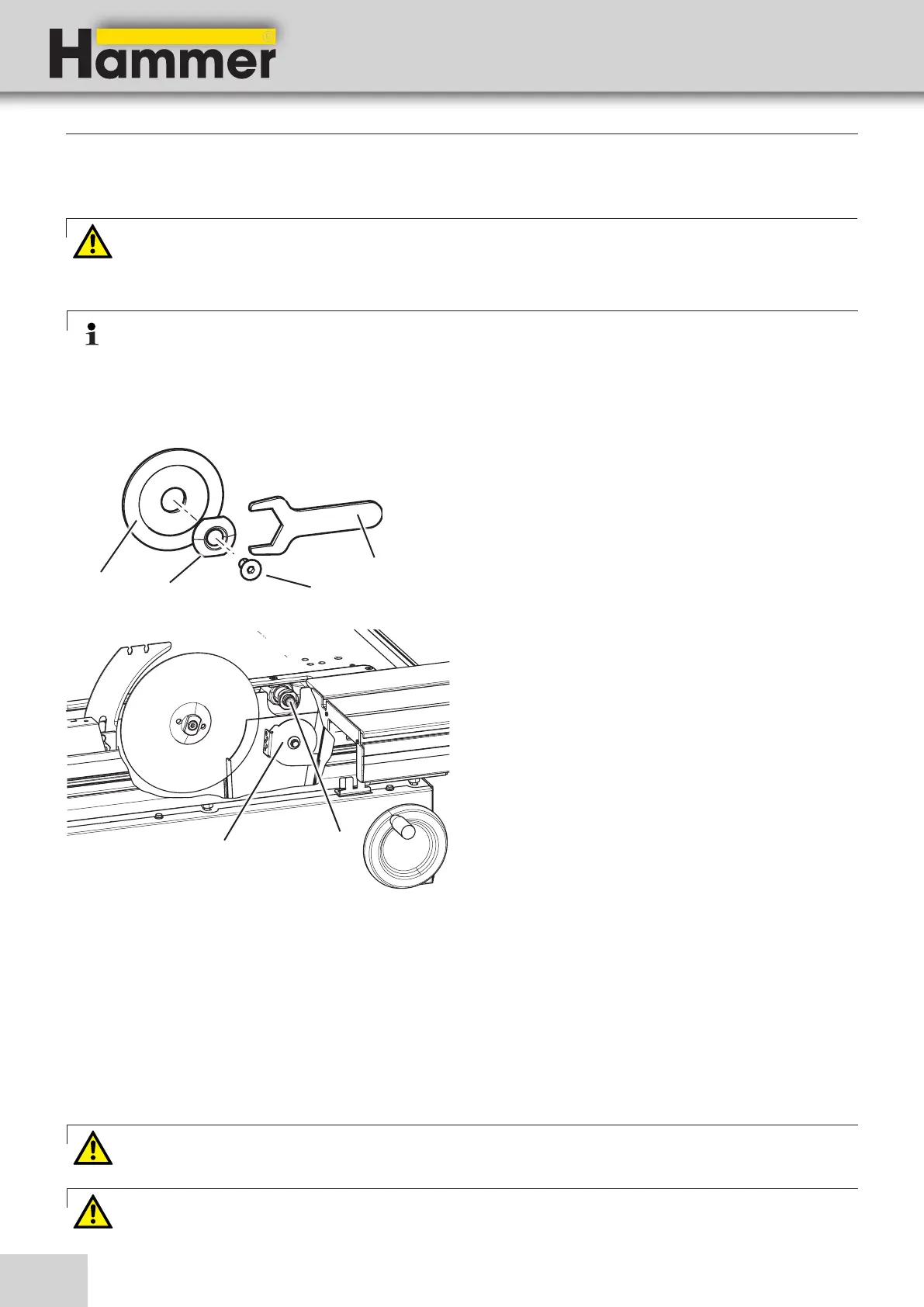

Fig. 8-32: Lock washer/Scoring arbor
Attention! Minimum tightening torque: 20 Nm!
Warning! Risk of injury!
Be wary of sharp edges to avoid cutting yourself, in particular when changing the tooling.
Note:
We recommend that only original Hammer tools are used (Hammer catalogue).
For authorised scoring tools see the Technical data section.
Attention! The scoring flange and flat-head screw have to be removed when operating without a scoring unit!
