Hammer B3 User Manual

17
A1
C3
B
C2
C1
D
A2
C4
E
F
Saw-Spindle Moulder
B3 / B3 e-classic
Standard
B3 perform
Option
B3 perform
Machine
Sliding table length A
2500mm -
Sliding table travel distance A1
1924 mm -
Sliding table travel distance A2
1974 mm -
total length A1 + B + A2
4919 mm -
Length: Machine table + bar B
1021 mm
Overall width C1
1034 mm 1474 mm
Overall width C2
892 (mm 1743 mm
Overall width C3
1718 (2625) mm
Overall width C4
1280 mm
Total height / Working height (approx.) 1555 / 888 mm
Rip capacity D
800 mm 1250 mm
Width of sliding table E
290 mm
Wide additional table F
230 mm
Net weight *) 500 kg
Machine including packaging
Length x Width **) 2300 x 1200 mm
Height 1200 mm
Weight (approx.)* 570 kg
*) with average-sized equipment

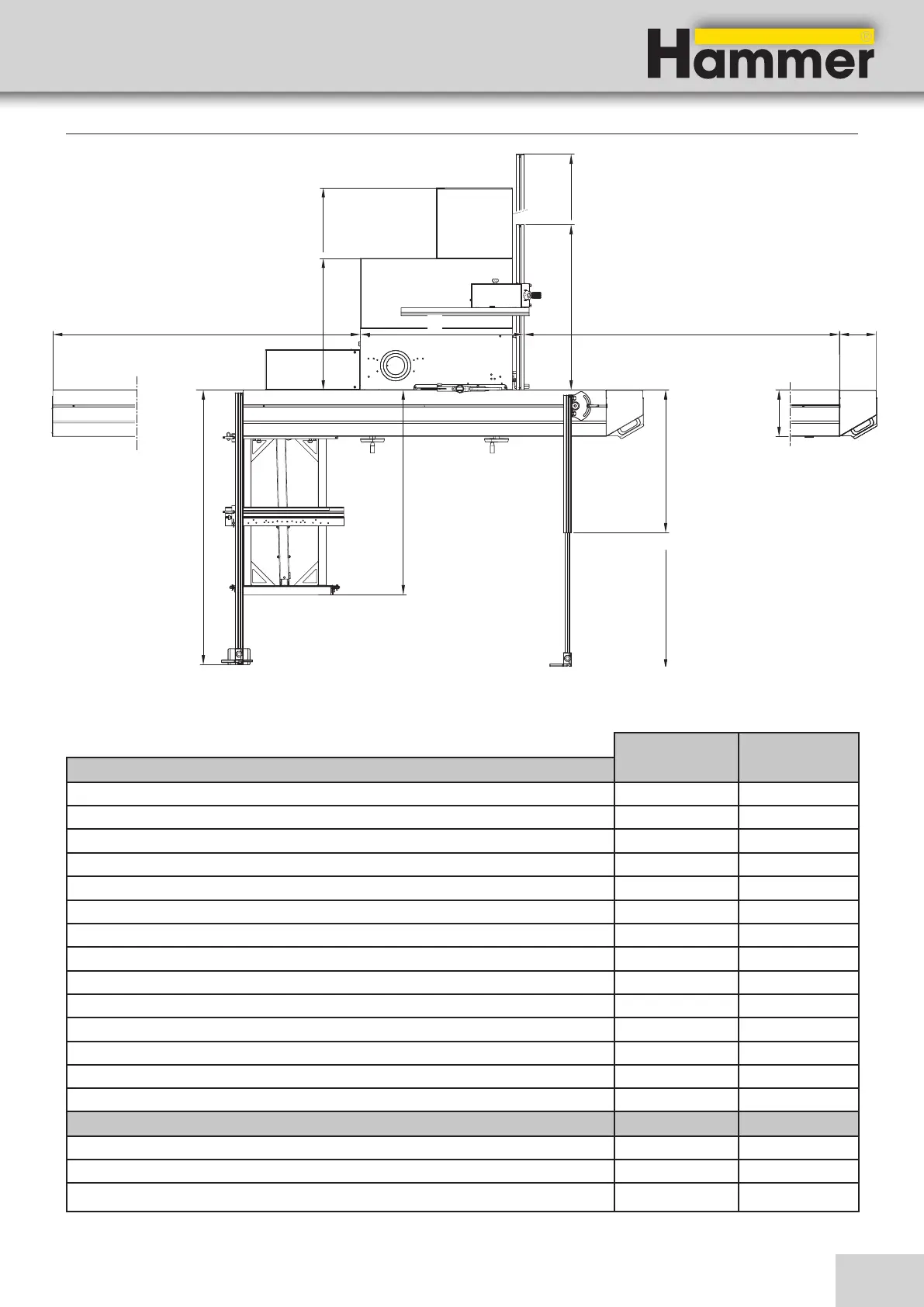

Fig. 4-3: Dimensions B3 Perform
