31
"
!
90 x 90 mm
70 x 70 mm
40 x 40 mm
950 x 750 x 25 mm
!
"
Saw-Spindle Moulder
B3 / B3 e-classic
6.2.1 Transport with a pallet jack

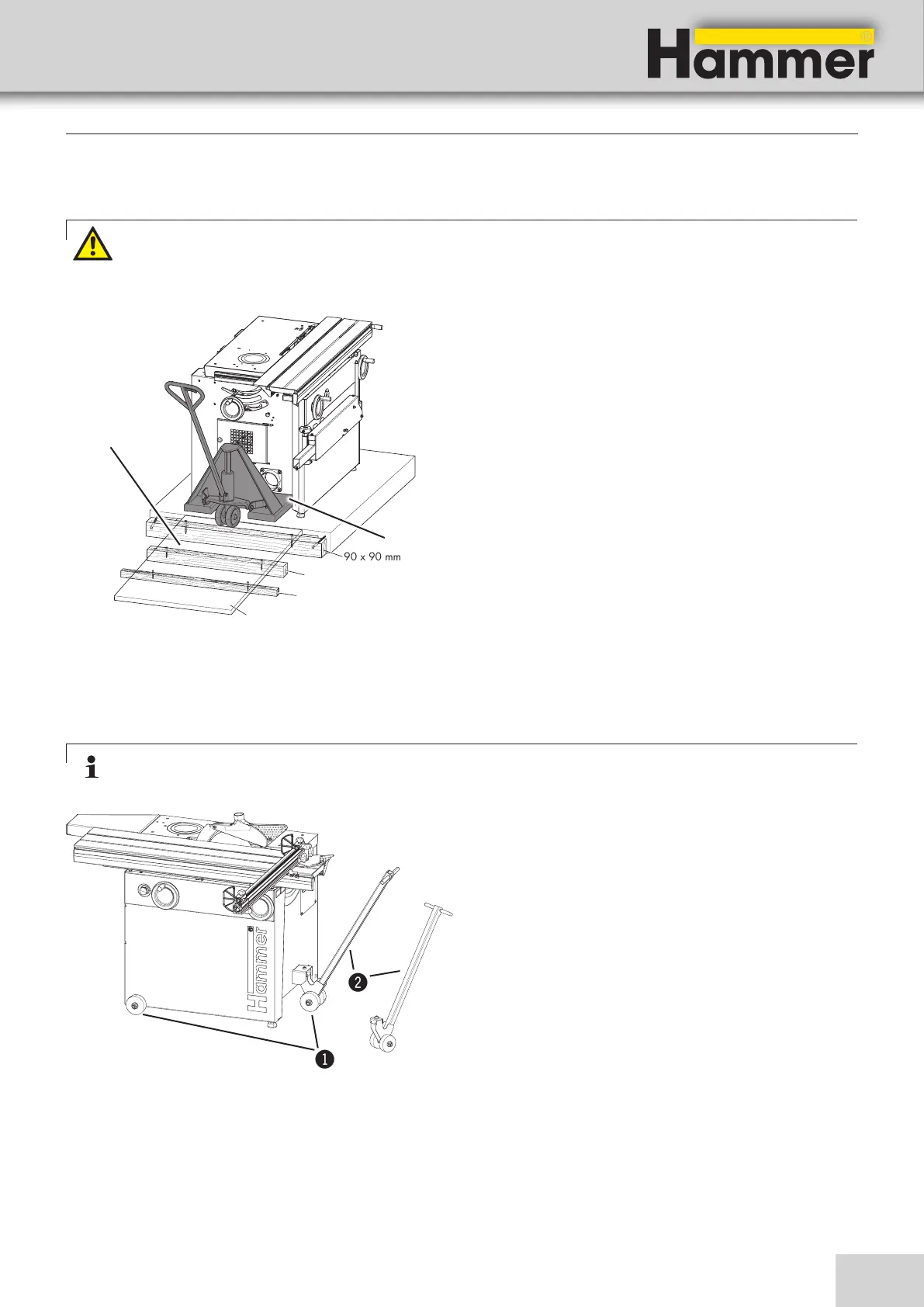

Fig.6-2: Transport with a pallet jack
Use a loading platform similar to the one depicted in the
picture opposite to unload from the pallet.
1. Push the forks under the gaps in the machine frame.
2. Unload the machine from the pallet with the fork
carriage truck.
!Cutout hole in the machine frame
"Unloading ramp
Attention! Heavy dead weights can easily cause an injury
Depending on the equipment, two or three additional helpers may be necessary when unloading.
Transport, packaging and storage
6.2.2 Transport with a rolling carriage
Fig. 6-3: Transporting the machine with the rolling carriage and
lifting bar
The rolling carriage is mounted to the machine base.
!Rolling carriage with 4 rollers
"Lifting bar
Attention: The rolling carriage and the lifting bar (option) facilitate the task of transporting the machine.
