93
!
"
! "
!
Saw-Spindle Moulder
B3 / B3 e-classic
13.9 Professional rip-fence (Option)
13.9.1 Adjusting the circular saw fence guide
1. Switch the machine off and ensure that it cannot be
switched on again.
2. Loosen the locking nut.
3. Adjust the height of the fence with the setscrew.
4. Tighten the lock nut again.
5. Check the height adjustment and readjust if required.
!Setscrew
"Locking nut

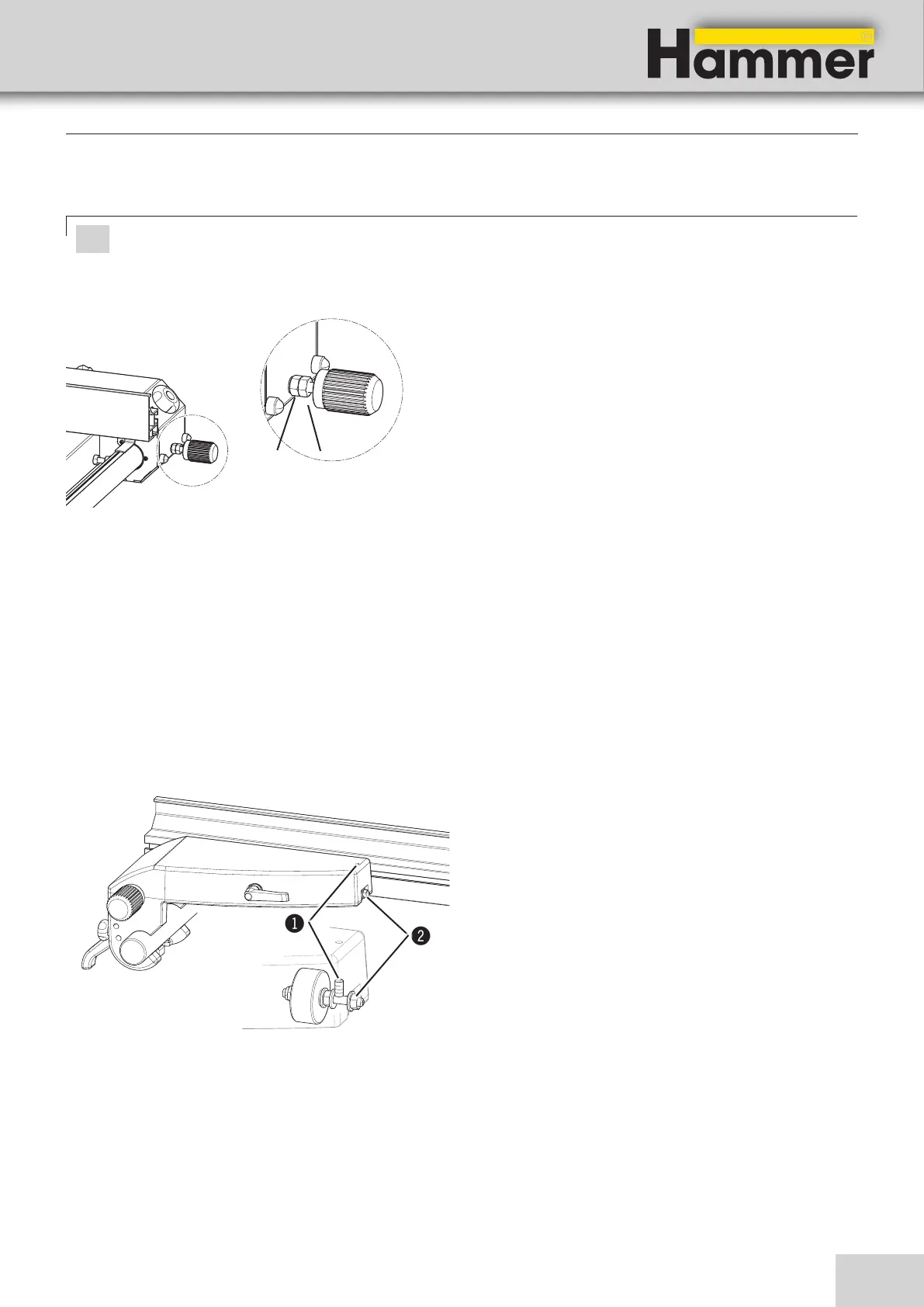

Fig. 13-5: Adjusting the circular saw fence guide
Rip fence winner
1. Switch the machine off and ensure that it cannot be
switched on again.
2. Hold the inner nut tight with a spanner.
3. Loosen the lock nut with a spanner.
4. Turn the inner nut half a turn anti-clockwise.
5. Tighten the lock nut.
6. Check the clamping force and adjust if necessary.
!Nut
"Locking nut
Attention! Risk of material damage!
Only adjust if the clamping force of the parallel cutting fence is not sufficient. If the clamping force is too
great, it will damage the parallel cutting fence and the fence housing.
Fig. 13-4: Adjusting the locking force of the parallel cutting fence
13.8 Adjusting the locking force of the parallel cutting fence
