Hammer B3 - Setting up the Machine; 5 Setting up the machine; 5.1 Overview

22
!
"
#
% $
&
/
!
"
#
$
Saw-Spindle Moulder
B3 / B3 e-classic
Setting up the machine
5 Setting up the machine
5.1 Overview

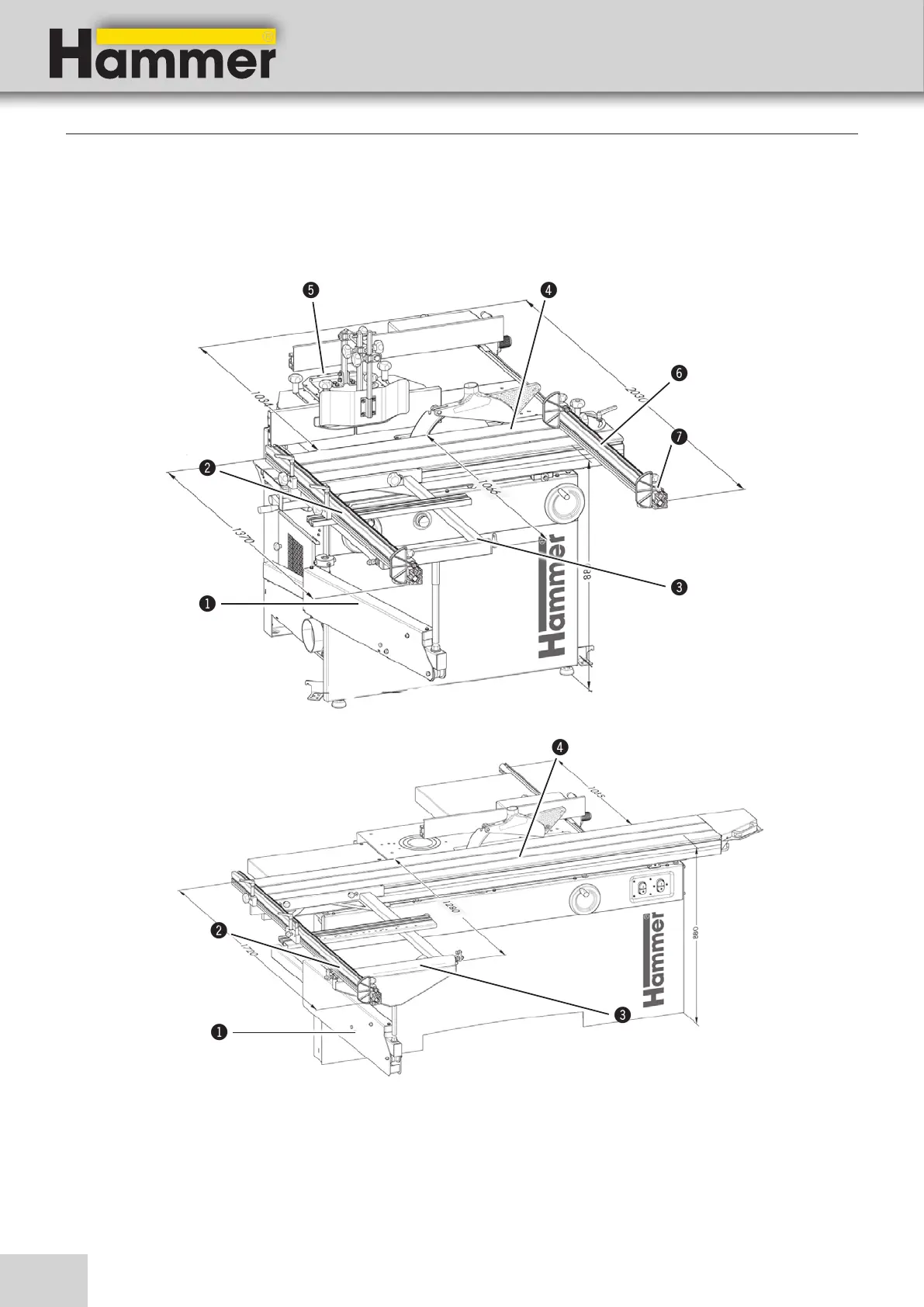

Fig. 5-2: Overview perform
!Outrigger arm
"Crosscut fence (Outrigger)
#Outrigger table
$Sliding table
%Spindle fence
&Crosscut fence (Outrigger)
/Cross stop
Fig. 5-1: Overview basic/winner
