Saw-Spindle Moulder
B3 / B3 e-classic
Maintenance
12.8 Renewing the sliding table scraper blade (ball cage)

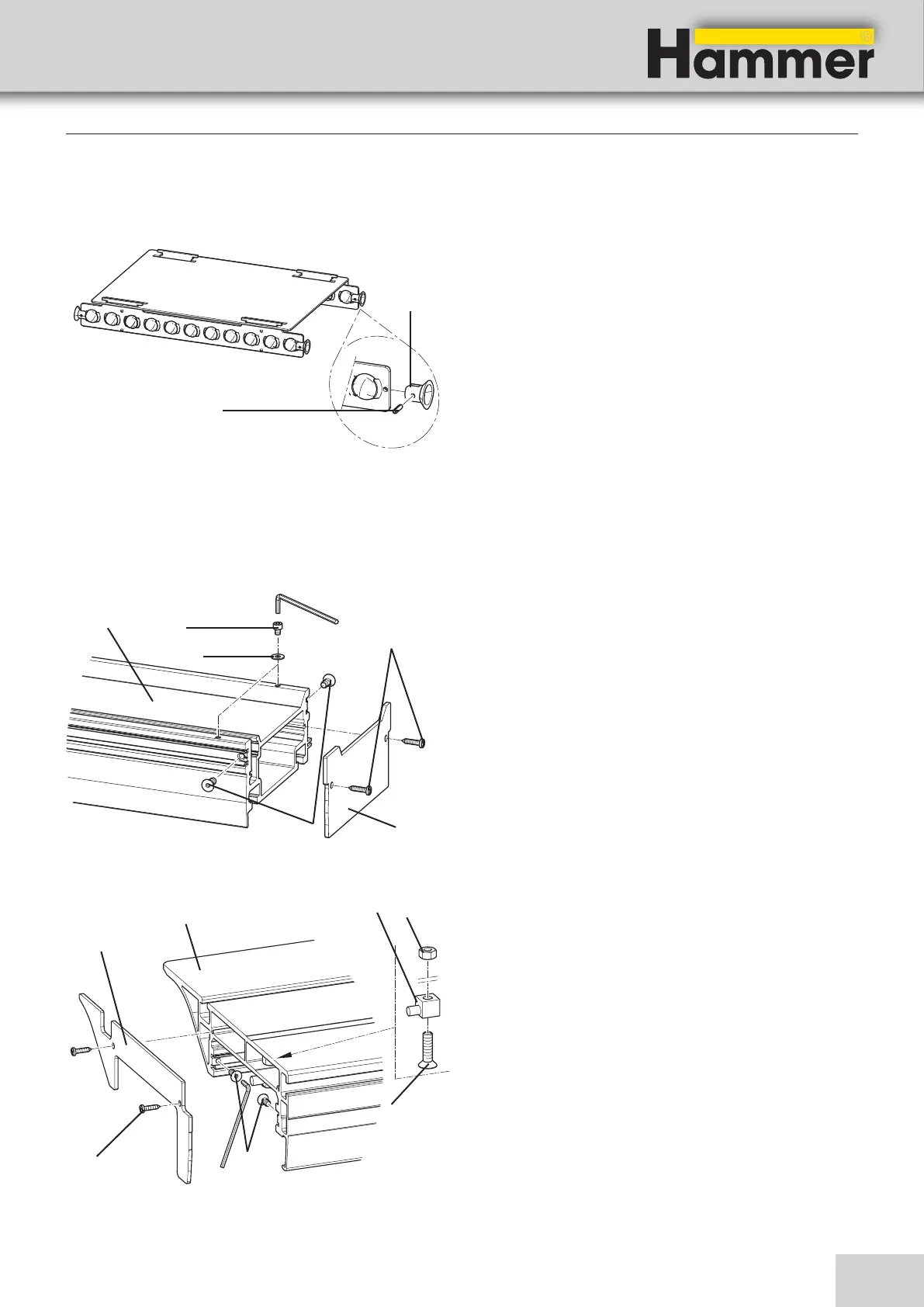

Fig. 12-7: Scraper
1. Switch the machine off and ensure that it cannot be
switched on again.
2. Disassemble the sliding table.
3. Remove the wheel bolts and worn scrapers.
4. Mount the new scrapers and tighten with the wheel
bolts.
5. Assemble the sliding table.
! Bolts
" Scraper
12.9 Disassembling the sliding table
Fig. 12-8: Base
On the base, on the side from which the sliding table
should be pushed from the base:
1. Remove the fillister head screws and the base cover.
2. Remove the socket head cap screws and washers.
3. Remove the flat head screws.
! Base
" Washers
# Socket head cap screws
$ Fillister head screws
% Base cover
& Flat head screws
Fig. 12-9: Sliding table
On the opposite side on the sliding table:
4. Remove the fillister head screws and the sliding table
cover.
5. Remove the flat head screws.
6. Counter hold the hexagon nut and loosen the flat
head screw.
7. Remove the hexagon nut, flat head screw and bea-
ring shaft.
/ Sliding table cover BMFlat-head screw
* Sliding table BNFlat head screws
) Bearing shaft BOFillister head screws
BL Hexagon nut
