Setting up the machine
5.4.3 Circular saw guard
The saw guard has to be installed and set correctly
The saw guard has to be connected to a dust extractor.
Diameter = 50 mm
!Circular saw guard

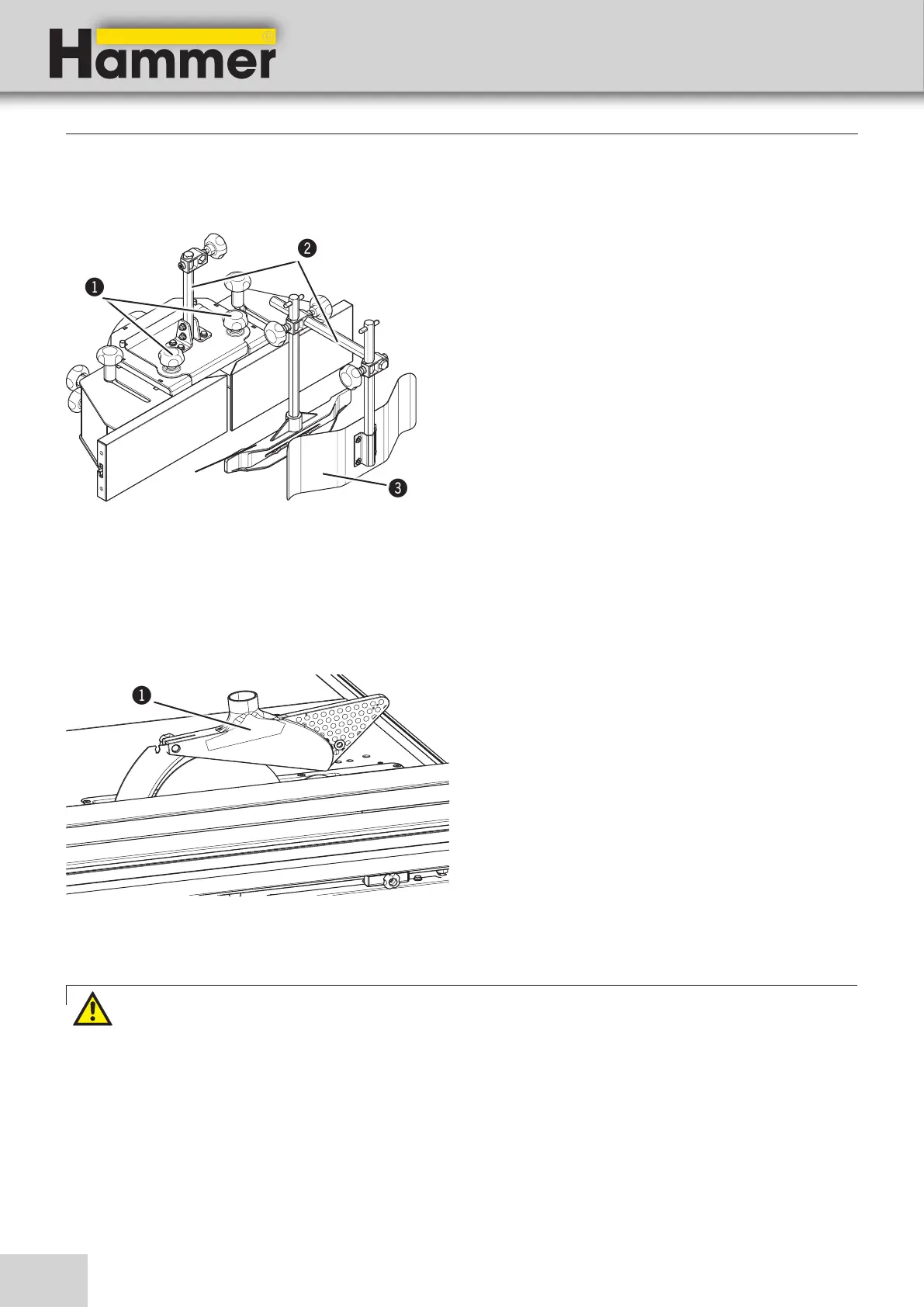

Fig. 5-18: Circular saw guard
5.4.2 Spindle moulder guard attachment
The spindle moulder guard is mounted onto the spindle
moulder fence. It comprises an adjustable rodding, a
pressure shoe and pressure spring.
The individual parts can be adjusted vertically or hori-
zontally with the thumb screw. The vertical pressure shoe
and the horizontal pressure spring are set in such a way
so as to press the workpiece with a slight bias (pressure)
against the table or alternatively the fence boards.
!Thumb screws
"Rodding
#Pressure spring
$Pressure shoe
Fig. 5-17: Spindle moulder guard attachment
Warning! Risk of injury! When working with the circular saw blade, the machine‘s saw blade should be
equipped with a saw guard to avoid injuries
