Saw-Spindle Moulder
B3 / B3 e-classic

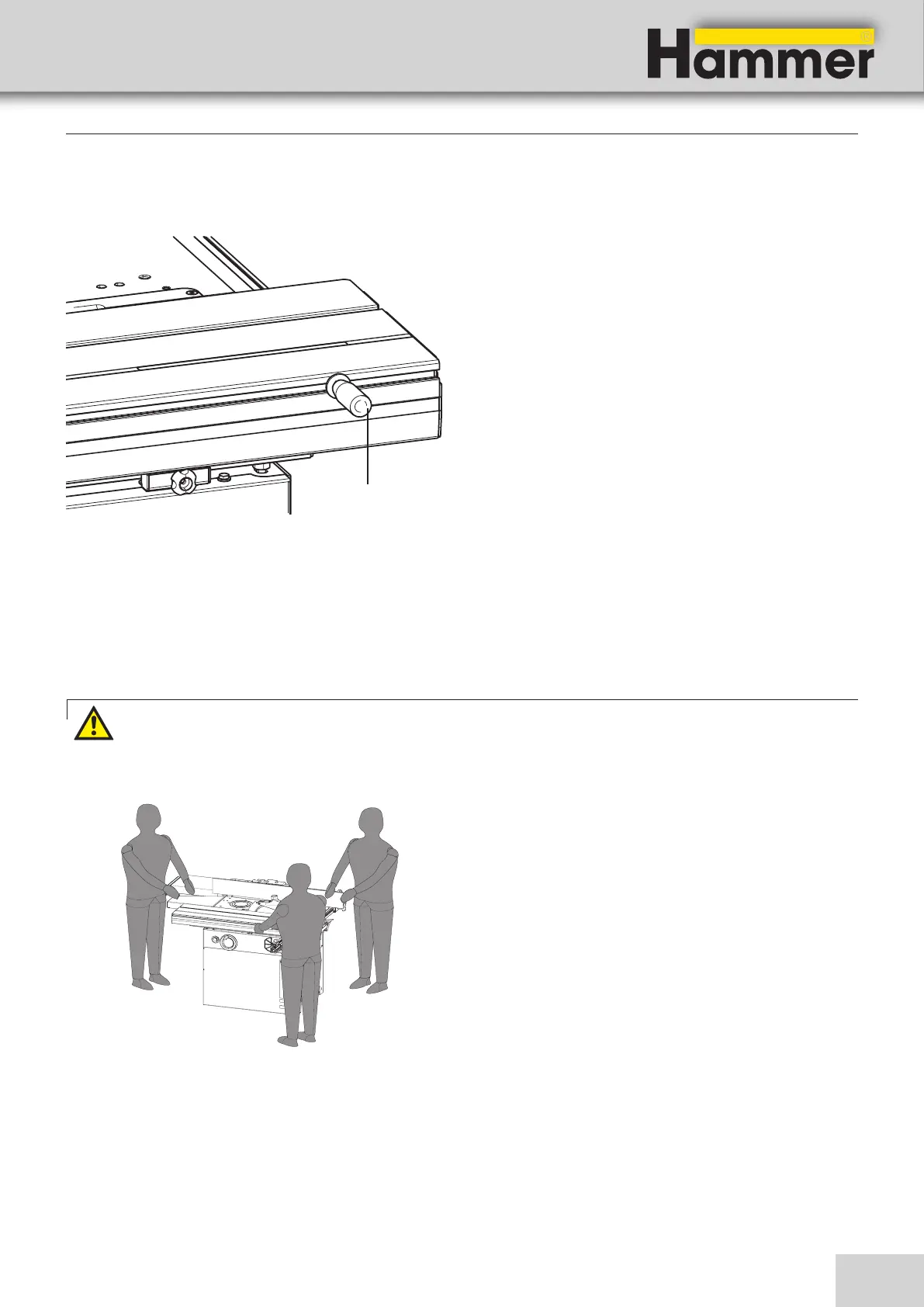

Fig. 10-5: Work stations/Work positions
10.4.1 Work stations
10.4 Working techniques
AP1: Possible work position for an installed unloader.
AP2: Work position to operate with rip fence.
AP3: Main work position for all other operations.
• Risk of injury from workpieces or other workpiece
parts jamming in the machine or being ejected. (e.g.
cutting tools, branches, trimmings).
• Risk of kickback from cut workpiece parts
Therefore, never stand directly in the cutting line of the
saw blade whilst it is operating (in machining or idling
mode)
Warning! Risk of injury!
Danger from ejected tools or workpiece parts
Operation
10.3 Moving the sliding table
Fig. 10-4: Moving the sliding table
To move the sliding table, use:
• the side hand-lever or
• the crosscut fence.
! Side hand lever
