Saw-Spindle Moulder
B3 / B3 e-classic
Making adjustments and preparations
8.12.2 Adjusting the scoring unit

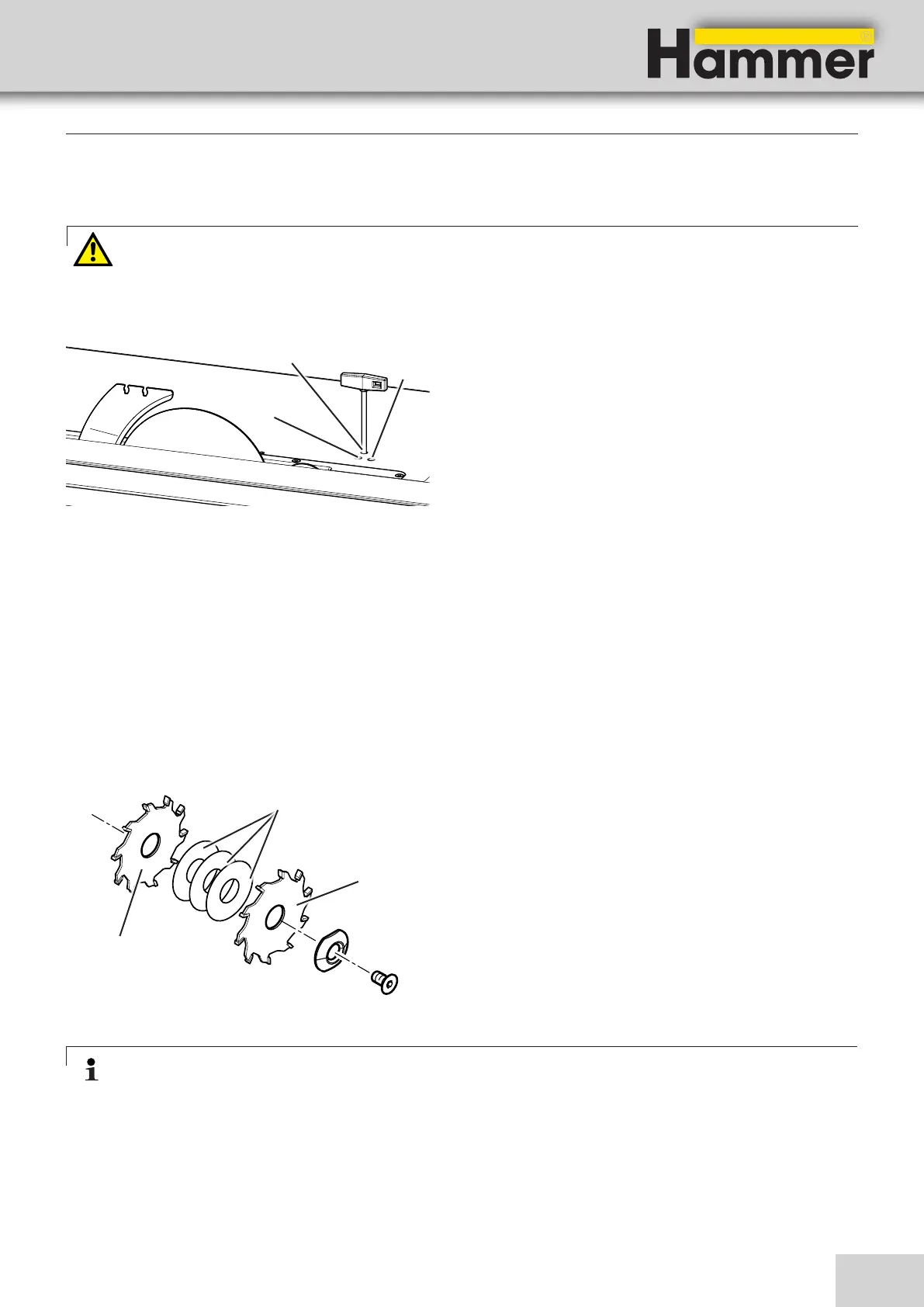

Fig. 8-33: Adjusting the scoring blade
8.12.3 Adjusting the width
The scoring blade consists of two saw blades discs and
several spacer washers.
1. Use as many spacer washers as necessary so as to
attain the required width.
2. Set the scoring blade so that it is centered to the saw
blade.
3. Check the setting by making a sample cut.
!Saw blade discs
"Spacer washers
Attention: The scoring blade has to be 0.1 to 0.2 mm thicker than the saw blade!
Fig. 8-34: Scoring blade „Classic“
The scoring unit is necessary when machining laminated
panels as it produces clean edges.
1. Loosen the clamping screws
2. Adjust the height manually with the setscrew. !
3. Adjust the side manually with the setscrew. "
Set the scoring blade so that it is aligned with the
saw blade.
4. Clamp the clamping screw.
!Setscrew - Height adjustment
"Setscrew - Side adjustment
# Clamping screw
Warning! Risk of injury!
Adjustments to the machine or tool replacement may only be conducted once the machine has stopped.
