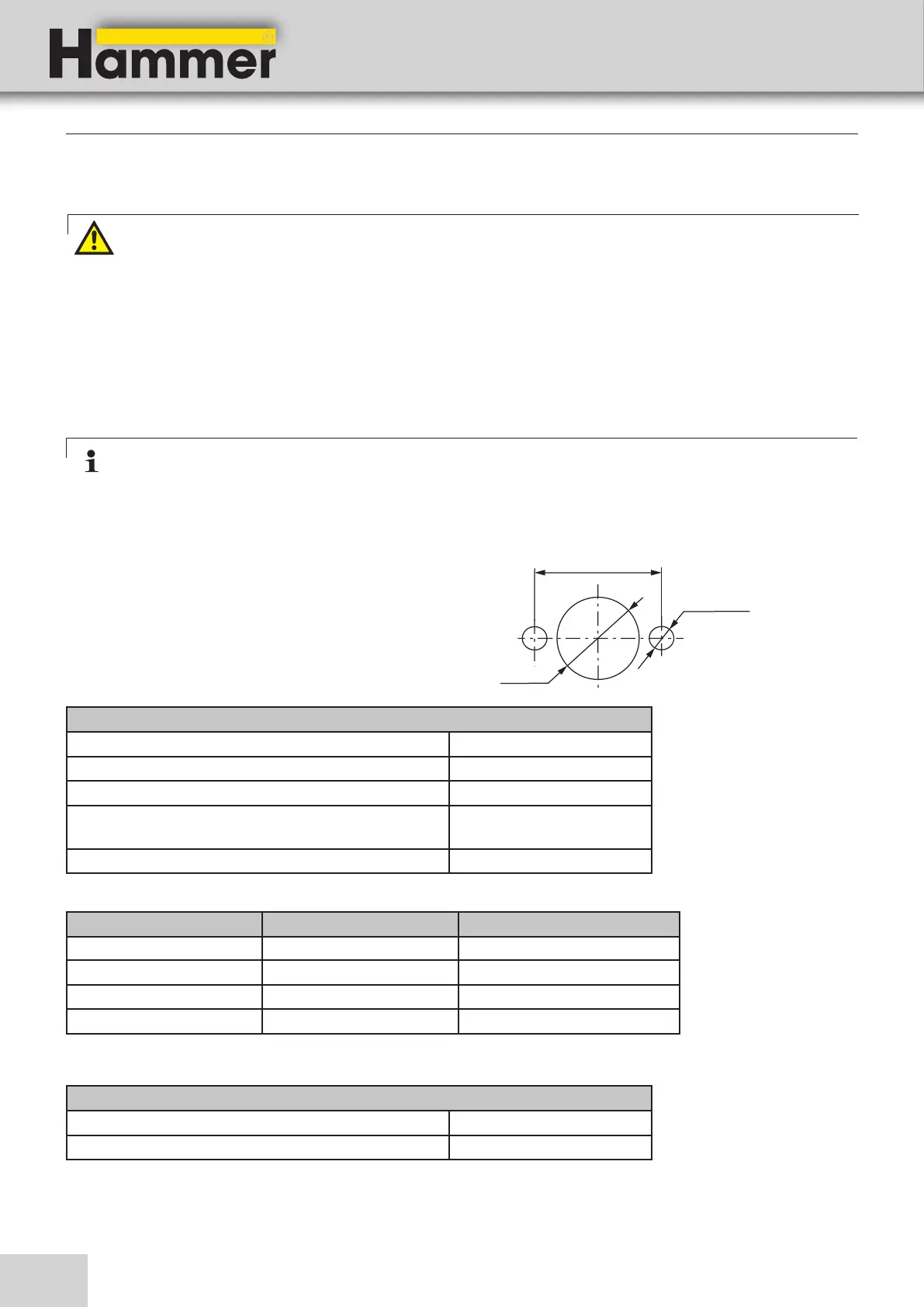

Hammer B3 - 4.7 Tools

20
Ø 58 ± 0,1mm
Ø 8,5 ±0,3 mm
Ø 30 mm
Ø 46,35 ± 0,1mm
Ø 9 ±0,3 mm
Ø 30 mm
Saw-Spindle Moulder
B3 / B3 e-classic
4.7 Tools
Warning! Risk of injury!
Never exceed the maximum speed indicated on the tool!
4.7.1 Saw unit
Only use saw blades
• Which have an authorised speed higher than the speed of the saw arbor
• which conform to DIN EN 847-1 or DIN EN 847-2 standards
Only use grooving tools designed for wood purposes!
Sketches: Saw blade Bore with lug
Note: We recommend that only original Hammer tools are used (Hammer catalogue).
The maximum cutting height is directly related to the following factors:
• Type of wood (hardwood or softwood
• Wood dampness
• Feeding speed
• Saw blades
• The motor power of your machine
Scoring blades Standard (mechanisch) Option (angetrieben)
Diameter 80 mm 100 mm*)
Bore
20 mm 20 mm
Speed 10.000 minˉ¹ 10.000 minˉ¹
Motor power
- 0,65 kW
*) in Kombination mit 300 mm Hauptsägeblatt
Saw blades
Diameter 250 – 315 mm
Bore with lug *) 30 mm
constant rotation 4800 min-1
Max. cutting height (with a saw blade-diameter 315
mm)
103 mm
Saw blade tiltable from 90° to 45°
*) see sketches
Slotting Cutters CE-Specifications
Max. diameter 180 mm
Width 5 to 20 mm
Specifications
