Hammer B3 - Eccentric Clamp; Clamp Set; Extension with Workpiece Roller for the Outrigger

24
!
!
!
Saw-Spindle Moulder
B3 / B3 e-classic
Setting up the machine
Extension with workpiece roller for the outrigger
Order No. 503-132

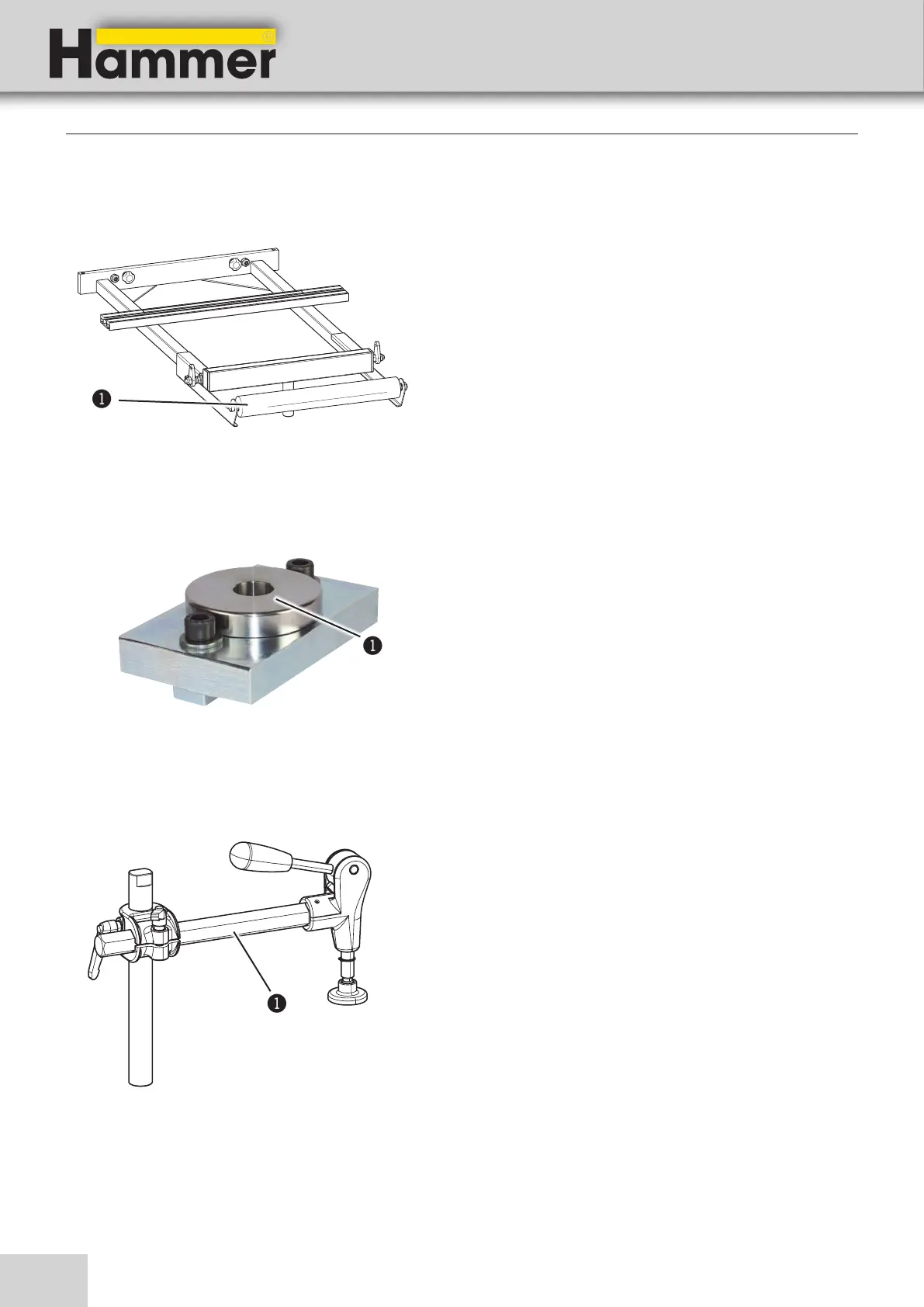

Fig. 5-6: Extension with workpiece roller for the outrigger
To correctly place very large or very long panels.
!Extension with workpiece roller for the outrigger
Fig. 5-7: Clamp set
Clamp set
Order No. 410-190
For the M20 sliding table with ball guiding system.
To affix the eccentric clamp onto the sliding table.
!Clamp set
Eccentric clamp
Order No. 400-108 and 500-112
Can be used horizontally or vertically for any workpiece.
To clamp workpieces securely to the sliding table.
!Eccentric clamp
Fig. 5-8: Eccentric clamp
