66
ø 170
max 65 mm
ø 100
Ø 170
Ø 100
max. 65 mm
!
Saw-Spindle Moulder
B3 / B3 e-classic

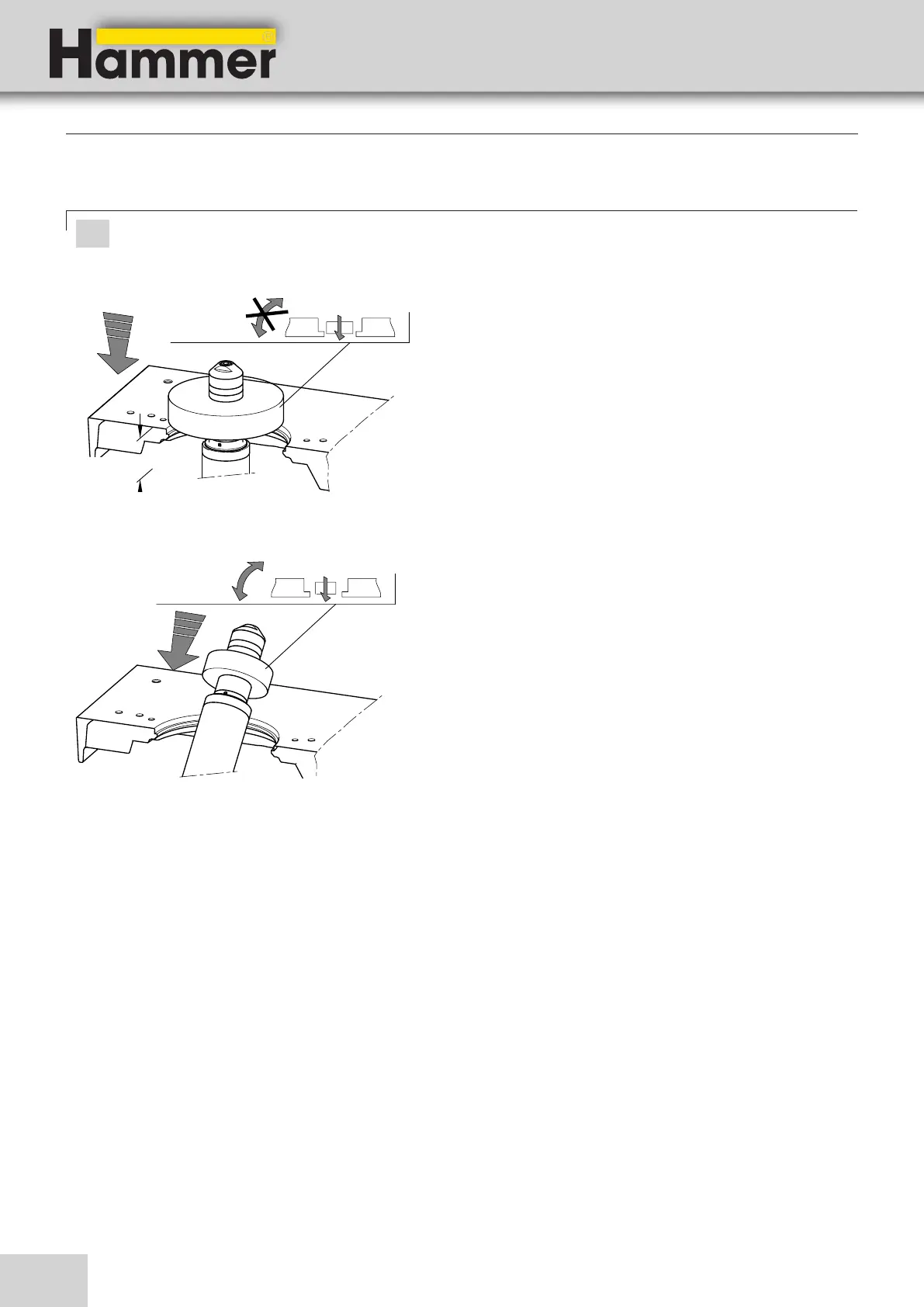

With clamped tooling and removed backing rings
max. 100 mm tool diameter in 45°- position lowered
under the table. (* not available with e-classic)
Making adjustments and preparations
Fig. 9-22: Moulding height
With clamped tooling and removed backing rings
max. 170 mm tool diameter in 90°- position lowered
under the table.
Fig. 9-23: Moulding height
9.8.4 Sink the spindle moulder
Attention! Risk of material damage!
Ensure that the tool turns freely.
