Hammer B3 - 8.11 Grooving Tools; 8.11.1 Retooling for Grooving Tools

49
!
!
"
#
$
%
&
(
/
$
Saw-Spindle Moulder
B3 / B3 e-classic
Required tools:
• Hex key 8 mm
• Hex key 4 mm
• Spanner SW 22 mm
• Spanner SW 19 mm (Splitter)
Making adjustments and preparations
1. Prepare to change tooling.
2. Remove the saw blade
3. Remove the splitter
4. Remove the rear flange.
5. If required, remove the scoring blade.
6. Unscrew the 4 screws with the allen key.
7. Remove the loading board.
! Synthetic insert
" Screws
# Hex key
$ Flange
% Splitter holder
& Nut
/ Spacer ring (Rear flange)
( Saw blade arbor
8.11.1 Retooling to an operation with grooving tools
8.11 Grooving tools
Note:
We recommend that only original Hammer tools are used (Hammer catalogue).
For authorised grooving tools see the Technical data section.
Warning! Risk of injury!
Be wary of sharp edges to avoid cutting yourself, in particular when changing the tooling.
Attention! Risk of material damage!
Do not adjust the 90° angle when operating with grooving tooling!

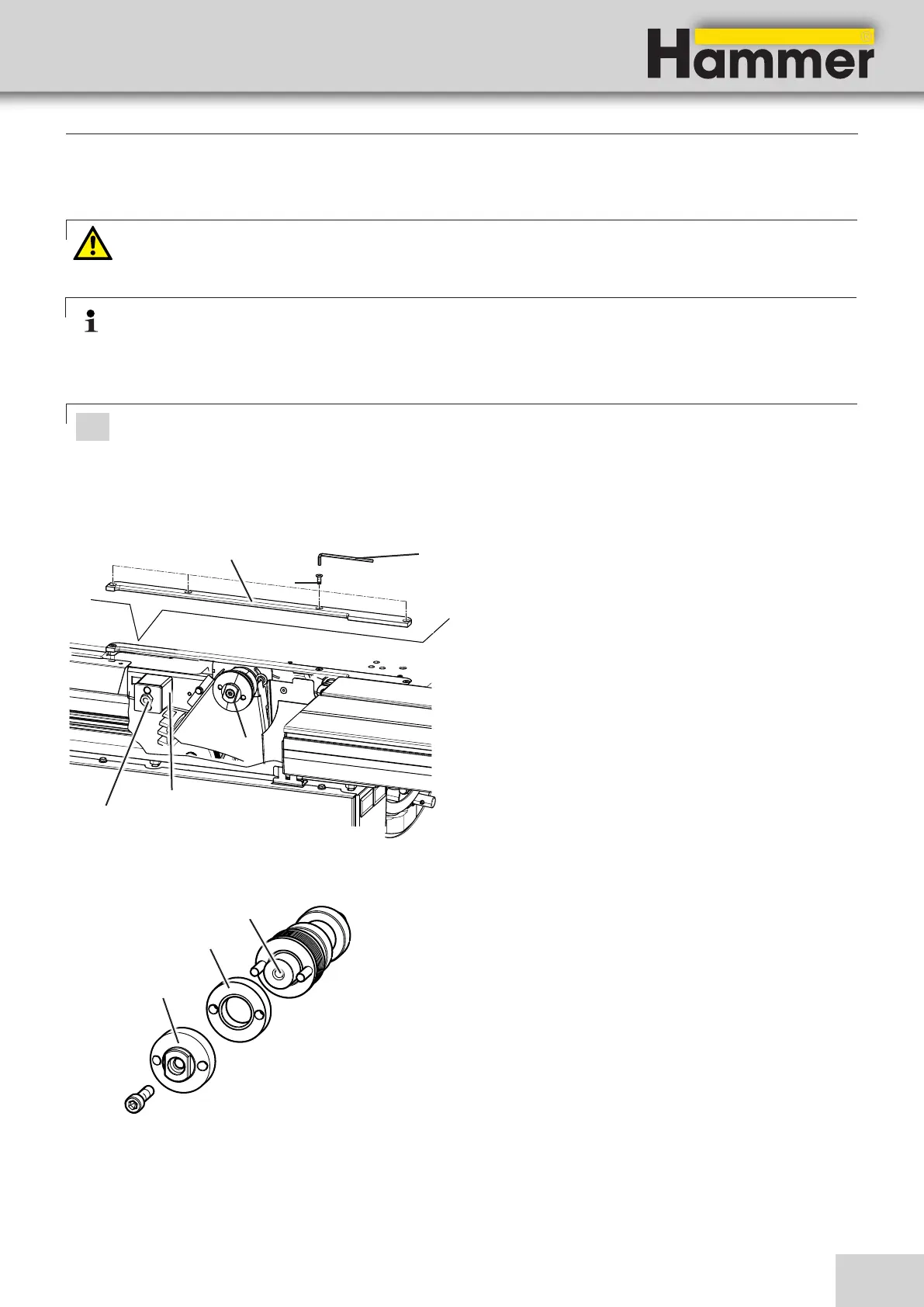

Fig. 8-25: Spacer ring/Saw arbor
Fig. 8-24: Rear flange/Splitter holder/Loading board
