Saw-Spindle Moulder
B3 / B3 e-classic

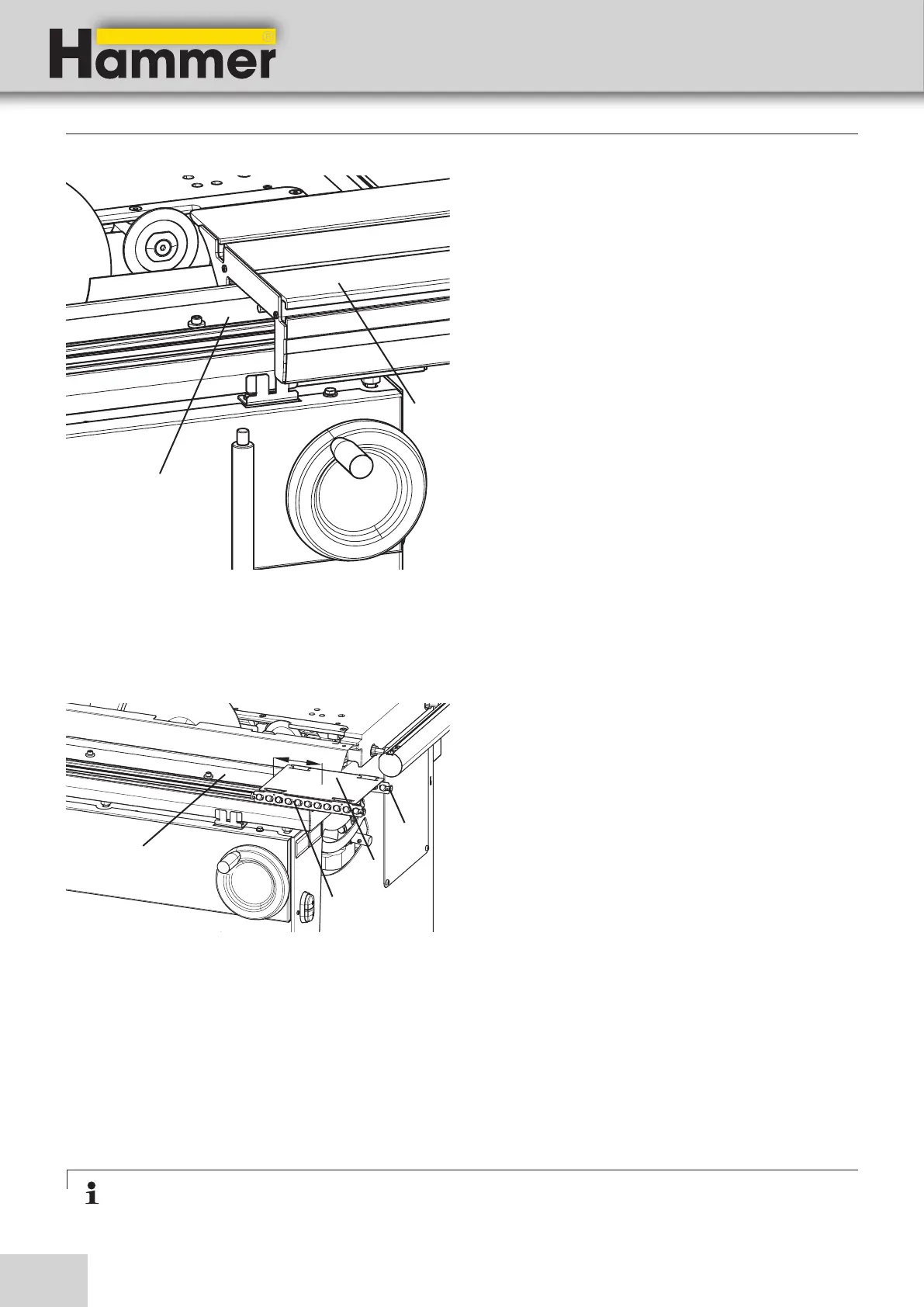

Fig. 12-10: Base/Sliding table
On the side from which the sliding table should be pu-
shed from the base:
8. Pull the sliding table from the base.
! Base
" Sliding table
12.10 Assembling the sliding table
Fig. 12-11: Ball cage
1. Ensure that the ball cage scrapers sit tightly.
2. Ensure that there are no balls in the ball cage
missing.
3. Move the cage plate with the ball cages in the
middle on the guides of the base.
4. Thread the sliding table onto the ball cages.
5. Slide the sliding table a few centimeters over the
guidings of the base.
6. Push the sliding table further onto the base; make
sure that the following ball cages are threaded
cleanly between the base and the sliding table.
7. Slide the sliding table completely onto the base.
! Base
" Ball cages
# Cage plate
$ Scraper
Attention: The number of ball cages and the length of the cage plate depend on the dismantled sliding
table.
