Hammer B3 User Manual

44
!
"
#
!
"
#
$
%
Saw-Spindle Moulder
B3 / B3 e-classic

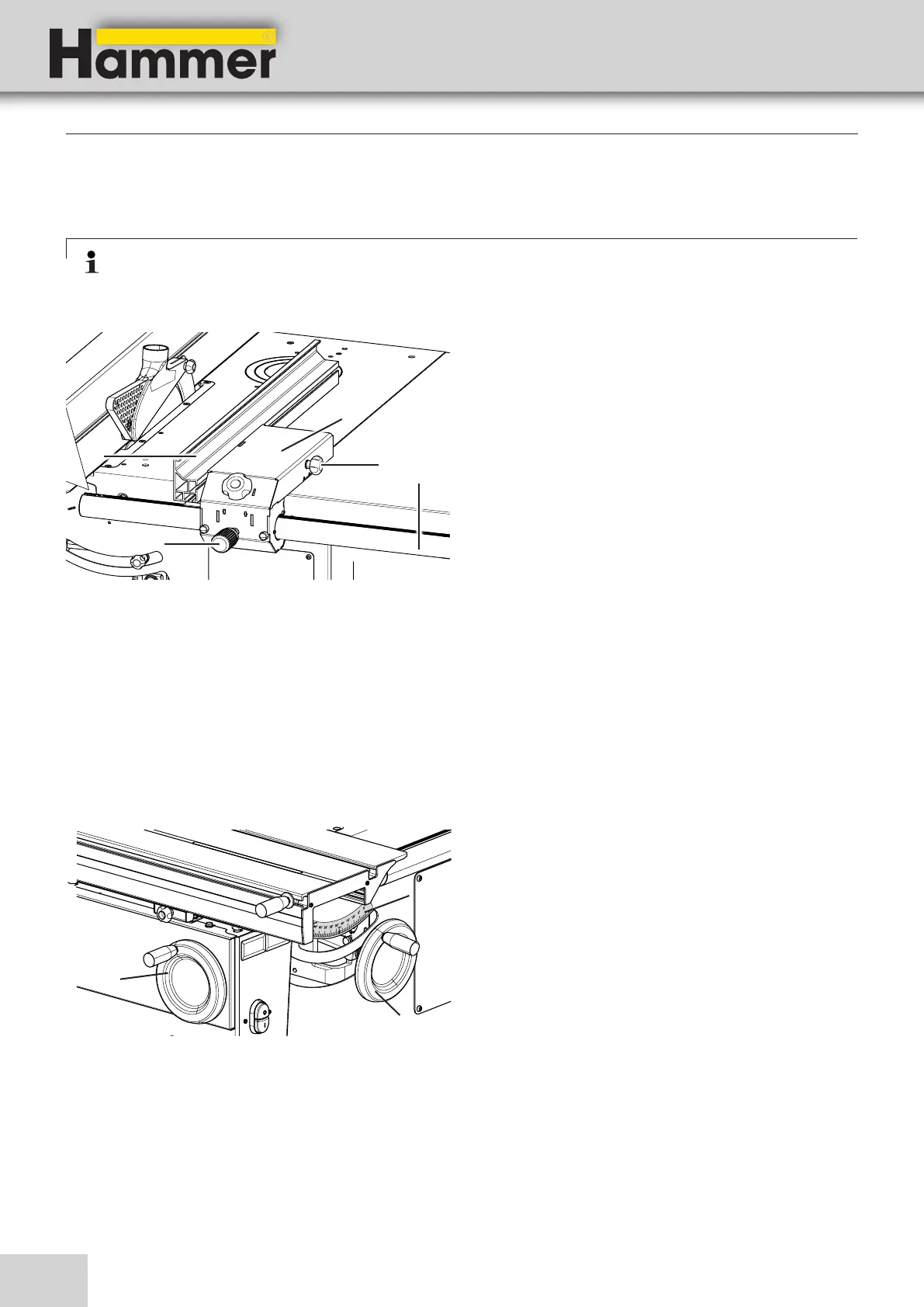

8.8 Setting the height/angle of cut
Fig. 8-16: Setting the height/angle of cut
The cutting height is set with the handwheel:
• Clockwise: higher
• Anti-clockwise: lower
Only set the cutting height to the required height.
The cutting angle is set with the handwheel:
• Clockwise: towards 0°
• Anti-clockwise: towards 45°
The cutting angle is displayed on the scale.
!Handwheel cutting angle
"Scale cutting angle
#Handwheel cutting height
8.7.5 Swinging out
Attention: Swinging out is only possible with the K3 winner circular saw.
Fig. 8-15: Parallel cutting fence
Swinging the parallel cutting fence out may be necessary
e.g. to machine large panels.
1. Loosen the thumb screw.
2. Place the guide in the centre.
3. Clamp the thumb screw.
4. Loosen the knurled handle.
5. Move the parallel cutting fence right up to the end of
the bar.
6. Swing out the parallel cutting fence.
! Guide $Thumb screw
" Knurled handle %Bar
# Parallel cutting fence
Making adjustments and preparations
