Hammer B3 User Manual

43
!
"
!
"
#
$
!
"
#
Saw-Spindle Moulder
B3 / B3 e-classic
B3 e-classic:
It may be necessary to remove the rip fence when machi-
ning large panels.
1. Loosen the clamping lever 1.
2. If present: Loosen the fine adjustment clamping lever
by 5-6 turns.
3. Remove the parallel cutting fence from the track from
the top.
! Rip fence #Single-hand clamping lever
" Clamping lever 1 $Track
8.7.3 Modifying the guide

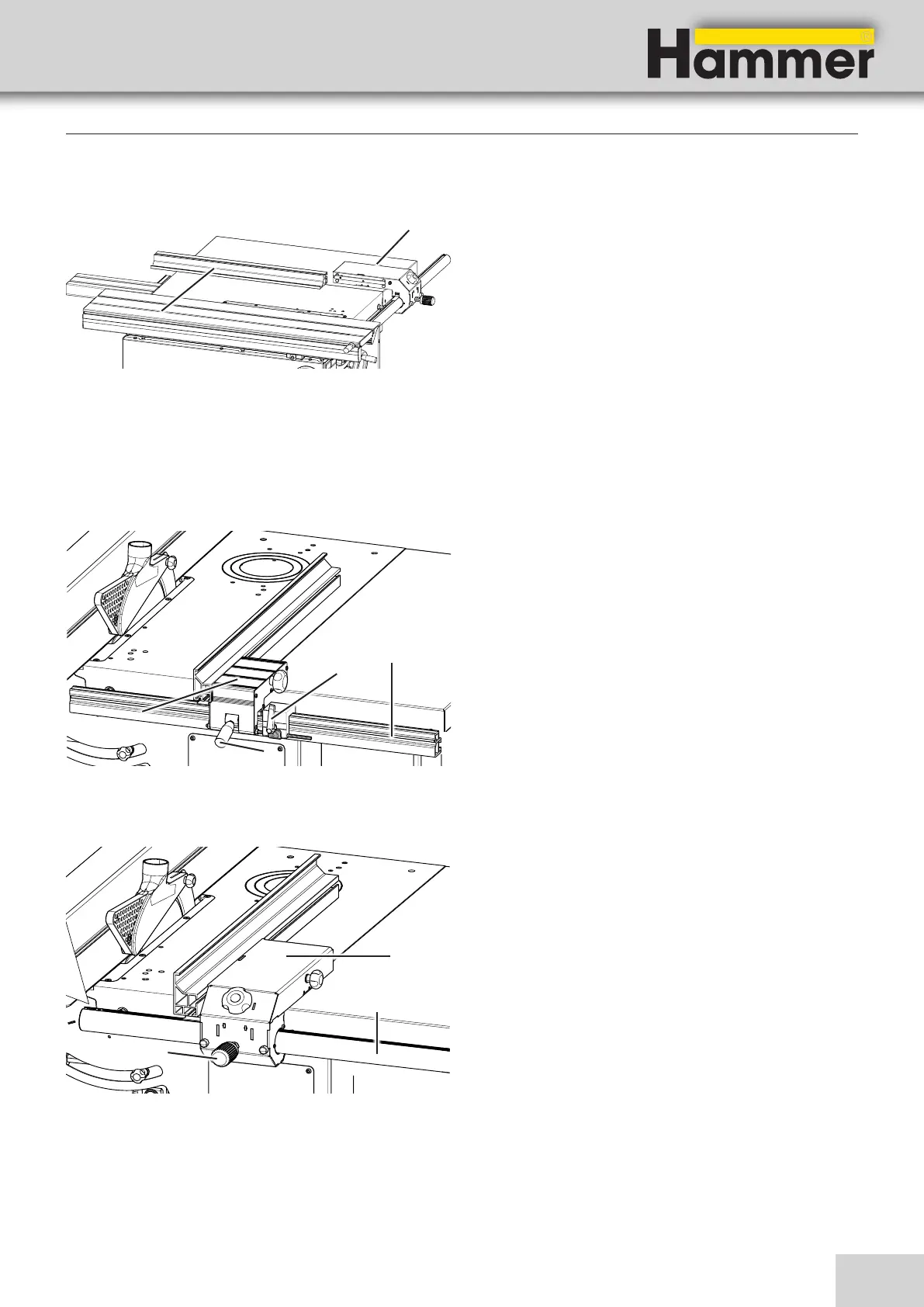

Fig. 8-12: Parallel cutting fence
1. Loosen the thumb screw.
2. Pull out the guide to the front.
3. Place the guide flat onto the table and once again,
thread through the appropriate groove.
4. Tighten the thumb screws.
! Thumb screw
" Guide
8.7.4 Removal
Fig. 8-13: Parallel cutting fence B3 e-classic
Fig. 8-14: Parallel cutting fence B3 winner
B3 winner:
It may be necessary to remove the parallel cutting fence
when machining large panels.
1. Loosen the knurled handle.
2. Remove the parallel cutting fence from the back of
the bar.
! Knurled handle
" Parallel cutting fence
# Bar
Making adjustments and preparations
