Saw-Spindle Moulder
B3 / B3 e-classic
Making adjustments and preparations
9.7.2 Mounting/removing/changing the spindle moulder tool
Warning! Risk of injury! The spindle moulder tooling is razor sharp. Handle the spindle moulder tooling care-
fully. especially when turning the spindle moulder tooling manually.
Fig. 9-14: Incorrect tooling fitting
Warning! minimum tightening torque: 30 Nm!
Required tools:
• Hex key 8 mm
• Fork wrench 22 mm
1. Prepare to change tooling.
2. Hold the spindle moulder cap tight with the fork
wrench.
3. Loosen the socket head cap screw with an hex key.
4. Remove the spindle moulder cap and collar.
5. Remove the spindle moulder tooling when changing
or removing the tools.
6. Remove dust and shavings from the spindle moulder.
7. Changing or mounting tools:
Place the spindle moulder tool as low as possible onto
the spindle moulder so as to avoid vibrations
Place as many spindle collars as are required to achieve
sufficient clamping space (approx. 8 mm) between
the spindle moulder cap and the spindle moulder.
Tool removal:
Mount all the spindle collars. Take note that there is
sufficient clamping space (approx. 8 mm) between
the spindle moulder cap and the spindle moulder.
8. Fit on the spindle moulder cap and socket head cap
screw
9. Screw in the socket head cap screw with the allen
key and tighten.
!Socket head cap screw
"Spindle moulder cap
#Spindle moulder collar
$Spindle moulder
%Spindle moulder tooling

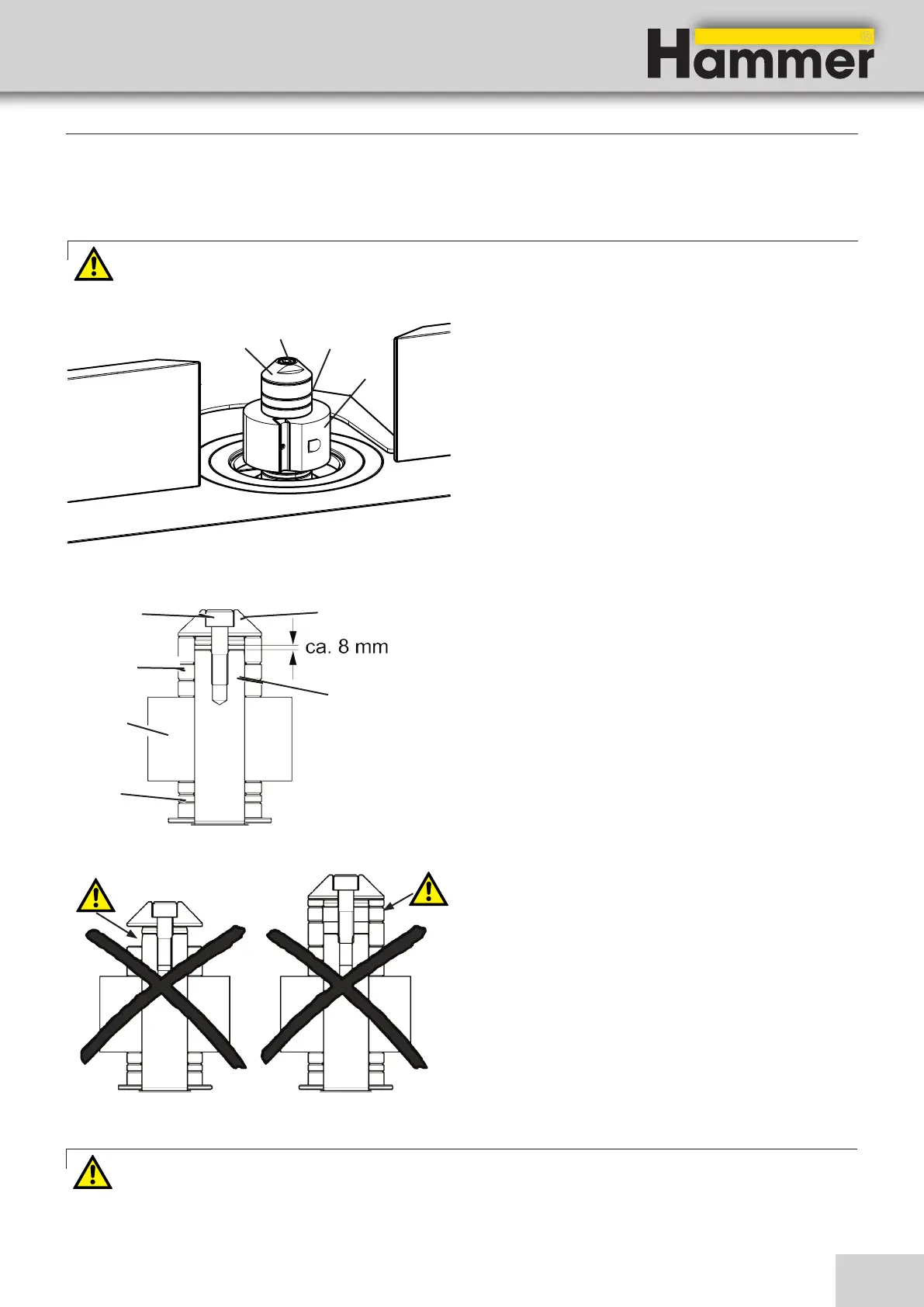

Fig. 9-12: Spindle moulder
Fig. 9-13: Installing the spindle moulder tool
