Saw-Spindle Moulder
B3 / B3 e-classic
Required tools:
• Hex key 8 mm
• Spanner SW 22 mm
1. Prepare to change tooling..
2. Loosen the splitter to install a larger saw blade.
3. Hold the flange tight with the spanner.
4. Loosen the socket head cap screw with an hex key.
5. Remove the socket head cap screw and flange.
6. Remove the old saw blade and place the new saw
blade on the arbor.
7. Replace the flange (take note of the assembling
position). Hold the flange tight with the spanner.
8. Screw in the socket head cap screw with the hex key.
9. Adjust the splitter if a larger or smaller saw blade
has been fitted in.
10. Prepare the machine to operate.
11. Adjust the saw guard according to the saw blade.
Making adjustments and preparations
8.10 Changing the saw blade

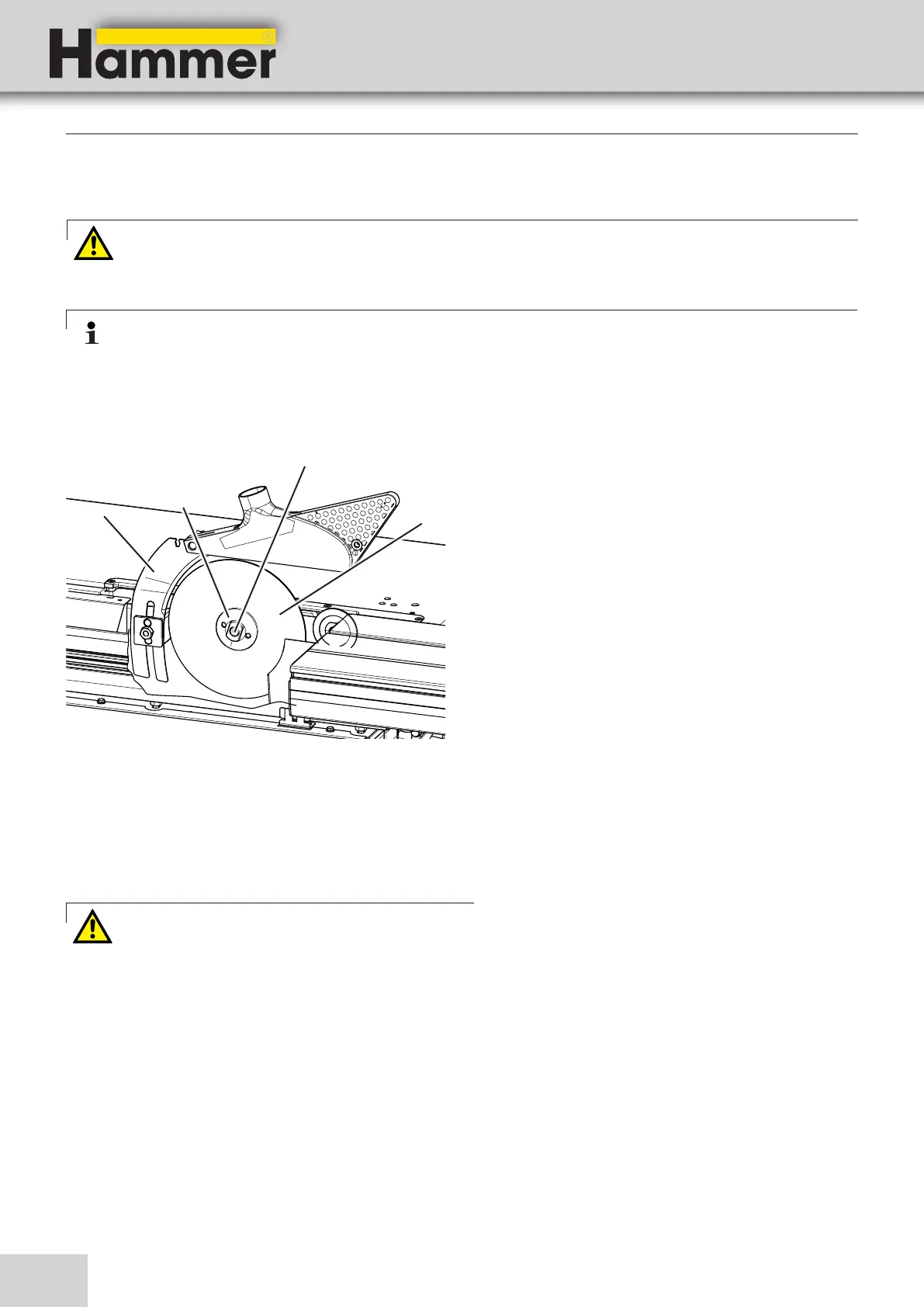

Fig. 8-19: Changing the saw blade
! Splitter
" Flange
§ Socket head cap screw
$ Saw blade
Attention! Minimum tightening torque: 20 Nm!
Note:
We recommend that only original Hammer tools are used (Hammer catalogue).
For precision cutting, we recommend you to use the smallest saw blade possible.
See technical data for authorised saw blades.
Warning! Risk of injury!
Be wary of sharp edges to avoid cutting yourself, in particular when changing the tooling.
