Saw-Spindle Moulder
B3 / B3 e-classic
1. Switch off the machine
2. Tighten the thumb screw.
3. Release the clamping lever.
4. Turn the knurled handle until the tree rod is located in
the centre of the mortise.
5. Clamp the clamping lever.
6. Loosen the thumb screw.
!Thumb screw
"Knurled handle
#Clamping lever
$Threaded rod

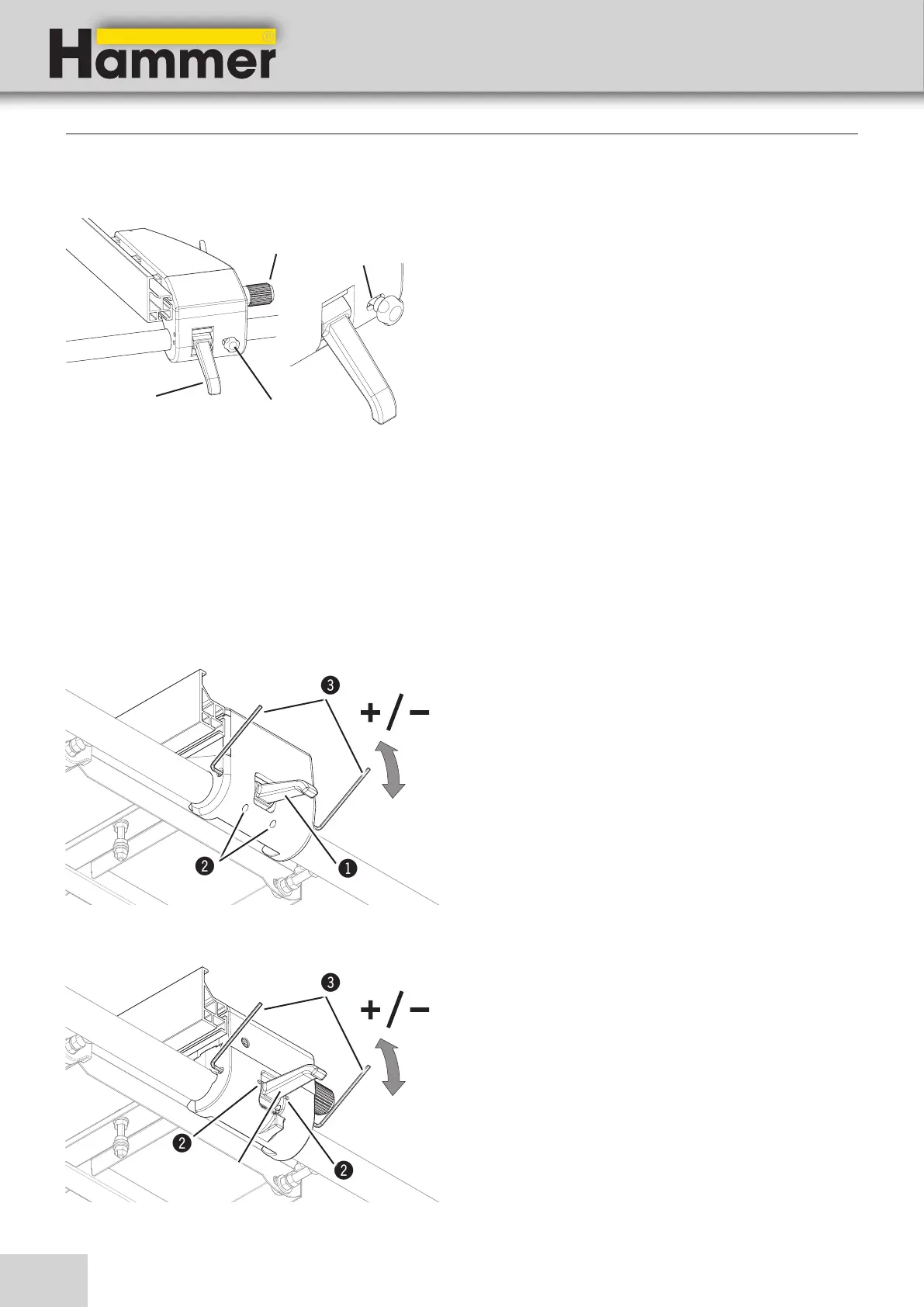

Fig. 13-6: Fine adjustment
13.9.2 Adjusting the rip fence fine adjustment
Required tools:
2 x Hex key 3 mm / 4 mm
1. Switch the machine off and ensure that it cannot be
switched on again.
2. Release the clamping lever.
3. Loosen the clamping screws (2 x)
(Hex key 3 mm)
4. Twist both setscrews equally with 2 hex-keys (4 mm).
(on both sides)
5. Tighten the clamping screws (2 x)
6. Check the clamping force and adjust if necessary.
!Clamping lever
"Clamping screws
#Adjustment screws
13.9.3 Adjusting the locking force of the parallel cutting fence
Fig. 13-7: Rip fence - Standard
Fig. 13-8: Rip fence - Fine adjustment
