ContentServer 4000
Control Panel Indicators
The control panel contains operational state and fault LED indicators.

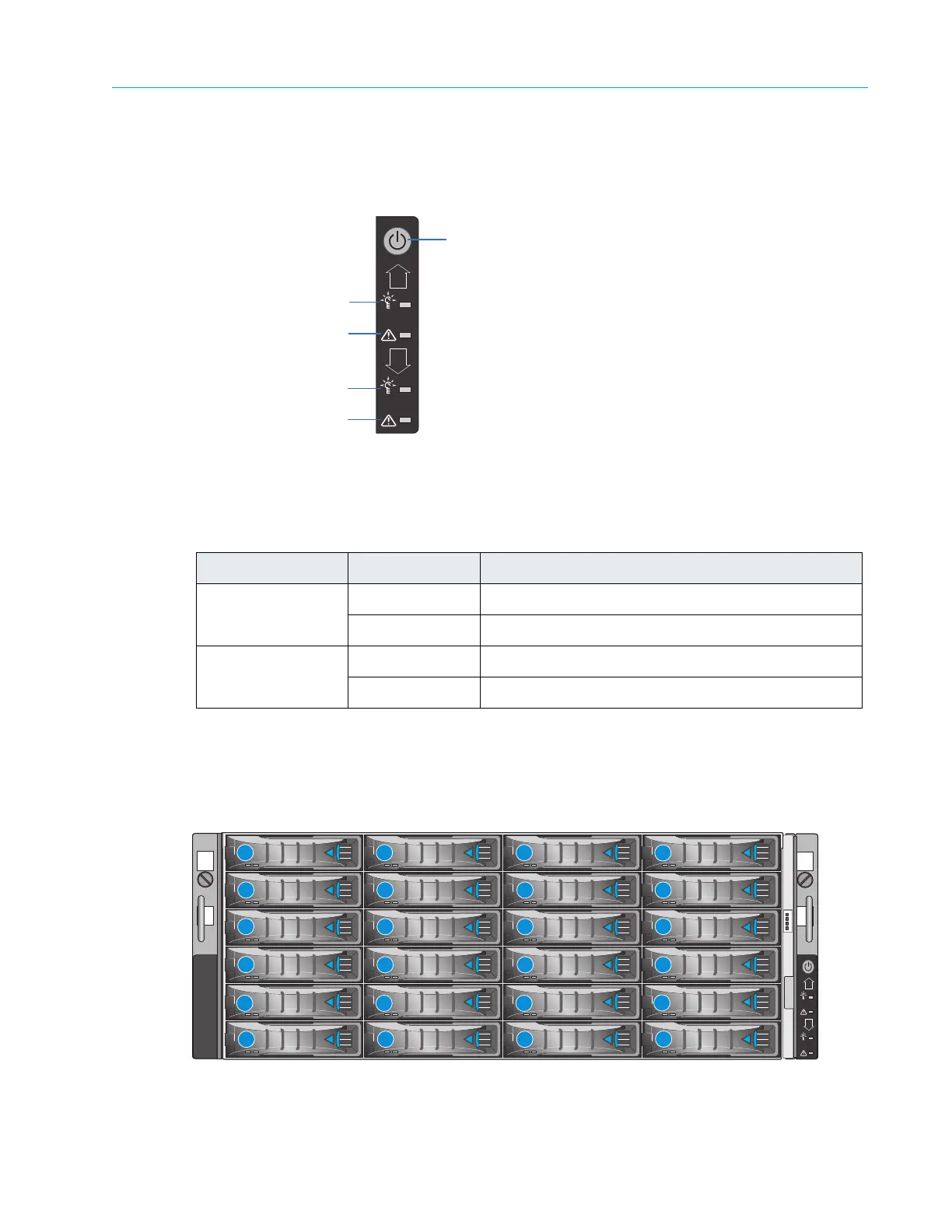

Figure 8–29: ContentServer 4000 Control Panel LED Indicators
Disk Drive Numbering
Drives are number 0-23, starting with the top left drive.
Figure 8–30: ContentServer 4000 Drive Numbering
Table 8–29: ContentServer 4000 Control Panel LED Indicators
Indicator State Description
Operational State Green System is powered on.
Off System is powered off.
Fault Yellow A critical error has occurred.
Off No critical errors have occurred.
