Power Supply Indicator
Each power supply module on the ContentServer 4000 has one LED indicator.

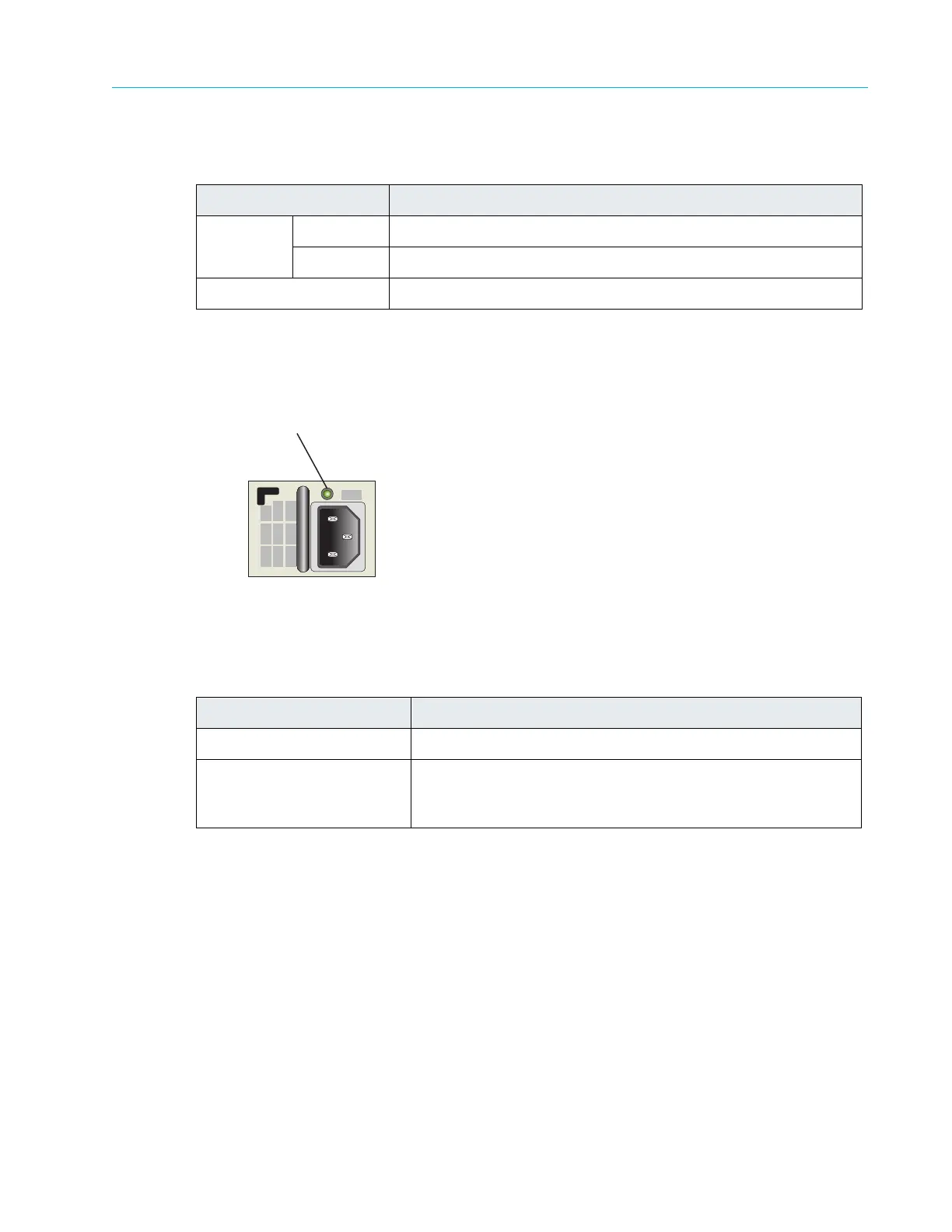

Figure 8–34: ContentServer 4000 Power Supply LED
ContentStore 3160
The ContentStore 3160 presents data to the client, managing the actual data on the hard drives.
Front Panel Components
Bezel
Figure 8–35 and Table 8–34 describe the front bezel components of the ContentStore 3160.
Table 8–32: ContentServer 4000 10GbE Port LED
State Desciption
Green Solid Active connection at 10 Gb/s
Blink Network activity
Off Power off (network cable unplugged)
Table 8–33: ContentServer 4000 Power Supply LED
State Description
Green AC power is present and at least
one controller is operating.
Red AC power is present and one of the following is true:
both controllers are stopped
a fault has occurred in the power supply unit
