ContentStore 3160
Table 8–37: Disk Drive Status LEDs
Rear Panel Components
The ContentStore 3160 includes two separate controllers, and two power supplies to provide
redundancy in the case of a failure. Figure 8–39 and Table 8–38 describe the rear panel components
of a ContentStore 3160.

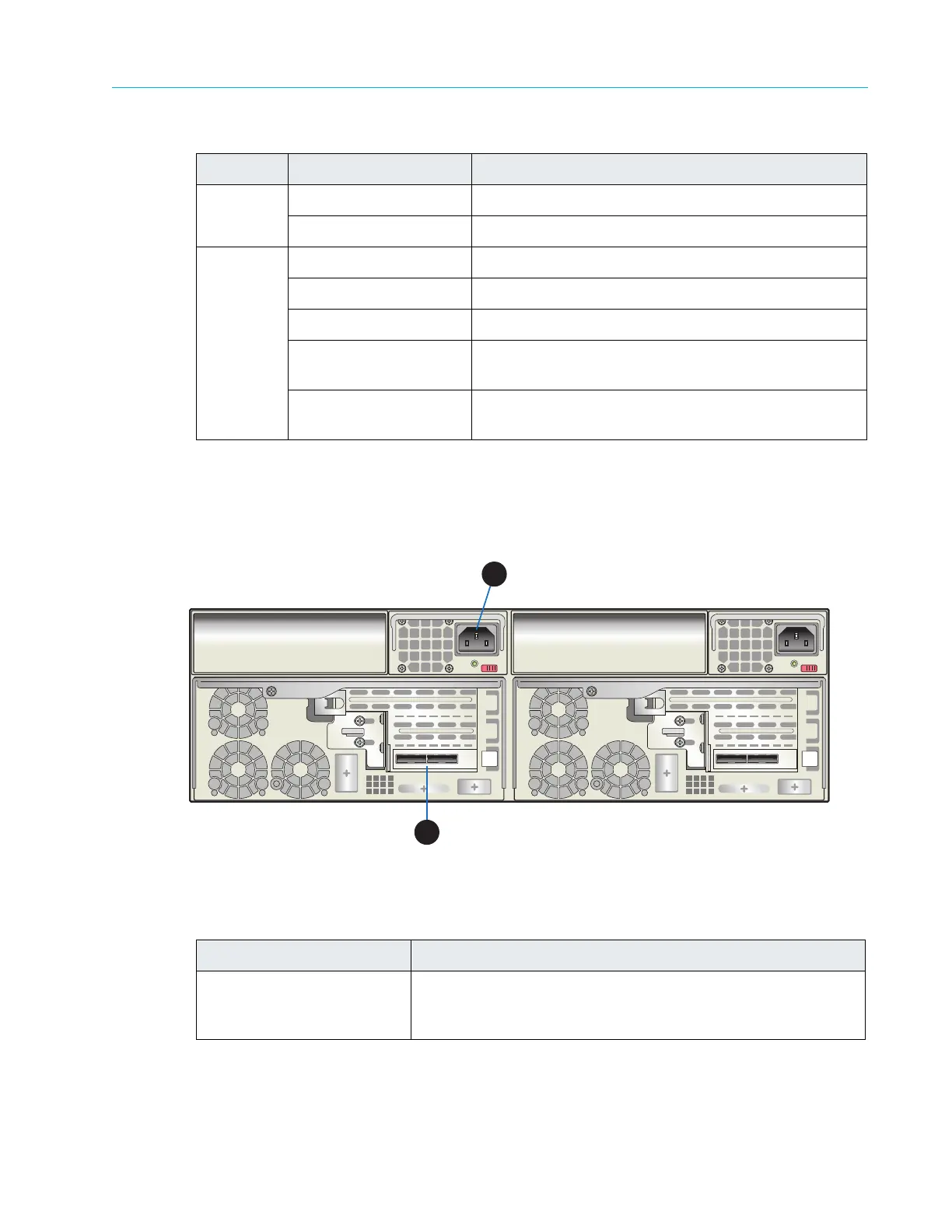

Figure 8–39: ContentStore 3160 Rear Panel
LED Color/State Description
Green Solid Drive is powered on
Off No power is being provided to the drive
Red Solid Drive is not being used by the ContentServer
Rapid blink Drive failed
Slow blink Drive is being winked
Two rapid blinks then
pause re
peatedly
RAID set is being rebuilt, repaired, or is under
maintenance
Off Drive state is normal. Drive is being used by the
Content
Server.
Table 8–38: ContentStore 3160 Rear Panel Components
Component Description
1. Power supplies Dual, redundant power supplies provide power to the system.
For
a description of the power supply LED states, refer to Power
Supply LED
1
2
Controller
