ContentBridge 2010E
ContentBridge 2010E
The ContentBridge 2010E (also referred to as the High Bandwidth ContentBridge), an optional
component, provides access to Harmonic MediaGrid for those client platforms that do not have
the FSD installed or do not use the Harmonic MediaGrid API.
Front Panel Components
Figure 9–9 and Table 9–10 detail the front panel of the ContentBridge 2010E.

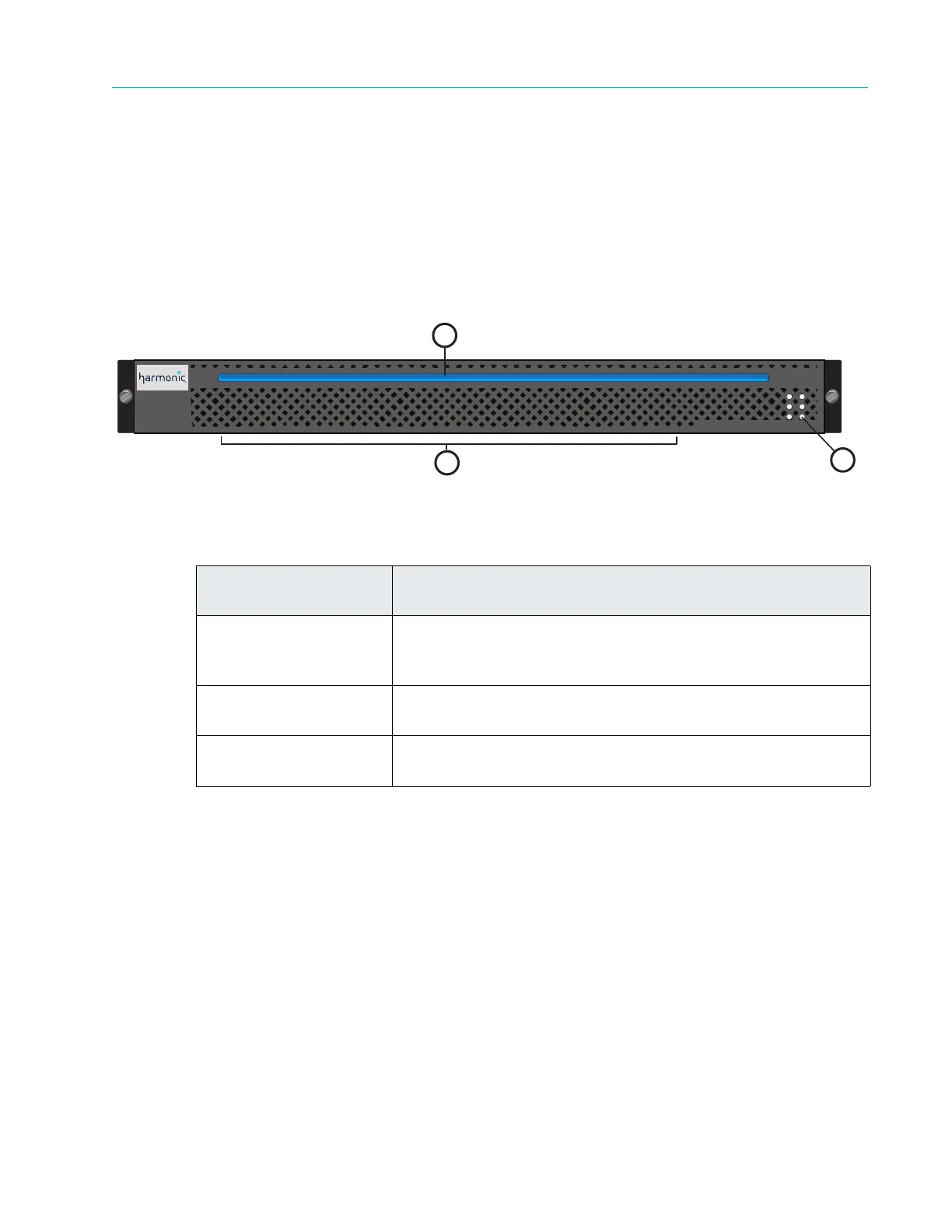

Figure 9–9: ContentBridge 2010E Front Panel
Table 9–10: ContentBridge 2010E Front Panel Descriptions
Indicator, Button, or
Connector
Description
1. Power indicator
A bright blue
power indicator is provided across the top of the
front panel. This indicator also provides a “wink” function, which
allows you to identify a unit from the SystemManager application.
2. Air vents Allows airflow through the unit. For optimum airflow, do not
obstruct
the air vents.
3. Status LEDs
An array of six
status LEDs is provided on the front panel. See the
following figure and table for descriptions of each status LED.
ContentBridge 2000
MediaGrid
2
1
3
