ContentBridge 1000

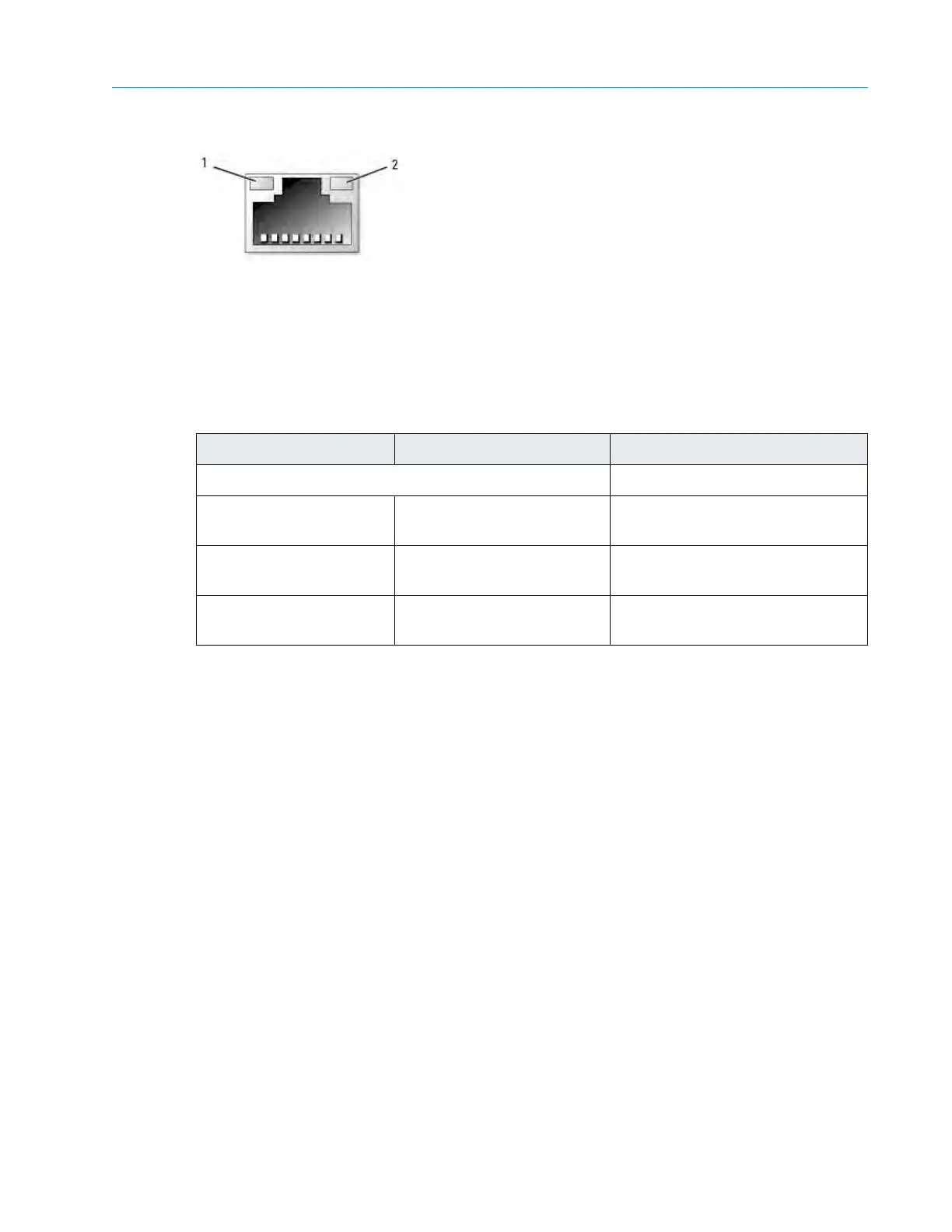

Figure 9–8: ContentDirector NIC Indicators
Note that the indicator codes for NIC 0 and NI
C 1 differ from NIC 2 and NIC 3. Refer to Table 9–9.
Table 9–9: NIC Indicator Codes
ContentBridge 1000
The ContentBridge 1000, which is an optional Harmonic MediaGrid system component, provides
access to the Harmonic MediaGrid for those client platforms that do not have the File System
Driver (FSD) installed or do not use the Harmonic MediaGrid API.
Front Panel Components
Figure A–7 and Table A–9 detail the front bezel view of a typical ContentBridge 1000.
NIC 0 and NIC 1 Indicators NIC 2 and NIC 3 Indicators Connection Status
Link and activity indicators are off NIC is not connected.
Link indicator is green Link indicator is amber NIC is connected to a valid link on
the
network.
Link indicator is amber Link indicator is green or
blink
ing green
NIC is connected to a valid
network link at 10/100 Mbps
Activity indicator is amber
blinking
Activity indicator is green
blinking
Data is being sent or received
over
the network.
1. Link indicator
2. Activity indicator
