Chapter 8 Hardware Reference
© 2017 Harmonic Inc. All rights reserved. 266 Harmonic MediaGrid Release 4.1
ContentStore 5840 and 5840A
ContentStore 5840 and 5840A
The ContentStore 5840 is a high capacity storage unit containing two drawers of 42 drives each
(84 drives in total).
Front Panel Components

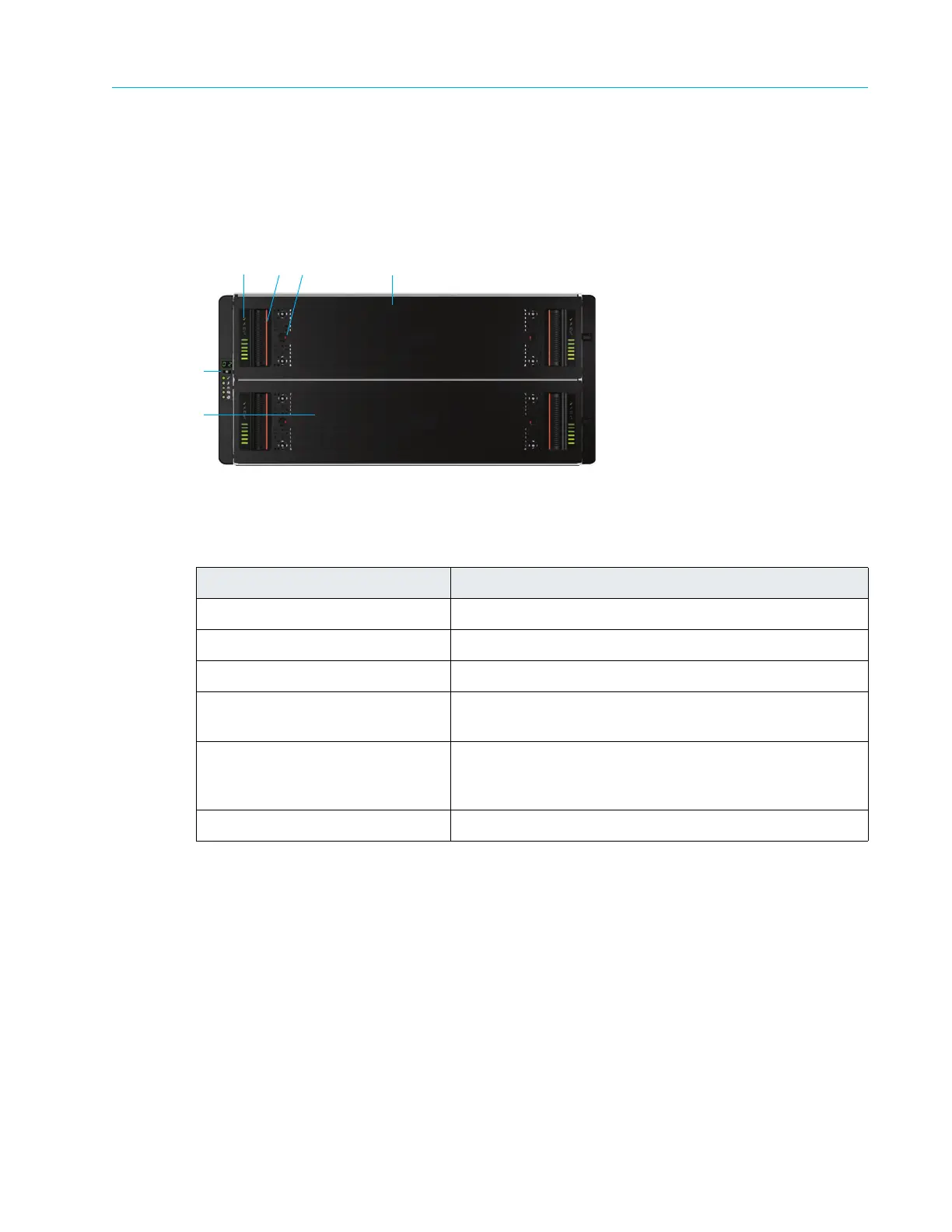

Figure 8–46: ContentStore 5840 and 5840A Front Panel Components
Table 8–45: ContentStore 5840 and 5840A Front Panel Components
Component Description
1. Operator’s Panel Displays the aggregated status of
all the modules.
2 Drawer 2 The bottom drawer. Each drawer co
ntains 42 drive slots.
3. Drawer LEDs Displays status for an individual drawer.
4. Drawer Latch Drawer latches on either side of the drawer are used to
pull the drawer
out.
5. Anti-tamper Lock Each drawer can be locked shut by turning both anti-
ta
mper locks clockwise using a screwdriver with a
Torx T20 bit
6. Drawer 1 The top drawer. Each drawer contains 42 drive slots.
5
3
1
4
2
6
