ContentBridge 2010E

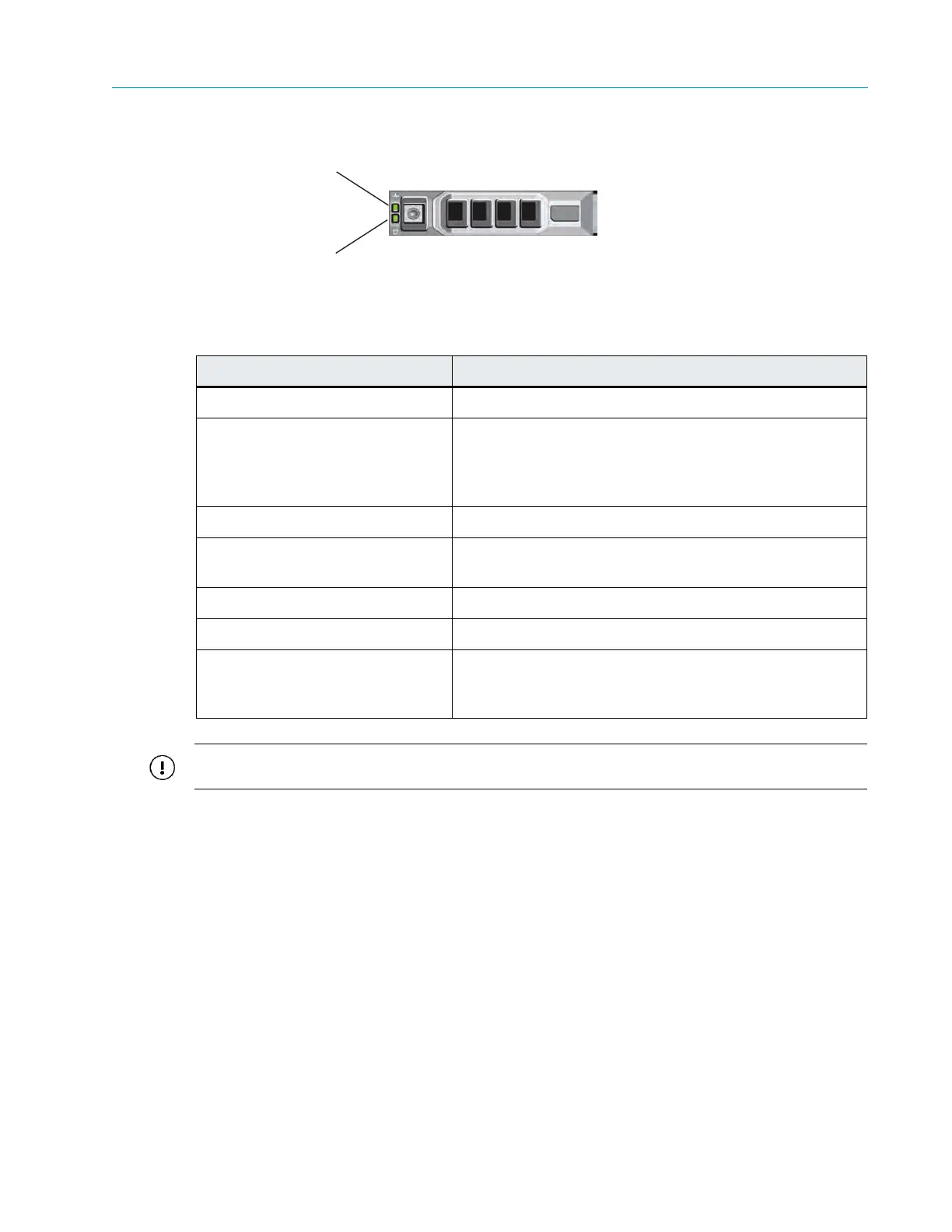

Figure 9–12: ContentBridge 2010E Hard Drive Indicators
Table 9–13: Drive-status Indicator Pattern (RAID Only)
IMPORTANT: Do not turn off power when replacing a drive. As soon as the new drive is inserted, the
system will begin replicating the data from the other drives.
Rear Panel Components
Figure 9–13 and Table A–20 describe the rear panel view of the ContentBridge 2010E.
Drive-status Indicator Pattern Condition
Blinks green two times per second Identify drive/preparing for removal
Off Drive ready for insertion or removal
Note: The drive-status indicator remains off until all hard
drives are initialized after system power is applied. Drives
are not ready for insertion or removal during this time.
Blinks green, amber, and off Drive predicted failure
Blinks amber four times per
second
Drive failed
Blinks green slowly Drive rebuilding
Steady green Drive online
Blinks green three seconds,
amber thr
ee seconds, and off six
seconds
Rebuild aborted
Drive-activity Indicator (green)
Drive-status Indicator (green and amber)
