ContentStore 4240

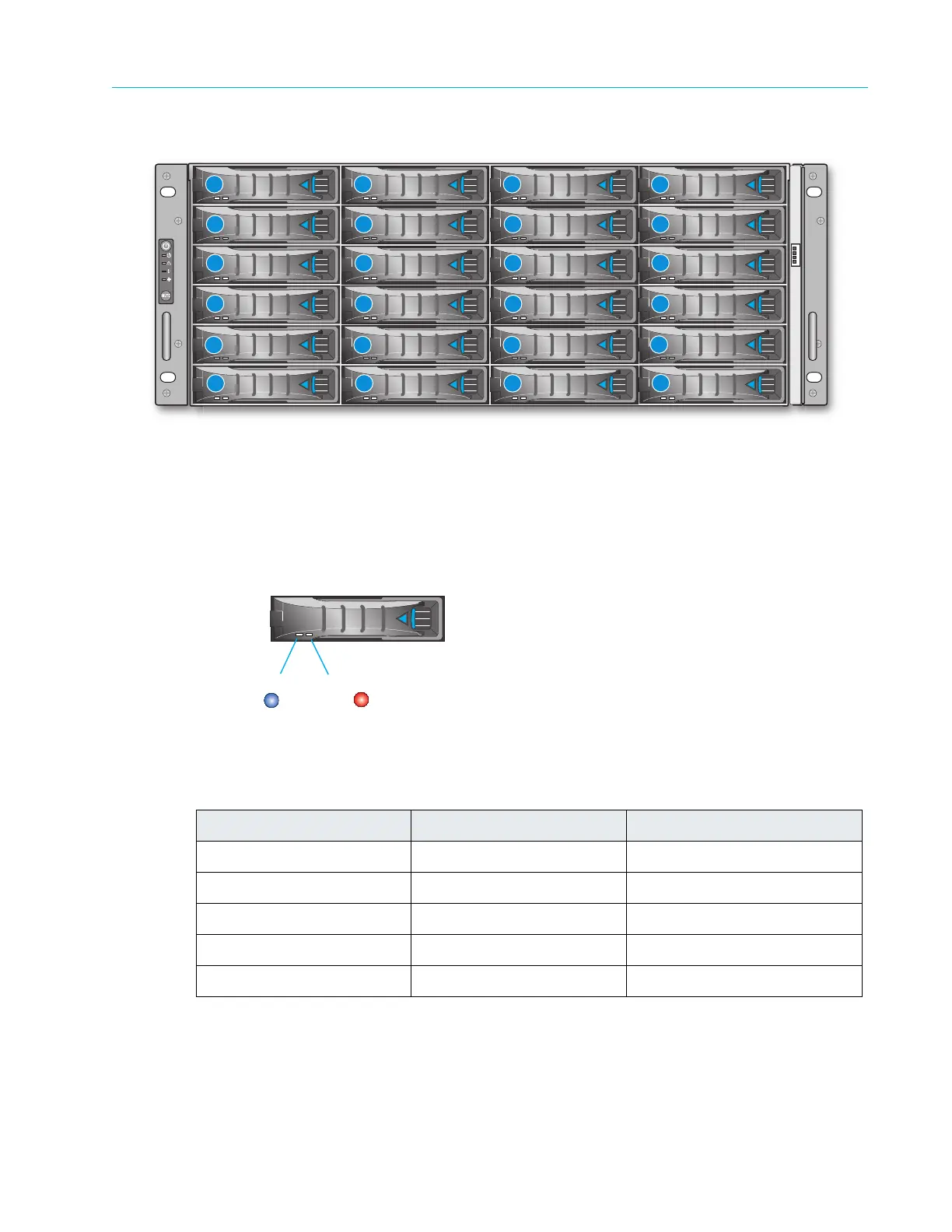

Figure 8–42: ContentStore 4240 Drive Slot Numbers
Disk Drive LED Indicators
Each drive has an activity LED and status LED. Note that, on the ContentStore 4240, the wink
function activates the activity LED.
Figure 8–43: ContentStore 4240 Disk Drive LEDs
Table 8–42: ContentStore 4240 Disk Drive LED Indicators
Drive State Activity LED Status LED
Drive is powered on Solid Off
Drive activity Blink Off
RAID rebuild in progress Blink Slow blink (1 Hz)
Drive failure Solid Rapid blink (2Hz)
Drive is being winked Slow blink (1Hz) Off
2
3
10
20 21 22
23
16 17 18
19
12
13 14 15
8
9
10
11
4 5
6 7
Status
Activity
(Blue )
(Red )
