Harmonic MediaGrid - Page 28

Chapter 1 System Overview and Requirements
© 2017 Harmonic Inc. All rights reserved. 28 Harmonic MediaGrid Release 4.1
Network Configuration

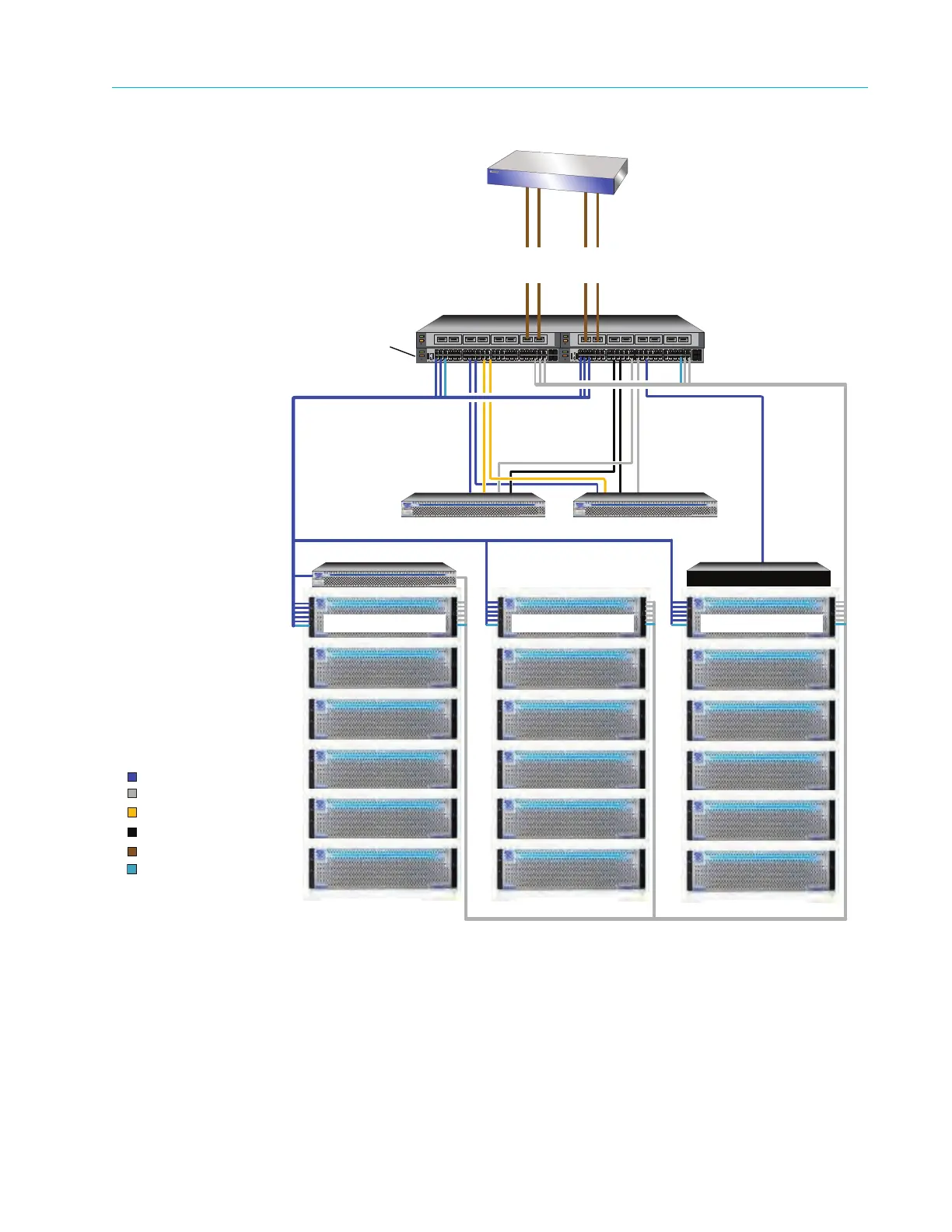

Figure 1–4: Harmonic MediaGrid System with ContentServer 3000 Series and 1 GbE Network
In Figure 1–4,
note
the following:
 The blue cables and the gray cables represent different connections on the same Public
VLAN.
 Private VLAN 1 is a dedicated VLAN defined on the 1GbE switch shown on the left. Private
VLAN 2 is a dedicated VLAN defined on the 1GbE switch shown on the right. The
ContentDirectors must communicate on both private VLANs.
