Chapter 2 System Installation with the Content-
Server 4000 Series
© 2017 Harmonic Inc. All rights reserved. 57 Harmonic MediaGrid Release 4.1
Connecting the Harmonic MediaGrid 4000 System Components
IMPORTANT: To ensure redundancy and proper failover in the event of a failure, you must connect each
controller to a separate switch or switch module.

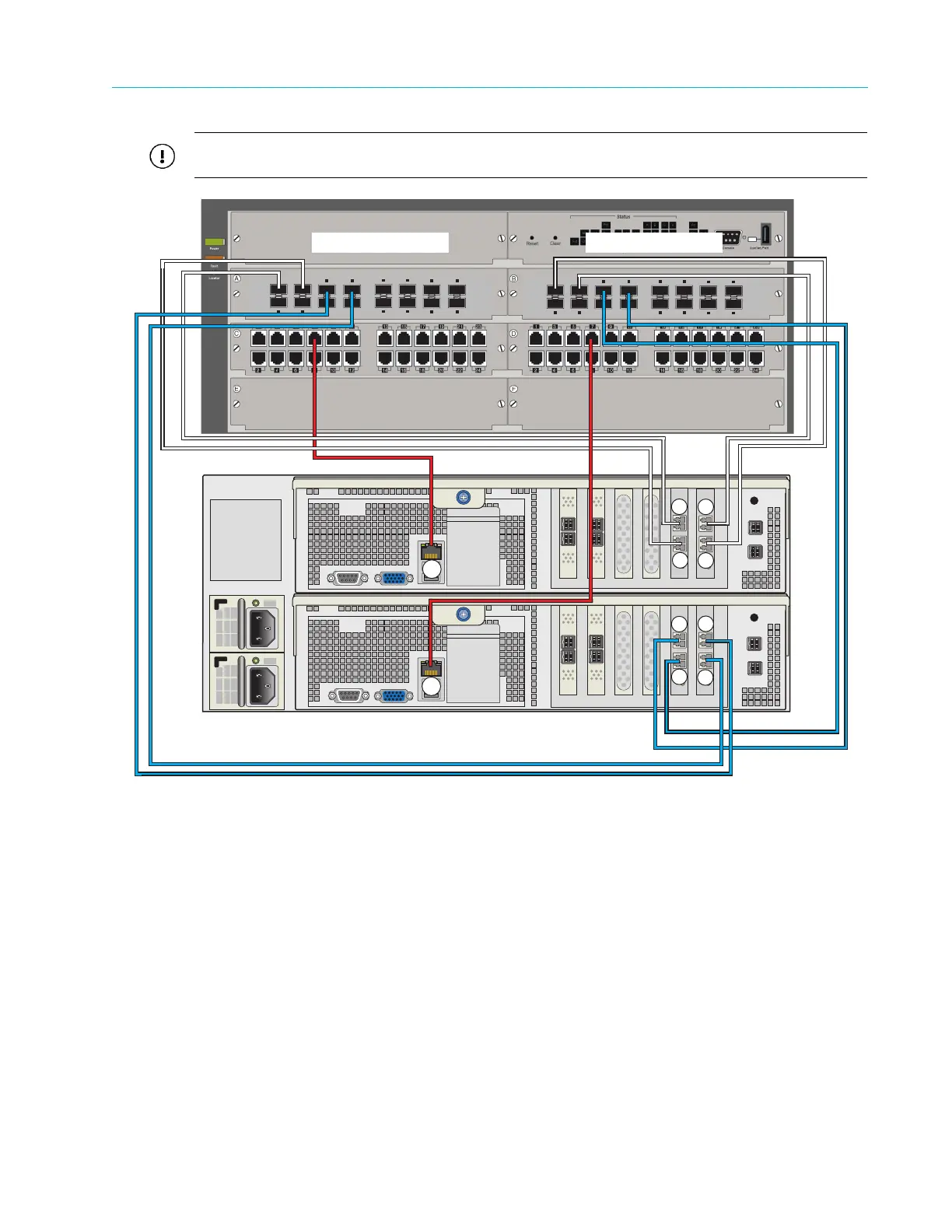

Figure 2–18: Connecting the ContentServer 4000 to the Network Switch
3
4
5
6
7
8
1
2
11
12
13
14
15
16
9
10
10-GbE SFP+ Ports
3
4
5
6
7
8
1
2
11
12
13
14
15
16
9
10
10-GbE SFP+ Ports
Controller A
Controller B
10 GbE Module A
10 GbE Module B
2
2
3
3
4
4
5
5
BMC
BMC
