1.5.2. Various Front-Ends
PVR 6000 supports the following interfaces:
• DVB-S Single L-Band input
• DVB-S Dual L-Band input
• DVB-DSNG Dual L-Band input
• DVB-S2 Dual L-Band input
• MPEG over IP (MPEGoIP) dual input
• G.703 E3 single input with Loop-through
• ASI-In Decoder only (except for PVR 6000)
In this manual all rear panels are displayed with the DVB-S interface. Each
model has standard features and interfaces as well as features requiring active
software licenses.
The MPEGoIP input interface can be supported by all PVR 6000 devices.
Figure
1-4 illustrates the PVR 6010 rear panel with an MPEGoIP input interface.

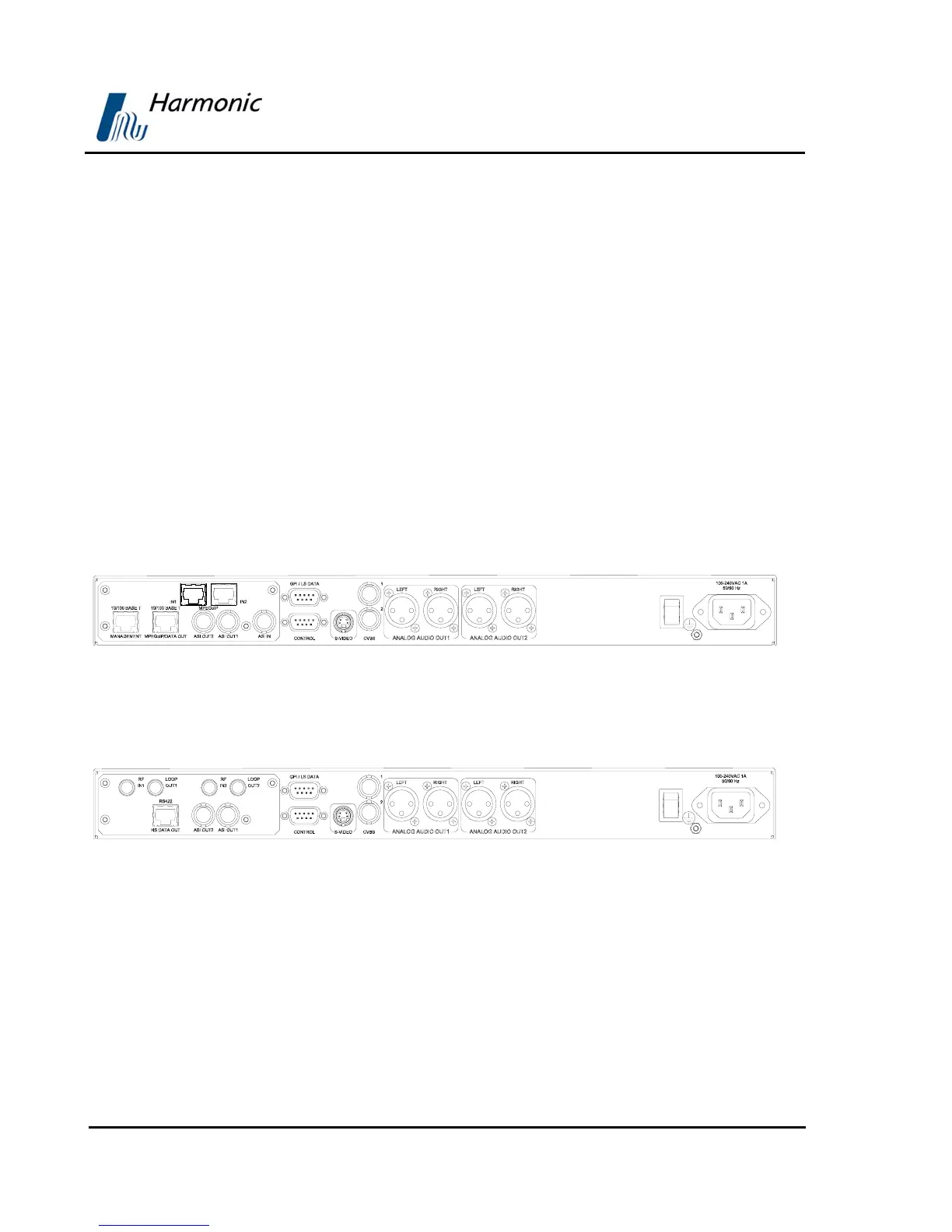

Figure 1-4: PVR 6010 Rear Panel (IP Input interface)
Figure 1-5 illustrates the PVR 6010 rear panel with DVB-S (QPSK) Dual Input
configuration.
Figure 1-5: PVR 6010 Rear Panel (DVB-S Dual Input interface)
