1.5.4. PVR 6000 models
1.5.4.1. PVR 6000 Interfaces and Features
The PVR 6000 is a single 4:2:0 Decoder IRD. The PVR 6000 devices consist of
two composite video interfaces. The CVBS #1 connector is used for broadcasting
quality video and the CVBS #2 connector is used for monitoring.
Figure 1-7 illustrates the PVR 6000 rear panel. The PVR 6000 basic features and
software-licensed features are also detailed.

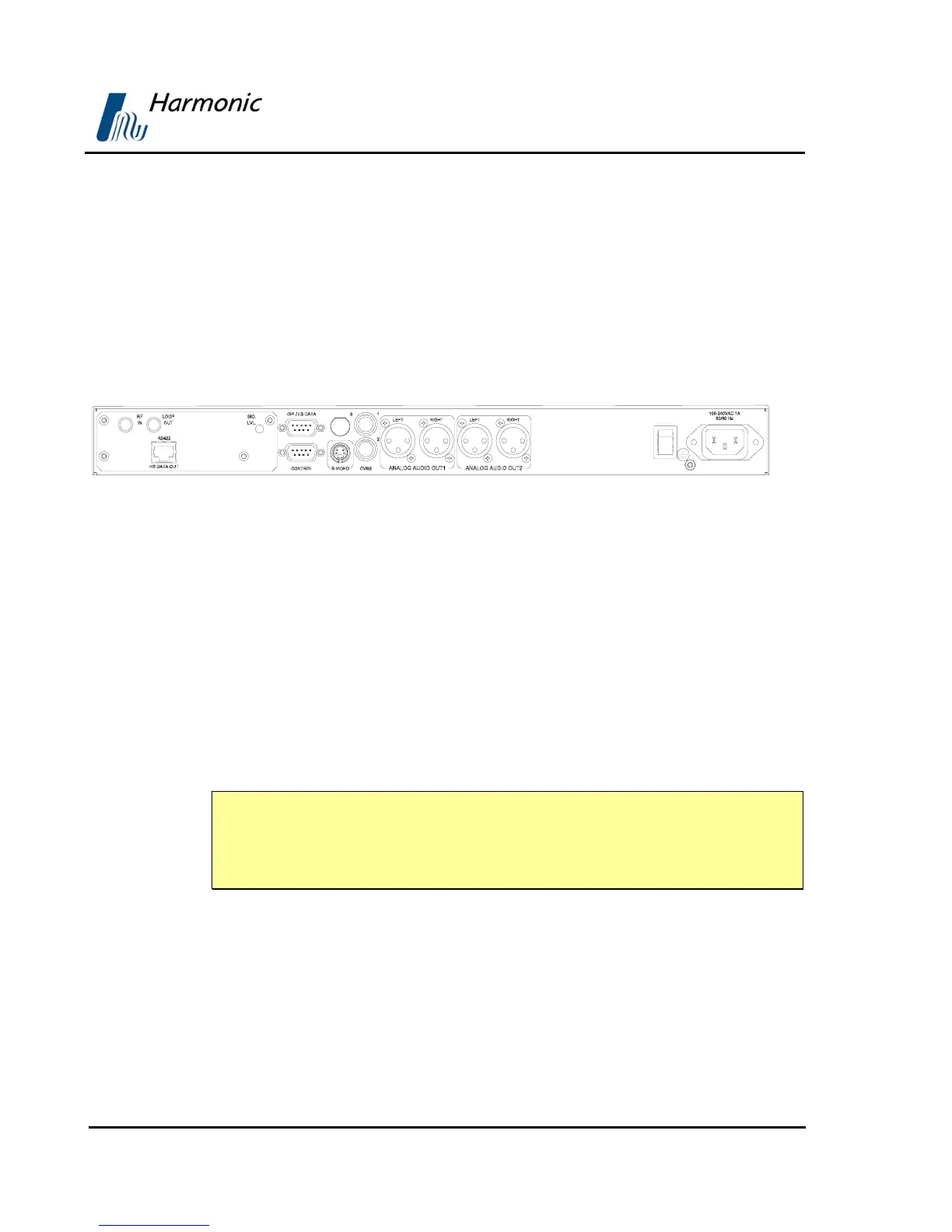

Figure 1-7: PVR 6000 Rear Panel (Standard)
Basic Features
• 1 composite video - Broadcast
quality (upper connector)
• 1 composite video - Monitoring
quality (lower connector)
• 2 active analog – audio - stereo
balanced interfaces
• GPI
Software-Licensed Features
• Dolby digital (AC-3) LT/RT
downmixing
• RS-232 low speed data output
• RS-422 high speed data output
NOTES
The PVR 6000 does not support the Decoder Only configuration.
The Russian SECAM D/K (composite video only) is available only through Special
orders.
