1.5.4.3. PVR 6020 Interfaces and Features
The PVR 6020 is a single 4:2:0 decoder. The entire PVR 6020 family consists of
two composite video interfaces. The CVBS #1 connector is used for broadcast
quality video and the CVBS #2 connector can is for monitoring.
Figure 1-9 illustrates the PVR 6020 rear panel. The PVR 6020 basic features and
software-licensed features are also detailed.

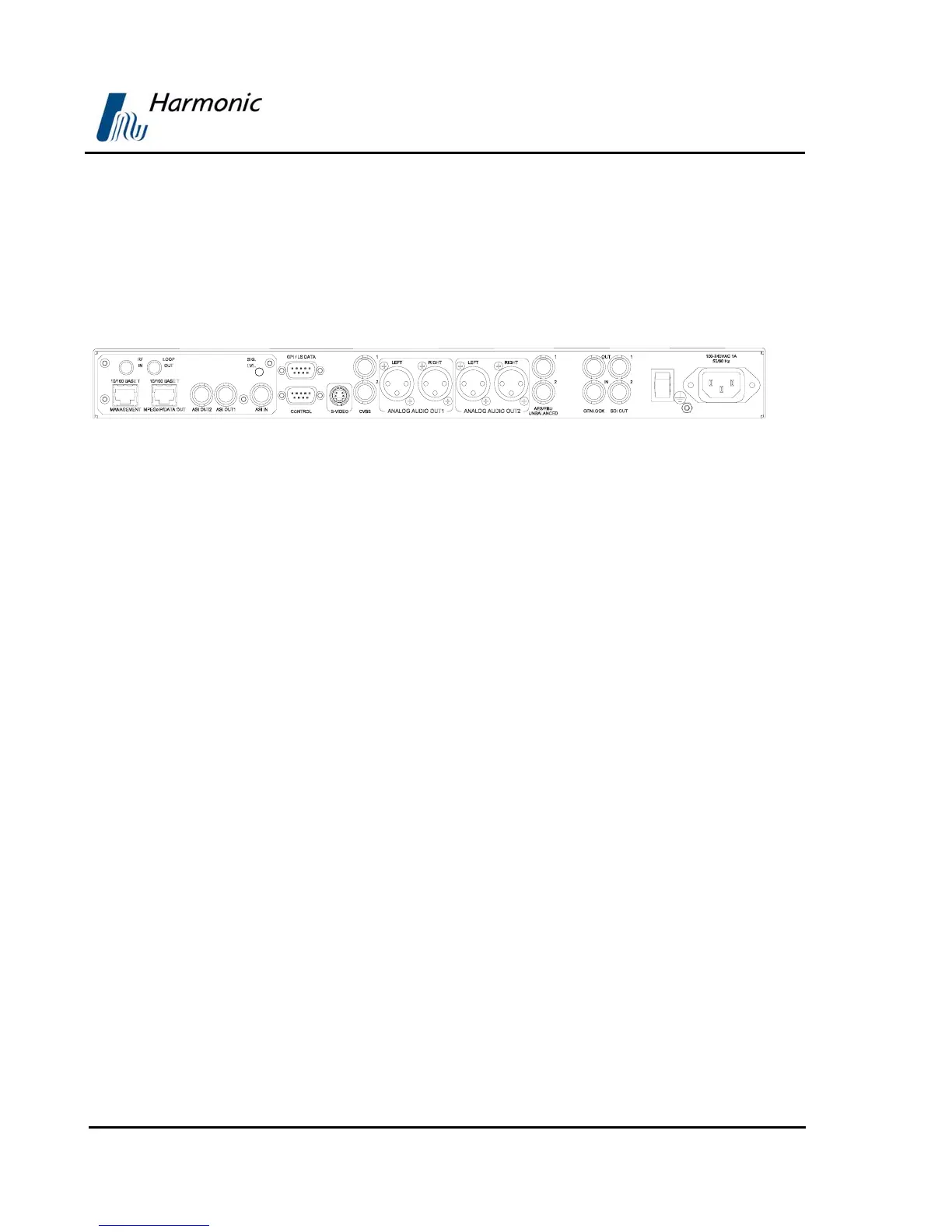

Figure 1-9: PVR 6020 Rear Panel
Basic Features
• 1 composite video - Broadcast
quality (upper connector)
• 1 composite video - Monitoring
quality (lower connector)
• 2 SDI interfaces
• Embedded VBI and up to 2 stereo
channels in SDI
• 2 activated analog-audio-stereo
balanced interfaces
• 2 activated AES/EBU-SPDIF audio-
unbalanced interfaces
• SNMP management (10/100 Base-T)
• Web-based management (10/100
Base-T)
• GPI
• Front panel A/V monitoring
connectors
Software-Licensed Features
• ASI Input
• Dual (identical) ASI outputs
• MPEG-over-IP output or IP data
output (MPE de-capsulation)
• Genlock input and loop-through
output
• Dolby Digital (AC-3) LT/RT
downmixing.
• Pro MPEG FEC
• PID and service filtering
• H.264 (One Program Only)
• RS-232 low speed data output
