Harmonic ProView PVR 6000 Series - Figure 1-14: PVR 6070 Rear Panel

User Manual
Overview
Page 1-16 (Rev. 4.1/ SW v1.60/ December 2006)
1.5.4.8. PVR 6070 Interfaces and Features
The PVR 6070 is a dual 4:2:0 decoder. The PVR-6070 family consists of three
composite video interfaces. The CVBS #1 connector is for the broadcast quality
video of decoder #1. The CVBS #2 is used for monitoring. The CVBS #3
connector is for broadcast quality video of decoder #2.
Figure 1-13 illustrates the PVR 6070 rear panel. The PVR 6070 basic features
and software-licensed features are also detailed.

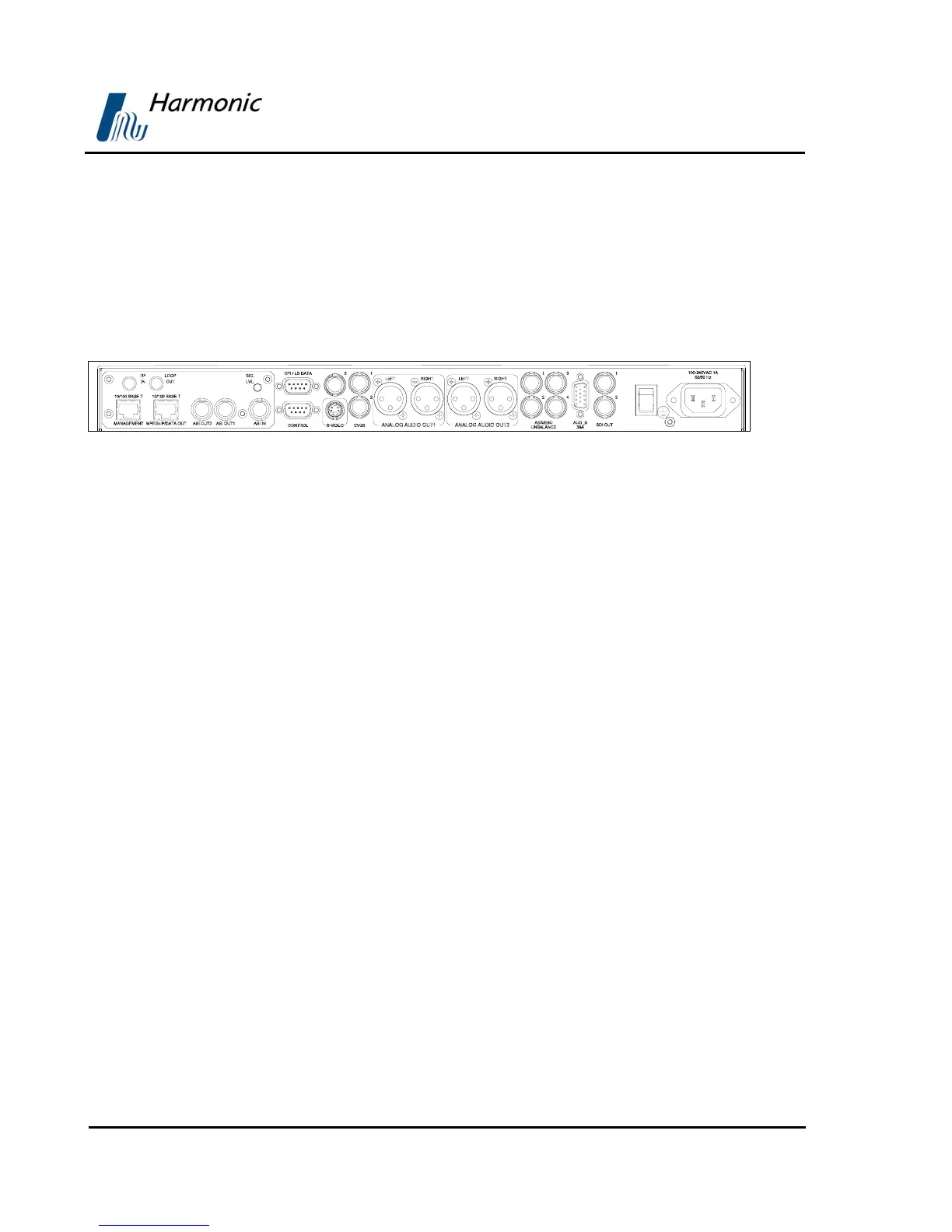

Figure 1-14: PVR 6070 Rear Panel
Basic Features
• 3 composite video interfaces (2 for
broadcast, 1 for monitoring)
• 2 SDI interfaces
• Embedded VBI and up to 4 stereo
channels in SDI
• 4 active analog-audio-stereo
balanced interfaces
• 4 active AES/EBU-SPDIF audio
unbalanced interface
• SNMP management (10/100
Base-T)
• Web-based management (10/100
Base-T)
• GPI
Software-Licensed Features
• ASI input
• Dual (identical) ASI output
• MPEG-over-IP output or IP data
output (MPE de-capsulation)
• Dolby Digital (AC-3) LT/RT
downmixing
• Linear PCM (SMPTE 302M 2000),
Dolby-E pass-through.
• Pro MPEG FEC
• H.264 (One program only)
• PID and service filtering
• RS-232 low speed data output
