PVR 6000 Series
Professional Integrated Receiver Decoders
Page 1-17
NOTES
This model requires a breakout cable to connect to the 3rd and 4th analog
stereo pairs.
In case of power failure or system shutdown, ASI OUT 1 output will become ASI
loop-through. Use ASI OUT 1 output for cascading a chain of PVR 6000.
1.5.4.9. PVR 6080 Interfaces and Features
The PVR 6080 is a dual 4:2:0 decoder. The PVR-6080 family consists of three
composite video interfaces. The CVBS #1 is for service broadcast video quality.
The CVBS #2 is for service monitoring and OSD video quality. The CVBS #3 is
for additional service broadcast video quality.
Figure 1-15 illustrates the PVR 6080 rear panel. The PVR 6080 basic features
and software-licensed features are also detailed.

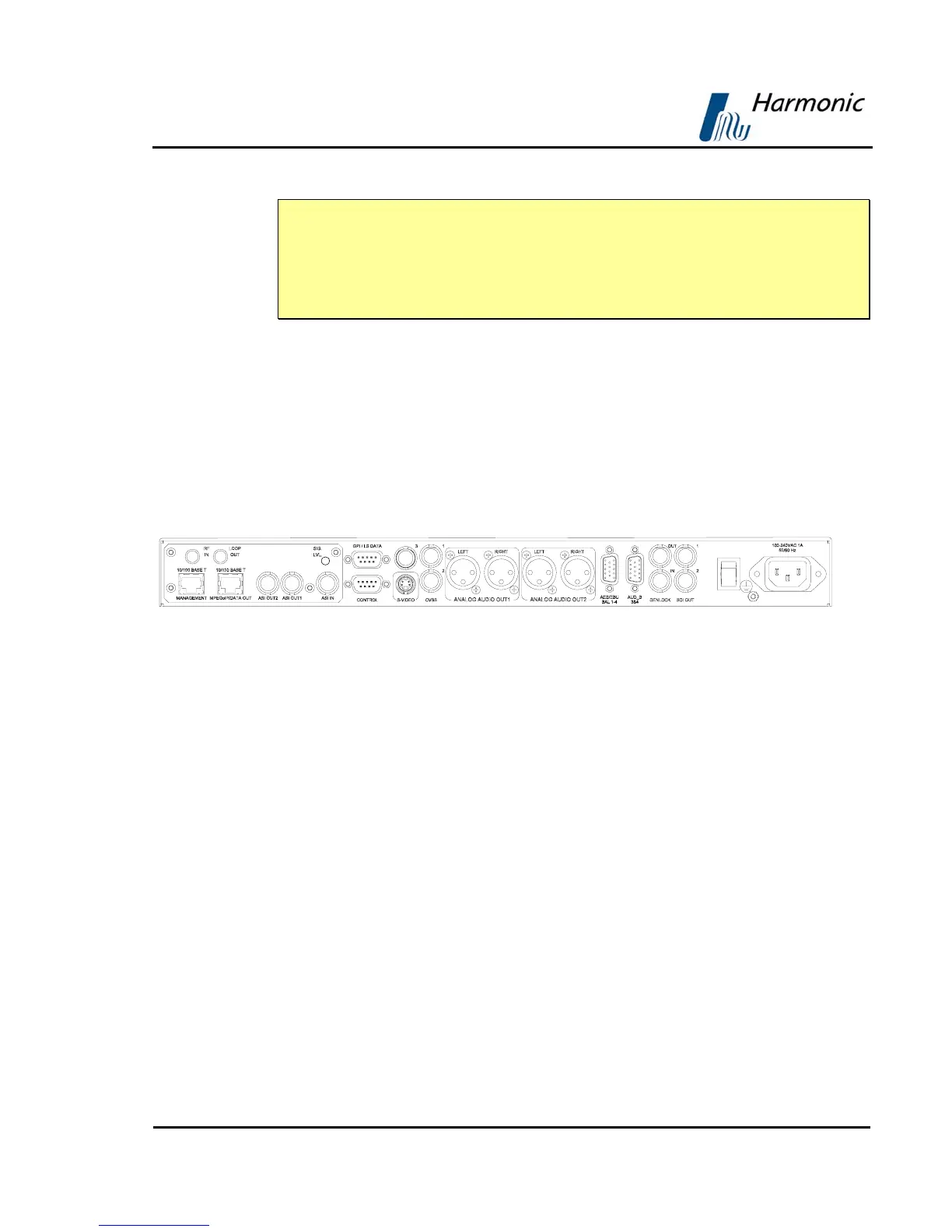

Figure 1-15: PVR 6080 Rear Panel
Basic Features
• 3 composite video interfaces (2 for
broadcast, 1 for monitoring)
• 2 SDI interfaces
• Embedded VBI and up to 4 stereo
channels in SDI
• 4 active analog-audio-stereo
balanced interfaces
• 4 active AES/EBU-SPDIF audio
balanced interfaces
• SNMP management (10/100 Bas-
T)
• Web-based management (10/100
Base-T)
Software-Licensed Features
• ASI input
• Dual (identical) ASI output
• MPEG-over-IP output or IP data
output (MPE de-capsulation)
• Genlock input and loop-through
output
• Dolby Digital (AC-3) LT/RT
downmixing
• Linear PCM (SMPTE 302M 2000),
Dolby-E pass-through
• Pro MPEG FEC
• H.264 (One program only)
• PID and service filtering
