1.5.4.2. PVR 6010 Interfaces and Features
The PVR 6010 is a single 4:2:0 decoder IRD. The PVR 6010 family consists of
two composite video interfaces. The CVBS #1 connector is used for broadcast
quality video and the CVBS #2 connector is used for monitoring.

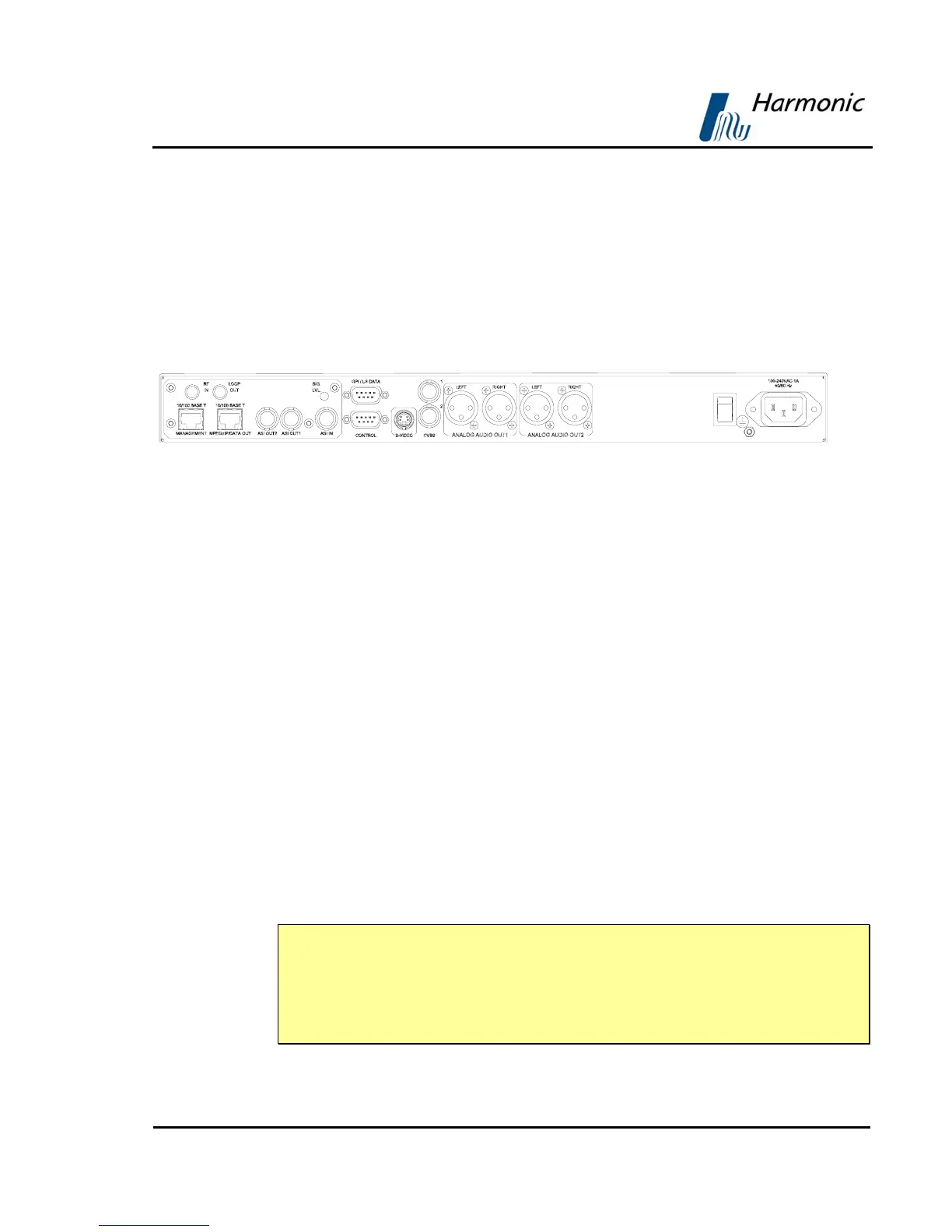

Figure 1-8 illustrates the PVR 6010rear panel. The PVR 6010basic features and
software-licensed features are also detailed.
Figure 1-8: PVR 6010Rear Panel
Basic Features
• 1 composite video - Broadcast
quality (upper connector)
• 1 composite video - Monitoring
quality (lower connector)
• 2 active analog – audio - stereo
balanced interfaces
• SNMP management (10/100 Base-T)
• Web based management
(10/100Base-T)
• GPI
Software-Licensed Features
• ASI Input
• Dual (identical) ASI outputs
• MPEG-over-IP output or IP data
output (MPE de-capsulation)
• Dolby Digital (AC-3) LT/RT
downmixing
• Genlock input and loop-through
output
• Pro MPEG FEC
• IP Dual input (link and source
redundancy
• PID and service filtering
• RS-232 low speed data output
NOTES
In the case of power failure or system shutdown, ASI OUT 1 output will become
ASI loop-through. Use ASI OUT 1 output for cascading a chain of PVR 6000.
The Russian SECAM D/K (composite video only) is available only through special
orders.
