NOTES
This model requires a breakout cable to connect to the 3
rd
and 4
th
analog stereo
pairs.
In the case of power failure or system shutdown, ASI OUT 1 output will become
ASI loop-through. Use ASI OUT 1 output for cascading a chain of PVR 6000.
1.5.4.6. PVR 6050 Interfaces and Features
The PVR 6050 is a single 4:2:2 decoder. The PVR-6050 family consists of two
composite video interfaces. Both CVBS interfaces are for service broadcast video
quality.

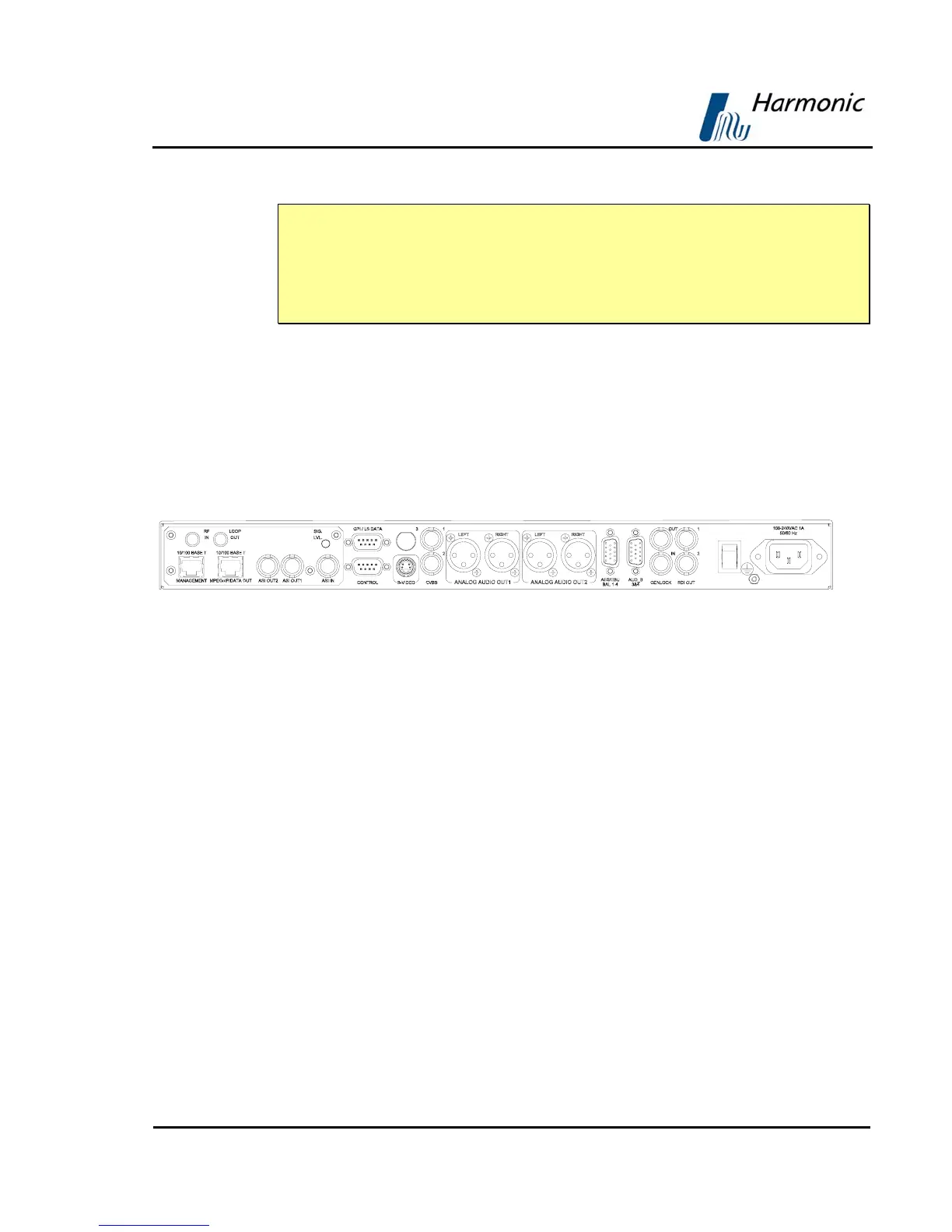

Figure 1-12 illustrates the PVR 6050 rear panel. The PVR 6050 basic and
software-licensed features are also detailed.
Figure 1-12: PVR 6050 Rear Panel
Basic Features
• 2 composite video interfaces – Broadcast
quality
• 2 SDI interfaces
• Embedded VBI and up to 4 stereo
channels in SDI
• Decoding 4:2:2 PP@ML (1.5–50 Mbps)
• 2 out of 4 active analog-audio-stereo
balanced interfaces
• 2 out of 4 active AES/EBU-SPDIF audio-
balanced interfaces
• Genlock input and loop-through output
• SNMP management (10/100 Base-T)
Software-Licensed Features
• ASI input
• Dual (identical) ASI output
• MPEG-over-IP output or IP data
output (MPE de-capsulation)
• 3
rd
Active analog stereo pair
• 4
th
Active analog stereo pair
• 3
rd
Active AES/EBU-SPDIF
• 4
th
Active AES/EBU-SPDIF
• Dolby Digital (AC-3) LT/RT
downmixing
• Linear PCM (SMPTE 302M 2000),
Dolby-E pass-through
