NOTES
This model requires a breakout cable to connect to the AES/EBU interfaces.
In case of power failure or system shutdown, ASI OUT 1 output will become ASI
loop-through. Use ASI OUT 1 output for cascading a chain of PVR 6000
1.5.4.5. PVR 6040 Interfaces and Features
The PVR 6040 is a single 4:2:0/4:2:2 decoder. The PVR-6040 family consists
of two composite video interfaces. Both CVBS #1 and CVBS #2 connectors are
for broadcast quality video.

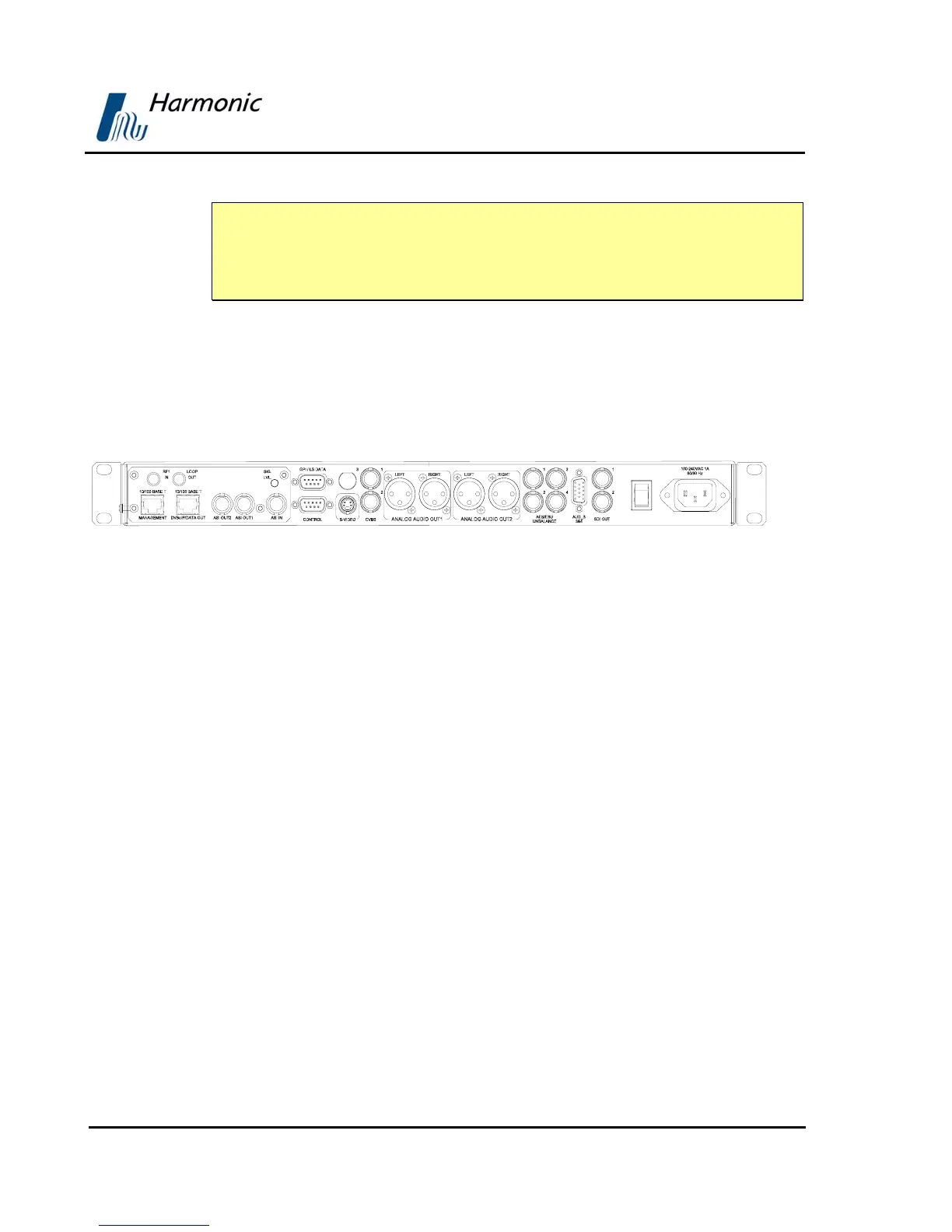

Figure 1-11 illustrates the PVR 6040 rear panel. The PVR 6040 basic and
software-licensed features are also detailed.
Figure 1-11: PVR 6040 Rear Panel
Basic Features
• 2 composite video interfaces –
Broadcast quality
• 2 SDI interfaces
• Embedded VBI and up to 4 stereo
channels in SDI
• Decoding 4:2:2 PP@ML (1.5–50 Mbps)
• 2 out of 4 active analog-audio-stereo
balanced interfaces
• 2 out of 4 active AES/EBU-SPDIF audio
unbalanced interfaces
• 1
ST
and 2
ND
active AES/EBU-SPDIF
• SNMP management (10/100 Base-T)
• Web-based management (10/100
Base-T)
• GPI
• Front panel A/V monitoring connectors
Software-Licensed Features
• ASI input
• Dual (identical) ASI output
• MPEG-over-IP output or IP data output (MPE
de-capsulation)
• 3
RD
Active analog stereo pair
• 4
TH
Active analog stereo pair
• 3
RD
Active AES/EBU-SPDIF
• 4
TH
Active AES/EBU-SPDIF
• Dolby Digital (AC-3) LT/RT downmixing
• Linear PCM (SMPTE 302M 2000), Dolby-E
pass-through
• Pro MPEG FEC
• IP Dual input (link and source redundancy
• PID and service filtering
• RS-232 low speed data output
