Harmonic ProView PVR 6000 Series - Figure 2-9: 9-Pin Male Connector Pin Numbering

User Manual
Installation
Page 2-10 (Rev. 4.1/ SW v1.60/ December 2006)

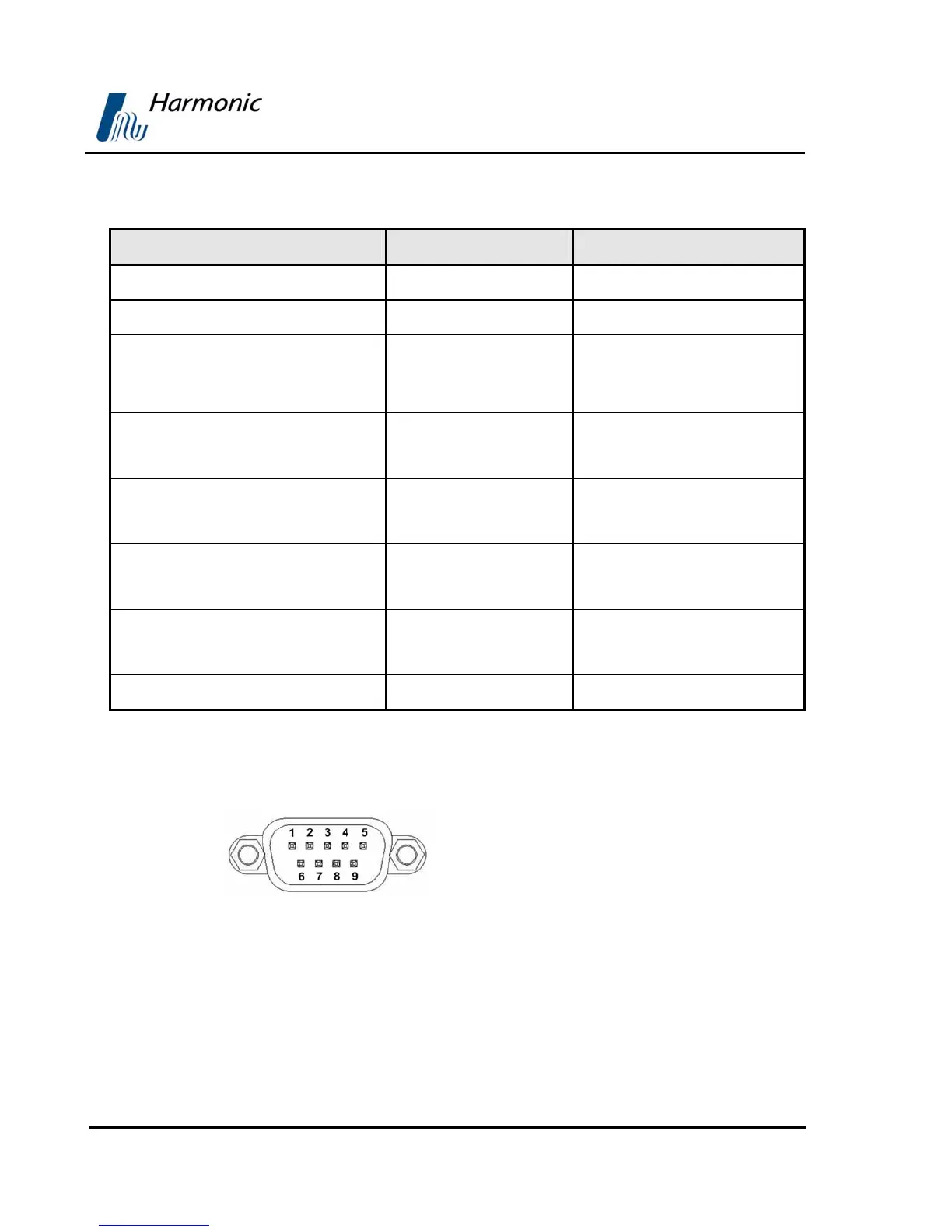

Table 2-1: PVR 6000 Rear Panel – Connectors and Cables
INTERFACE CONNECTOR TYPE CABLE TYPE
Data Output (RS-232/RS-422) 9 PIN D-Type Serial Cable
Control (RS-232/RS-485) 9 PIN D-Type Serial Cable
Audio Balanced 3 & 4
600 Ω D-sub 15p to
4XLR
Breakout Cable
204346 (Harmonic Inc.
material)
AES/EBU 1-4 Unbalanced
75 Ω 4xBNC or
75 Ω D-sub 15p
BNC Cable
ASI in/out1/out2
75 Ω BNC
RG-59
RG11 A/U (recommended)
Genlock In
75 Ω BNC
RG-59
RG11 A/U (recommended)
Genlock Out
75 Ω BNC
RG-59
RG11 A/U (recommended)
SDI out 1 &2
75 Ω BNC
RG-59
The ProView™ PVR 6000 supports terminal-control from a standard PC through a
serial RS-232/RS-485 connector.
Figure 2-9 illustrates the Control Interface and Low Speed Data/GPI 9-pin male
connectors pin numbering.
Figure 2-9: 9-Pin Male Connector Pin Numbering
