1.5.4.7. PVR 6060 Interfaces and Features
The PVR 6060 is a dual 4:2:0 decoder. The PVR-6060 family consists of three
composite video interfaces. The CVBS #1 connector is for the broadcast quality
video of decoder #1. The CVBS #2 is used for monitoring. The CVBS #3
connector is for the broadcast quality video of decoder #2.
Figure 1-13 illustrates the PVR 6060 rear panel. The PVR 6060 basic and
software-licensed features are also detailed.

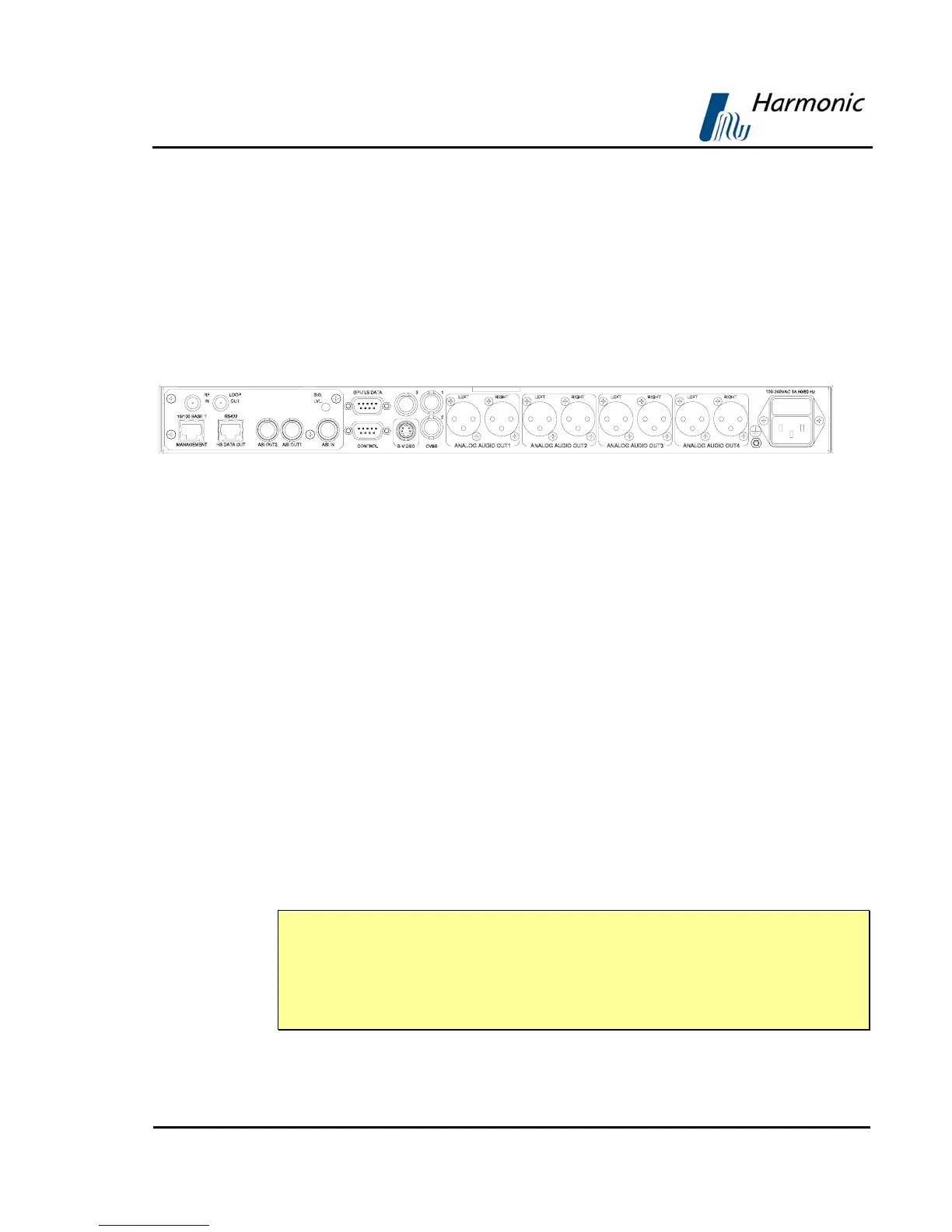

Figure 1-13: PVR 6060 Rear Panel
Basic Features
• 1 composite video for program 1- Broadcast
quality (upper-right connector)
• 1 composite video for program 2 -
Broadcast quality (upper-left connector)
• 1 composite video for program 1-
Monitoring quality (lower connector)
• 4 active analog-audio-stereo balanced
interfaces
• SNMP management (10/100 Base-T)
• Web-based management (10/100 Base-T)
• RS-422 high speed data output
• GPI
Software Licensed Features
• ASI input
• Dual (identical) ASI output
• Dolby Digital (AC-3) LT/RT
downmixing
• H.264 (One program only)
• RS-232 low speed data output
• RS-422 high speed data output
NOTE
In the case of power failure or system shutdown, ASI OUT 1 output will become
ASI loop-through. Use ASI OUT 1 output for cascading a chain of PVR 6000.
The Russian SECAM D/K (composite video only) is available only through special
orders.
