5-44 888-2629-200 10/6/10
WARNING: Disconnect primary power prior to servicing.
Section 5 Maintenance and Alignments
Maxiva ULX COFDM Series

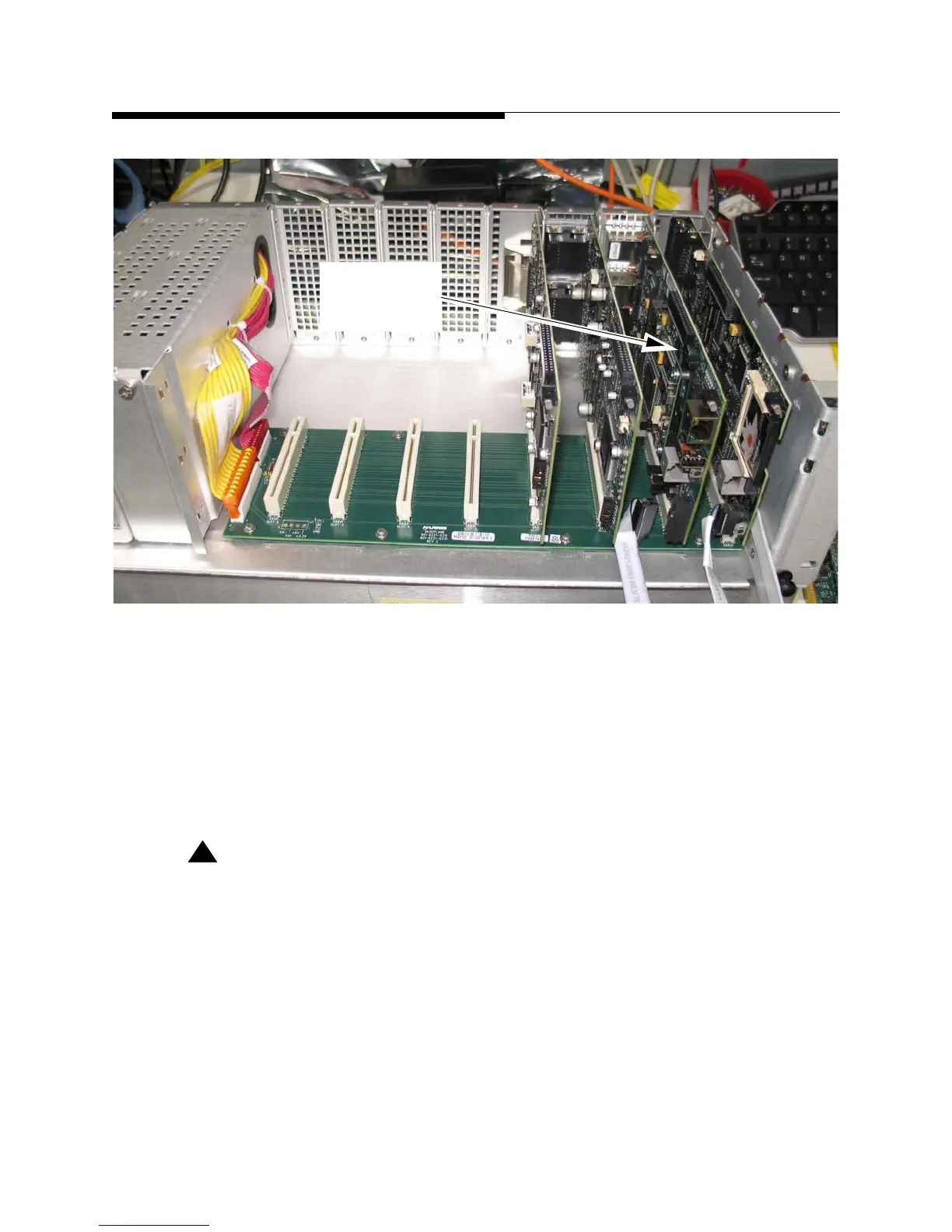

Figure 5-30 PCM Battery Holder (LAX version of TCU shown)
STEP 6 Use a small flat blade screw driver to gently pry open the battery hold
down clip while sliding the battery under the clip. The + side of the
battery must installed closest to the battery clip (i.e. the + side must
point away from the board) in the holder. The installed battery is shown
in
figure 5-31.
!
CAUTION:
SEE FIGURE 5-31. NOTE THAT THE + SIDE OF THE BATTERY SHOWS NEAR THE
CLIP.
PCM battery
holder
