Harris Maxiva ULX User Manual

10/6/10 888-2629-200 2-55
WARNING: Disconnect primary power prior to servicing.
Section 2 Installation
Maxiva ULX COFDM Series

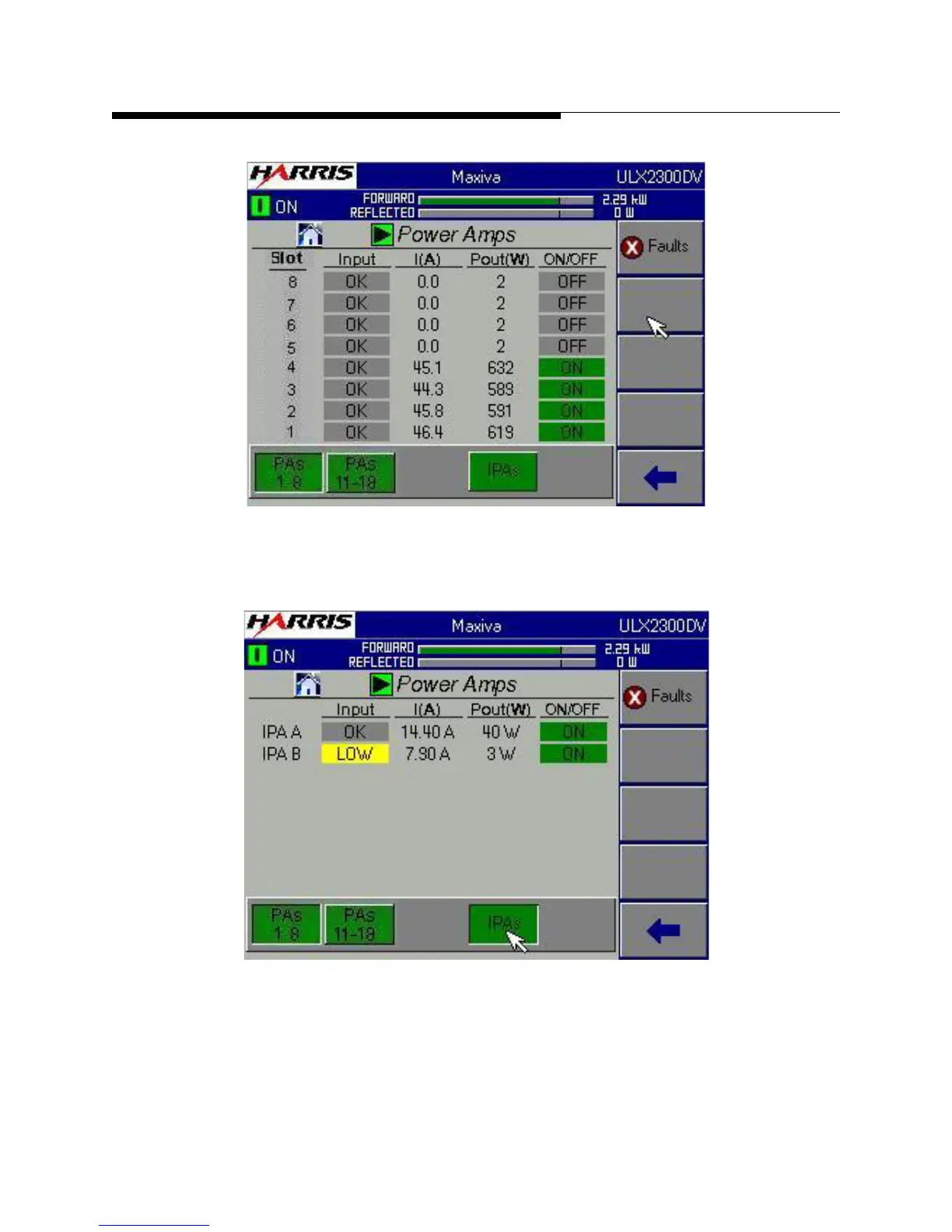

Figure 2-15 Power Amps Screen
Figure 2-16 IPA Screen
STEP 8 See Figure 2-15 and Figure 2-16. All IPA’s and PA’s should show a
green (OK) or yellow (indicating low drive) status indication on the
GUI (Power Amps screens).
