11 Commissioning
96 PHLOX II Ignition Control System
Par. 1910 = 15 ° crank
The active fix ignition timing is displayed in Par. 3911
11.6.2 Speed- and load-dependant common ignition base timing
2 speed- and load- dependant common ignition base timing maps are available. The active
map can be selected by an hardwired digital input, which can be useful in case the engine
is supplied with various gas qualities.
Engine relative power
The common ignition base timing maps use engine speed and relative power as reference
values. The relative power can be calculated in 2 ways:
With a Measured Power sensor:
Par. 5231 = 0
1232] [Par. RatedPower
100 2918] [Par.wer MeasuredPo
3232] [Par.wer RelativePo
With a manifold pressure sensor:
Par. 5231 = 1

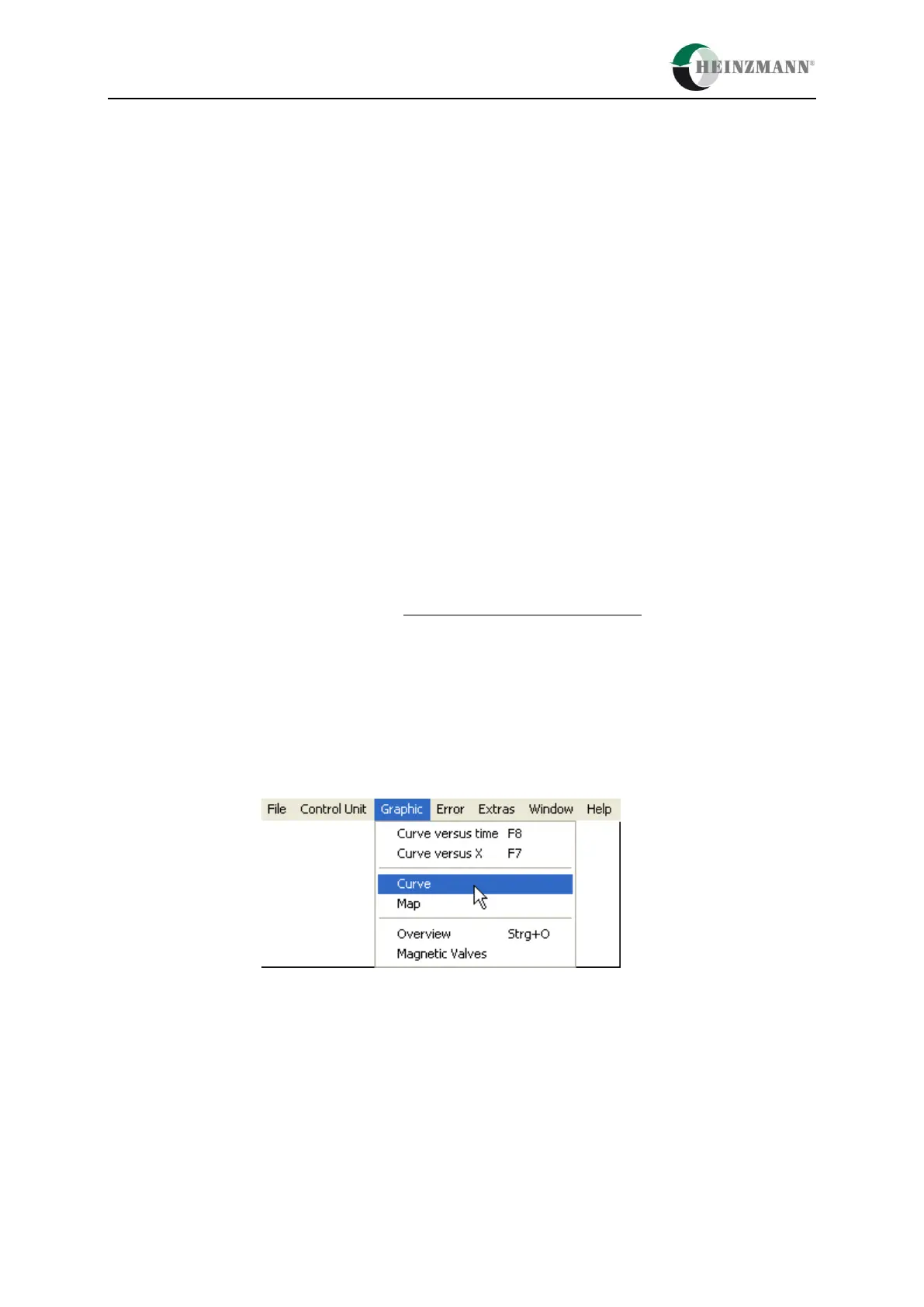

Configure the conversion curve Manifold pressure -> Power by using the Curve setting
window
