Heinzmann PHLOX II IC-08 User Manual

5 Sensors
PHLOX II Ignition Control System 15
5.3 Hall sensors
22
G
5/8"-24
L
16
A
B
C
SW 19
Pin configuration:
A = ground
B = supply
C = signal
Sense of rotation from pickup wheel
Distance to
measuring wheel
0,7-2 mm

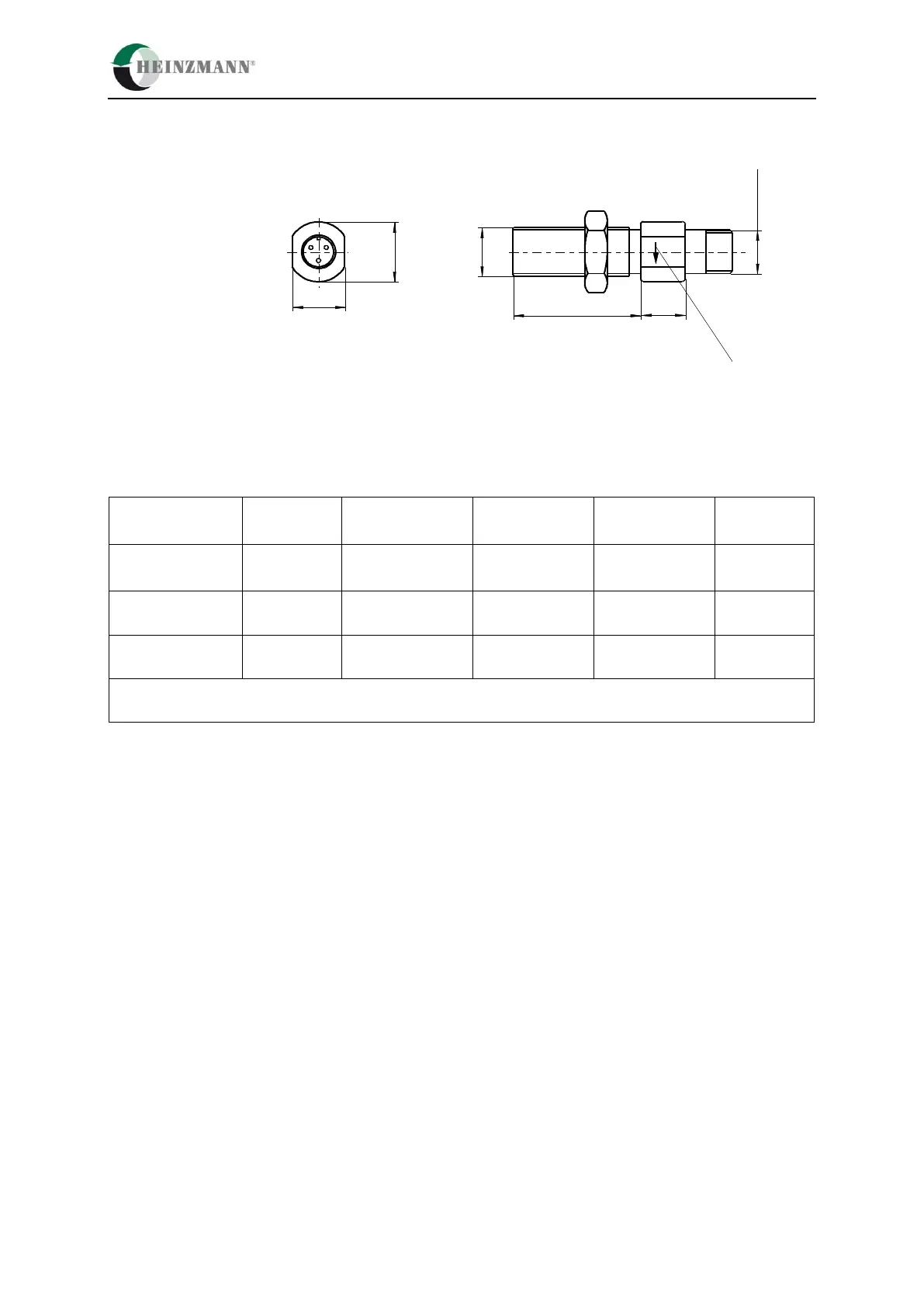

Figure 5: Hall sensors with contact plug
Type
Position
Thread length
L / (mm)
Thread size
G
EDV-No.
Remarks
HIA 32-46
crankshaft,
camshaft
46
M 18 × 1
600-00-052-00
HIA 32-76
crankshaft,
camshaft
76
M 18 × 1
600-00-060-02
standard
HIA 32-102
crankshaft,
camshaft
102
M 18 × 1
600-00-065-00
Corresponding plug: SV 6 - HIA - 3K (EDV- No.: 010-02-355-00)
Table 2: Hall sensors
