6 Installation
PHLOX II Ignition Control System 41
6.3.8 Requirements for installation of HV-part of ignition system PHLOX II
Grounding:
● The wires “JL” and “JR” must be connected to “-”-terminals of all ignition coils, Rail-construction and
to engine-block;
● Engine-block must be connected to PE;
● Ignition sytem PHLOX II is designed for work with ignition coils, that have a common connection
of primary- and secondary-winding at “-”-contact only.
Wire cross-sections:

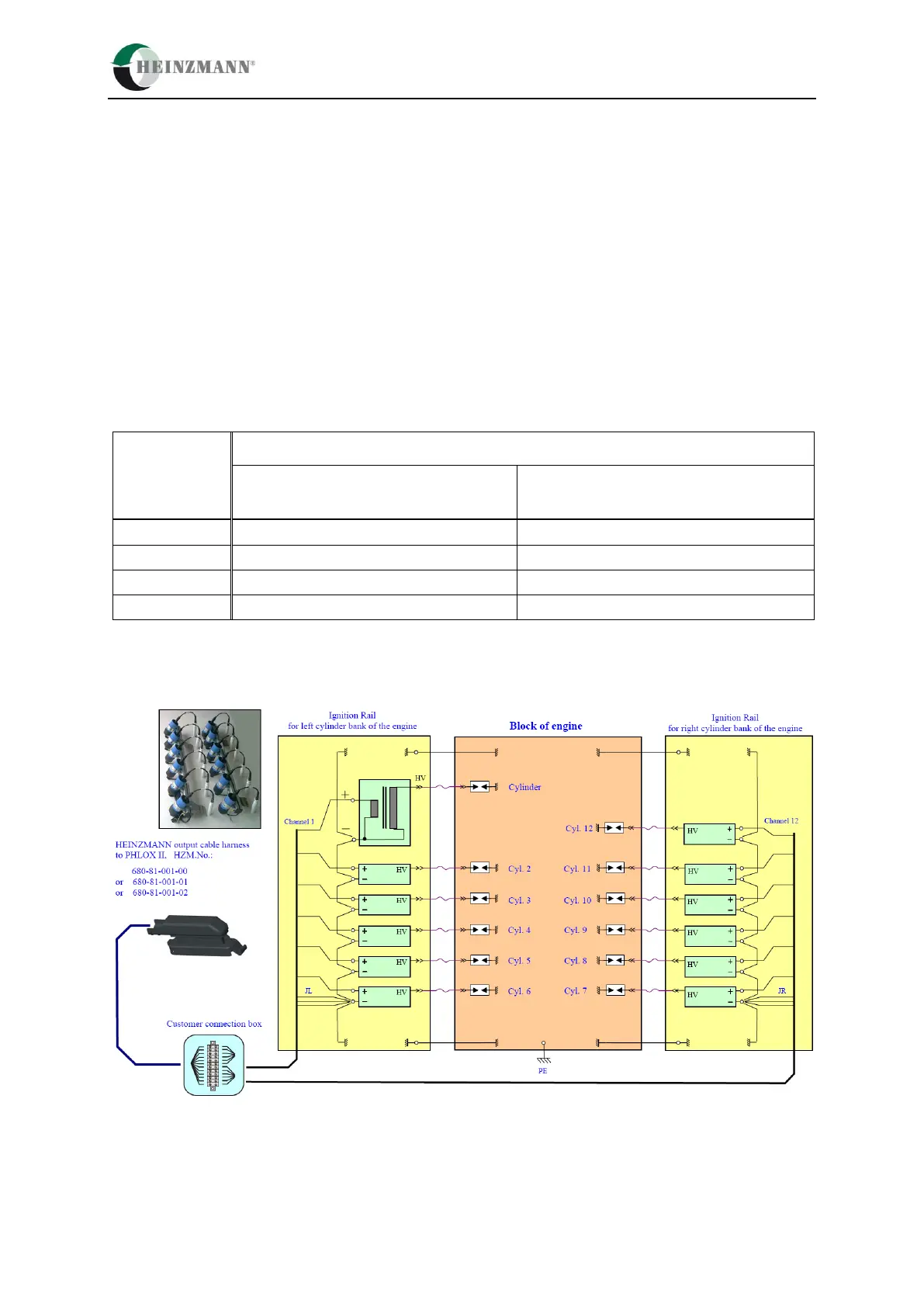

Example of proper connection:
Minimal wire cross-section, minimum:
Wire section (+) for each channel 1 - 16
Wire section (Gnd) for the 6 common pins
JL and JR group
