5 Sensors
PHLOX II Ignition Control System 17
5.5 Potentiometer
5.5.1 Setpoint Potentiometer SW 02 – 10m, (1 - turn)
Displacement angle approx. 312°
Resistance 5 kΩ
Temperature range -55 … +120 °C
Protection grade IP 00
EDV-No. 010-15-001-01
9,5
3/8" - 32 NEF - 2A
Ø 27
23
26

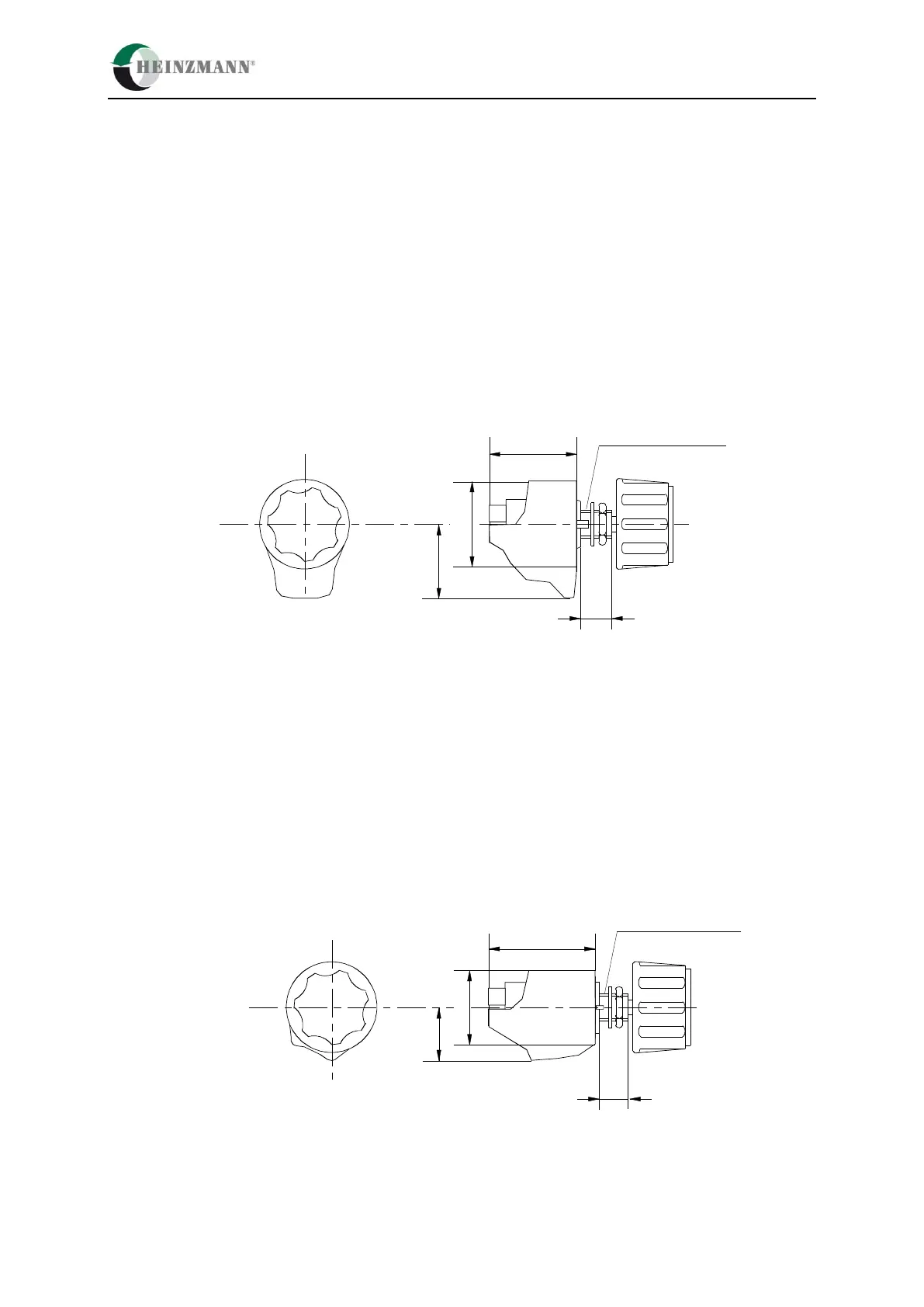

Figure 7: Potentiometer SW 02 - , 1- turn
5.5.2 Setpoint Potentiometer SW 02 - 10 – K, (10 - turn)
Resistance 5 kΩ
Temperature range -55 … +120 °C
Protection grade IP 00
EDV-No. 010-15-001-02
8,8
3/8" - 32 NEF - 2A
Ø 23
17
32
Figure 8: Potentiometer SW 02 - , 10-turn
