Heinzmann PHLOX II IC-08 User Manual

5 Sensors
16 PHLOX II Ignition Control System
5.4 Boost pressure sensor
Measuring range 0 … 2 bar,
0 – 5 bar
Over pressure 4 bar
10 bar
Supply voltage 12 … 36 V (DC)
Output signal 4 … 20 mA
0 … 5 V (DC)
Storage temperature -55 … +100 °C
Ambient temperature -40 … +100 °C
Protection grade IP 65
Vibration < 2 g, 5 – 500 Hz
Shock < 50 g, 11 ms half-sine wave
ConnectionDIN 43650-A or terminal strip, 2-line system
89
12
2
G3/8"
Ø 30
124,7
30,5
Ø 19
PG9
SW 24
33,5
53

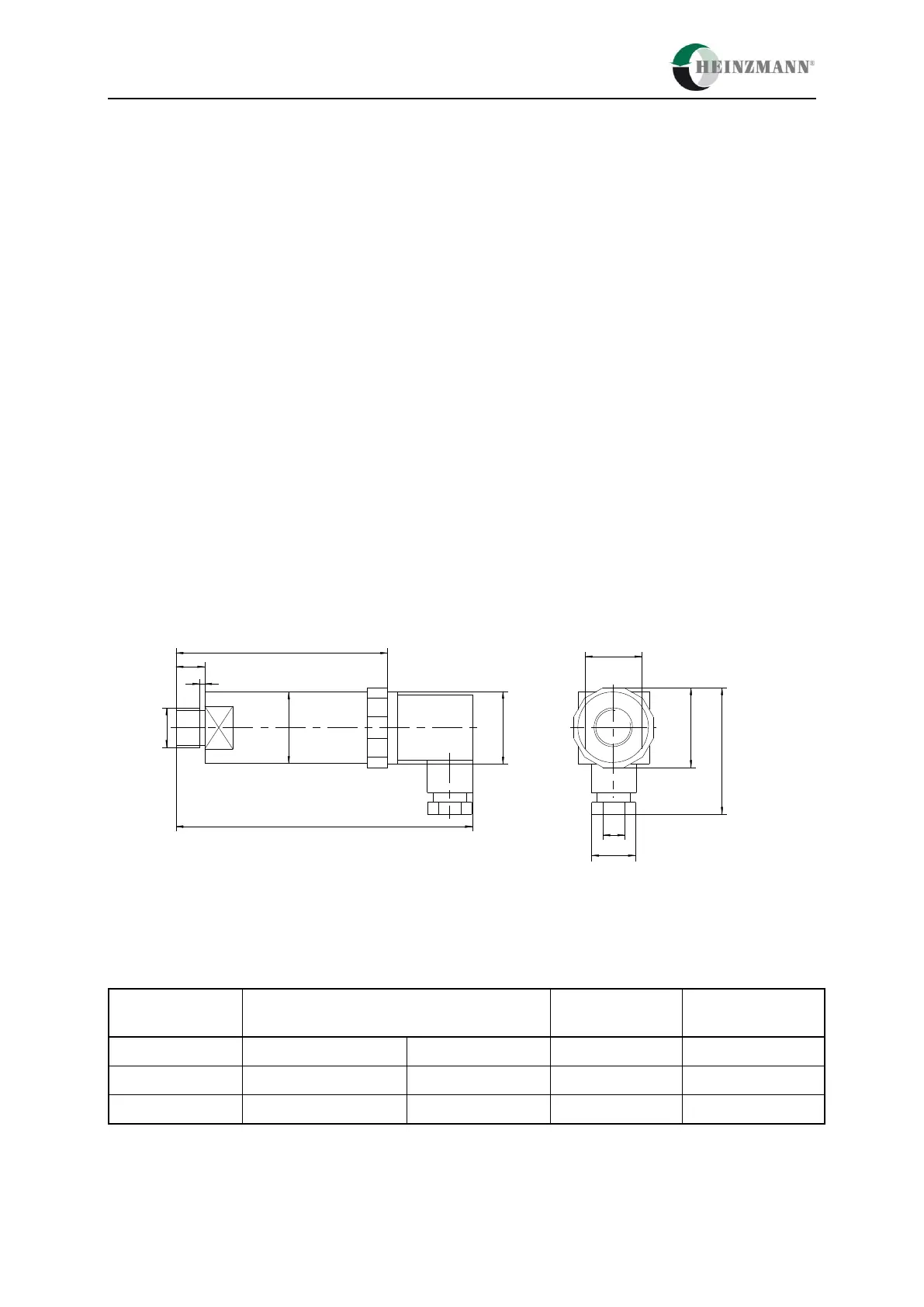

Figure 6: Boost pressure sensor with contact plug
The boost pressure sensors are also available in a version with terminal strip.
Type
Range
EDV-No.
Remarks
DSL 01-2
0.2 … 2 bar abs.
4 … 20 mA
600-00-057-00
DSL 01-5
0.2 … 5 bar abs.
4 … 20 mA
600-00-057-01
DSL
0.5 … 4.5 bar abs
0.5 … 4.5 V
600-00-095-00
standard
Table 3: Boost pressure sensors
