11 Commissioning
PHLOX - Ignition Control System 75
11.2 Engine configuration
The selected engine configuration will only be activated after saving all pa-
rameters and resetting the control unit
11.2.1 Predefined engine configurations

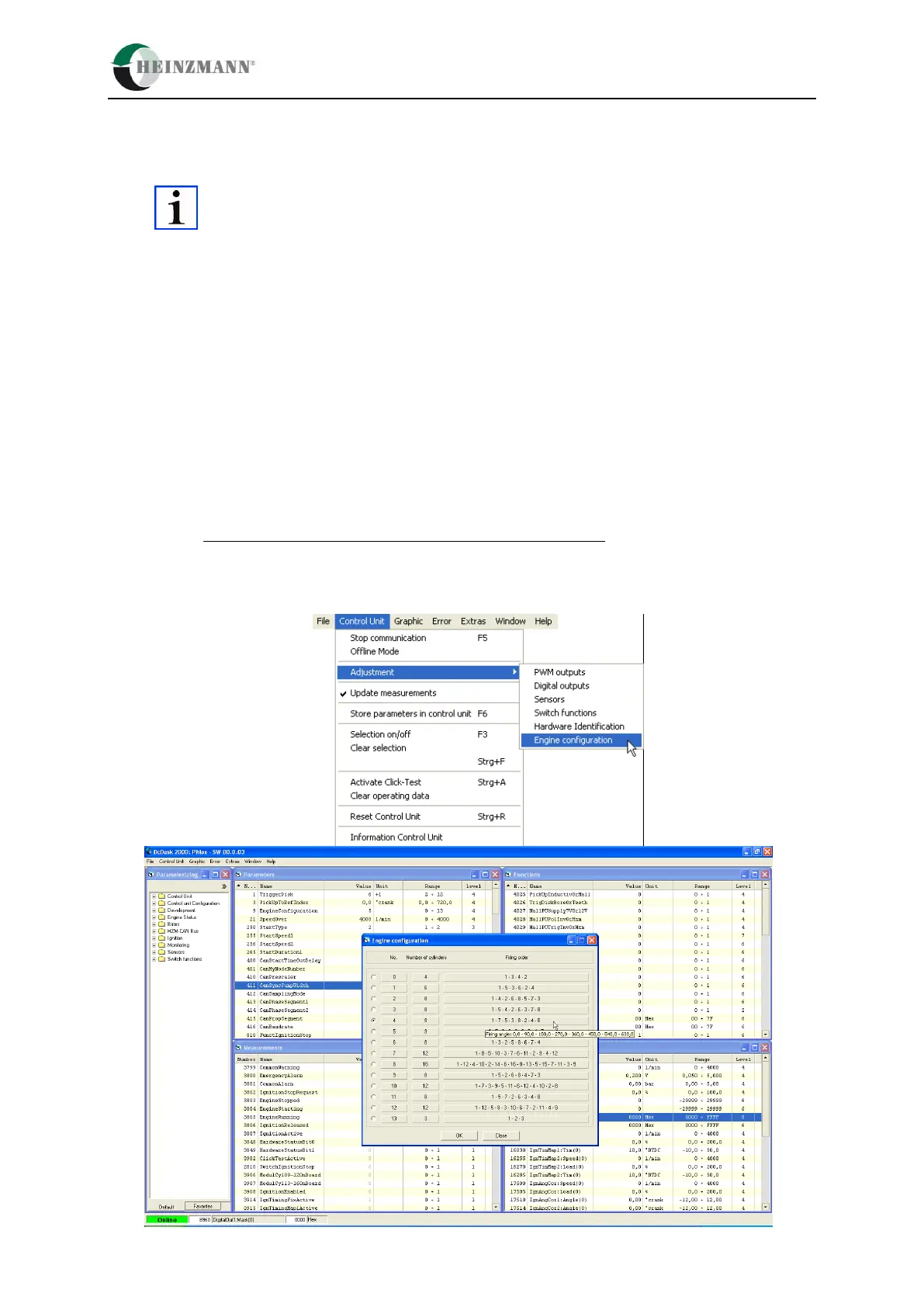

To select a predefined engine firing order, Par. 4100 EngCfgManOrFix shall be set to 0. Open
the menu Control Unit -> Adjustment -> Engine Configuration and select the correct engine con-
figuration. Note: moving the mouse over the different configurations will display the TDC angles
of all cylinders.
Example: Configuration for firing order 1-7-5-3-8-2-4-6 and TDC angles 0-90-180-270-
360-450-540-630 deg crank
Number Parameter Value Unit
4100 EngCfgManOrFix 0
