11 Commissioning
PHLOX - Ignition Control System 111
11.11 Ignition diagnostics
The ignition module continuously monitors the charge process of the integrated capacitor
before ignition as well as the primary and secondary circuits during ignition. The following
results are displayed for each cylinder:
- Measurement of the energy stored in the capacitor before ignition [Par. 13600-13615]
- Duration of the charge process [Par. 13700-13715]
- Maximum available duration for the charge process [13750-13765]
- Spark duration [Par. 13650-13665]

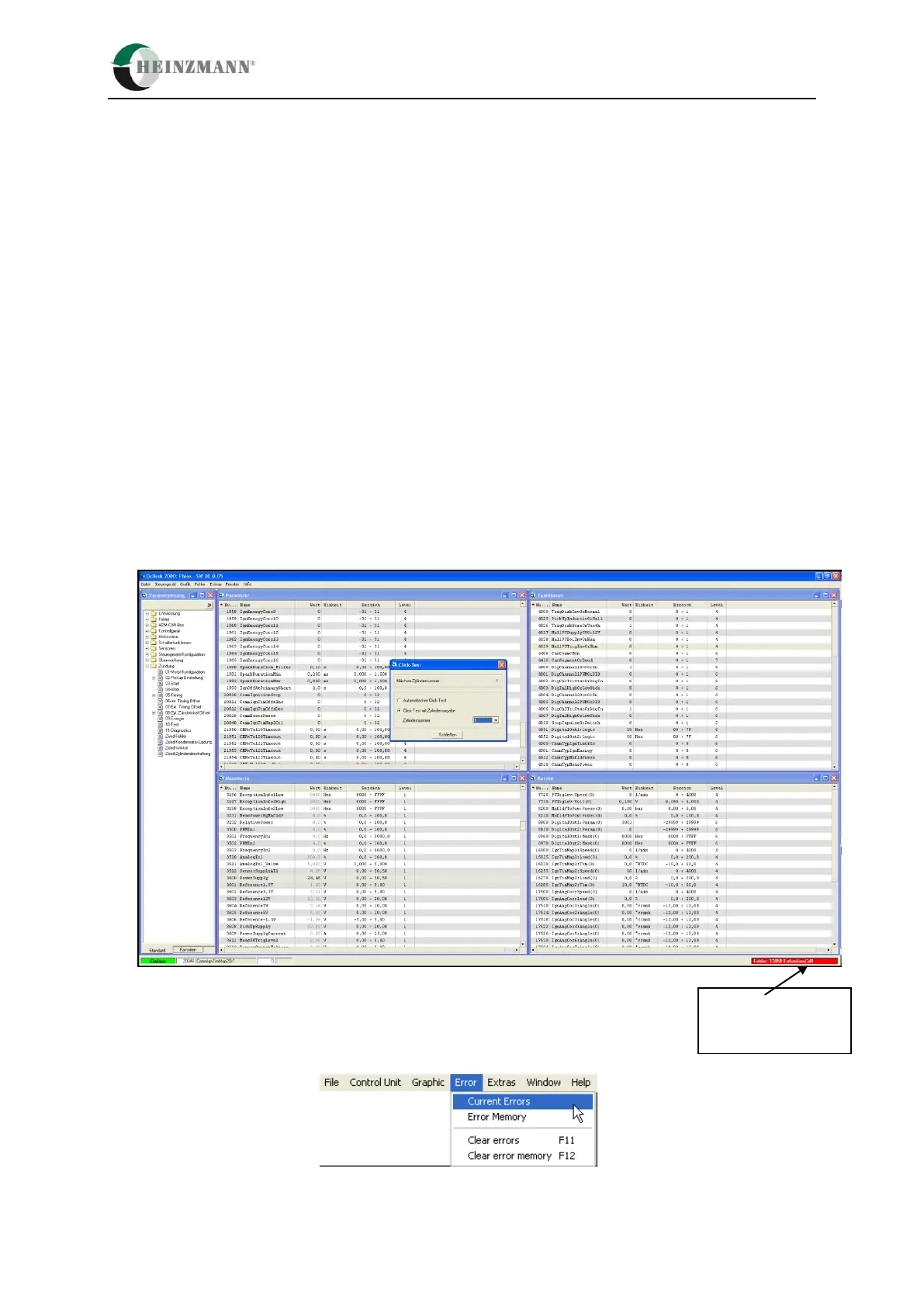

Should an error occur, an error message [Par. 13050-13065] is displayed for the relevant
cylinder. Details can be found in the current errors window. The different possible error
types are listed below. Note: as the measured spark duration is taken as part of diagnostics,
it is recommended that the filter is set to this measurement [Par. 1990], to a value higher
than 1s to avoid false error messages. A delay can be applied on the secondary diagnostics
(secondary open / short, spark duration low / high) by configuring Par. 1994.
Error detected
for cylinder #1
